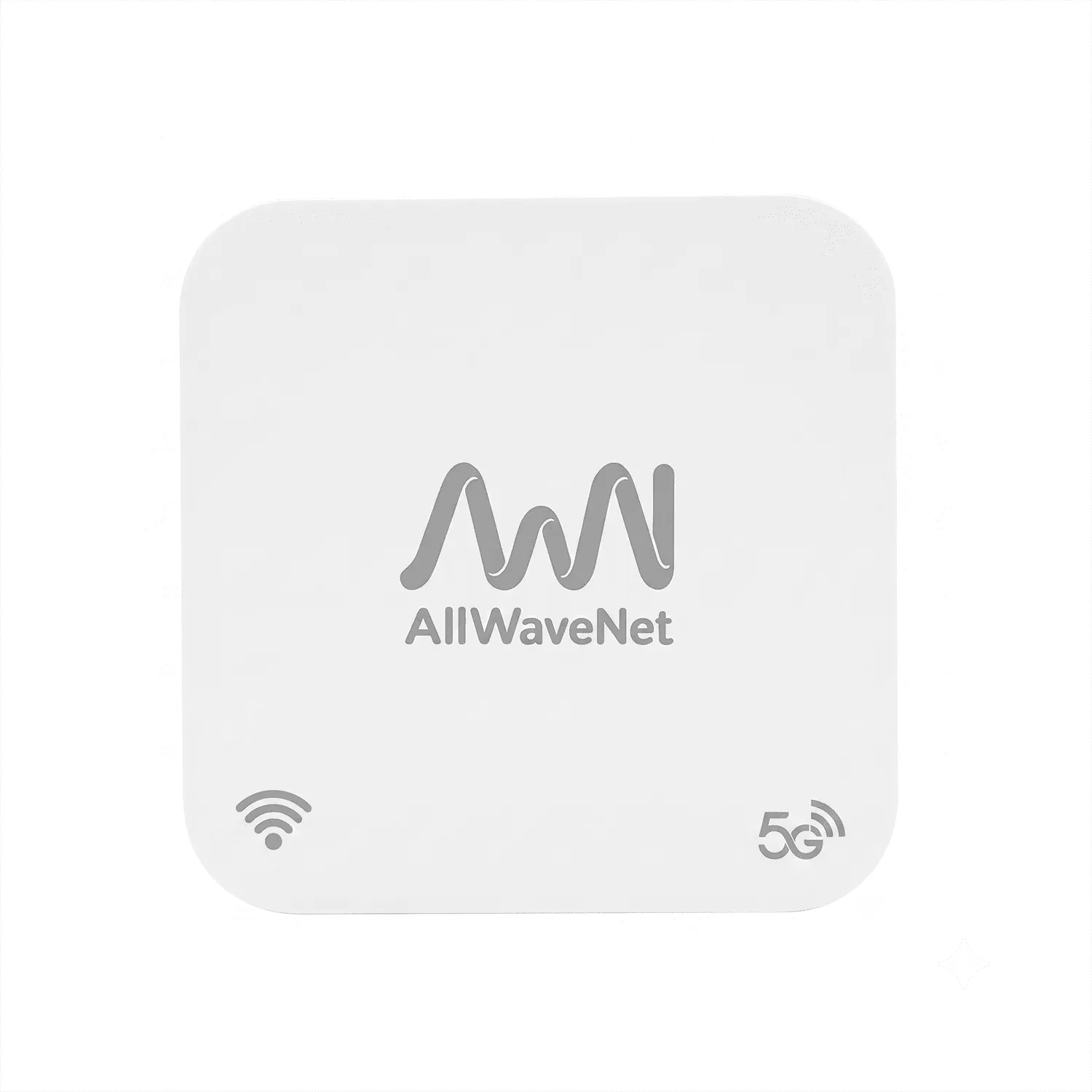

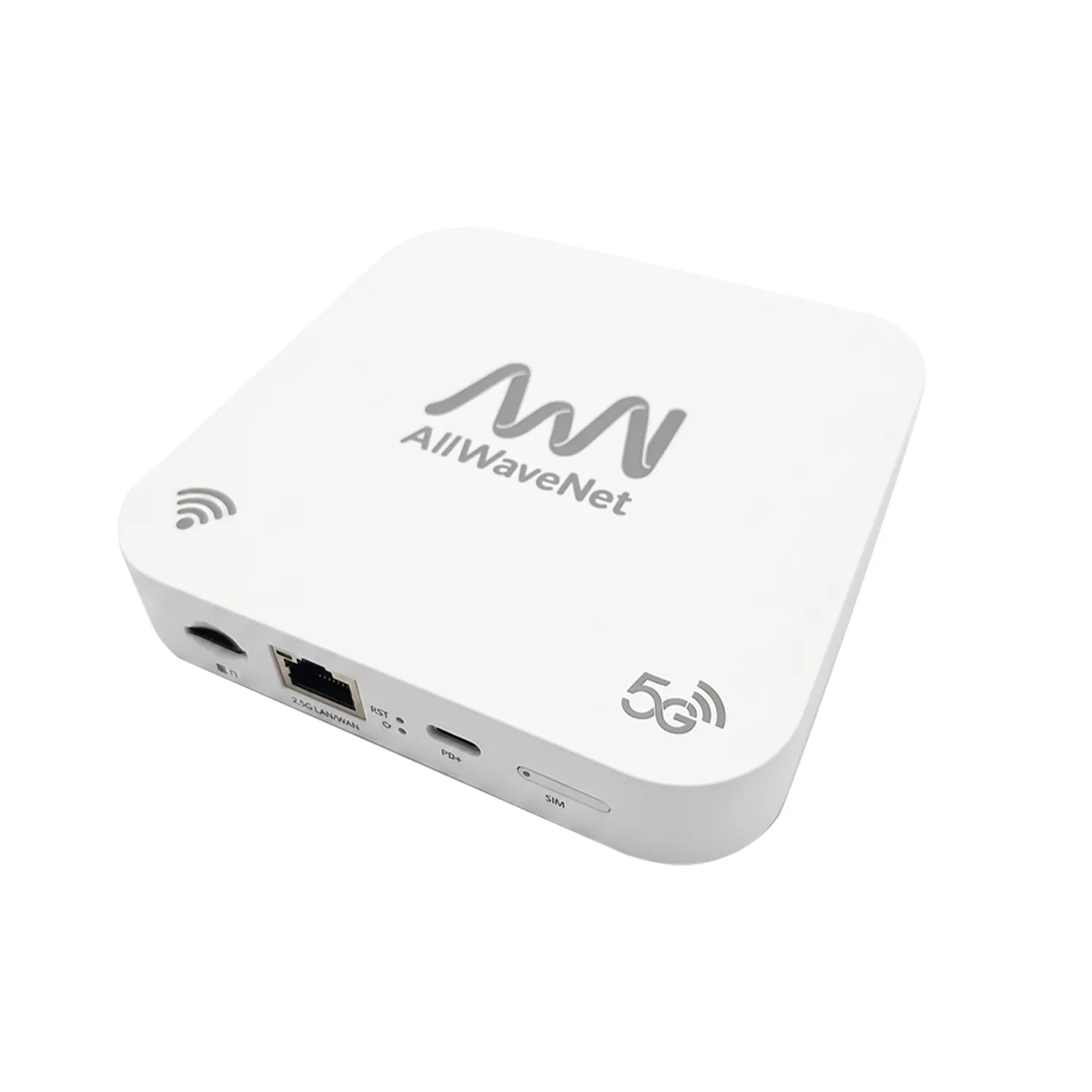

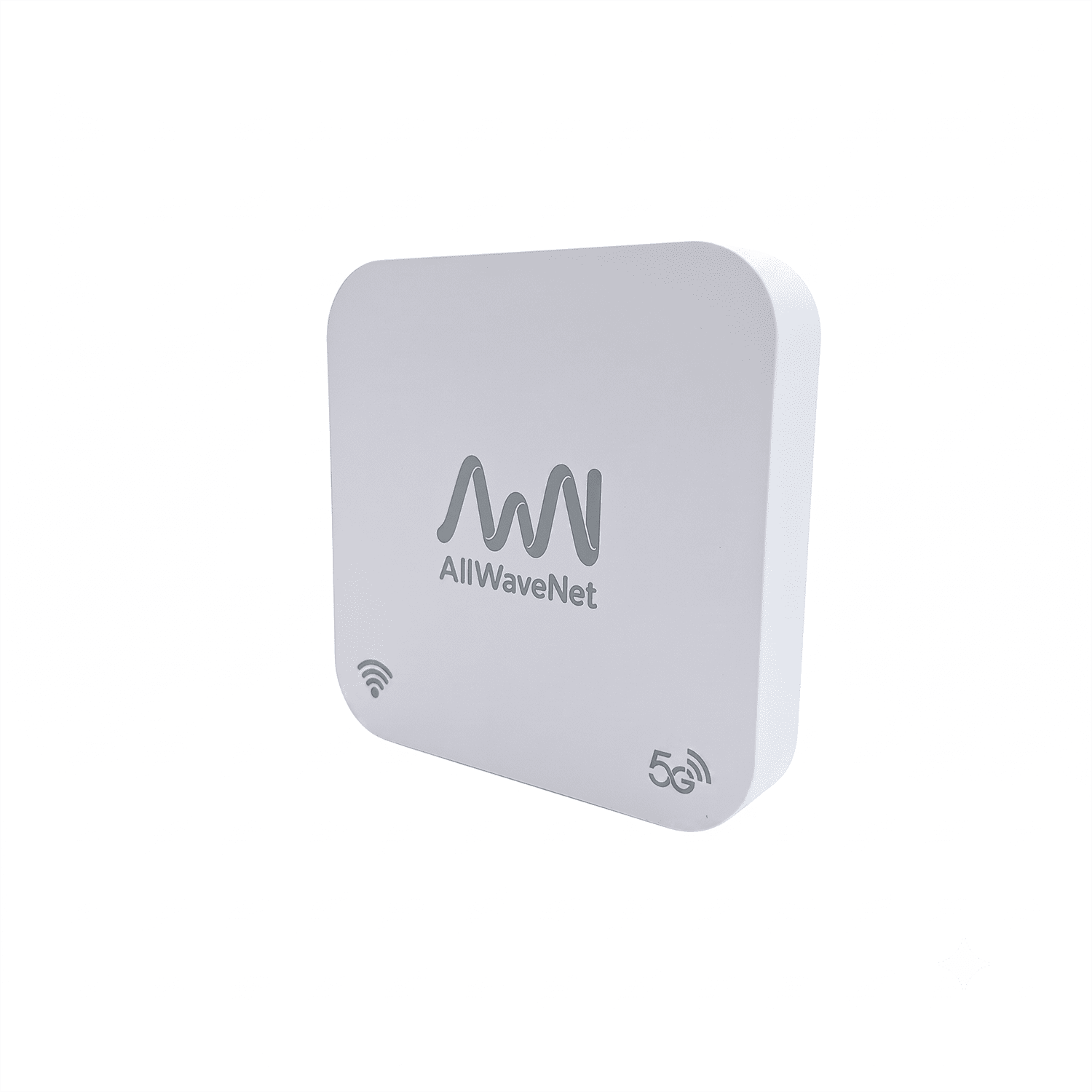

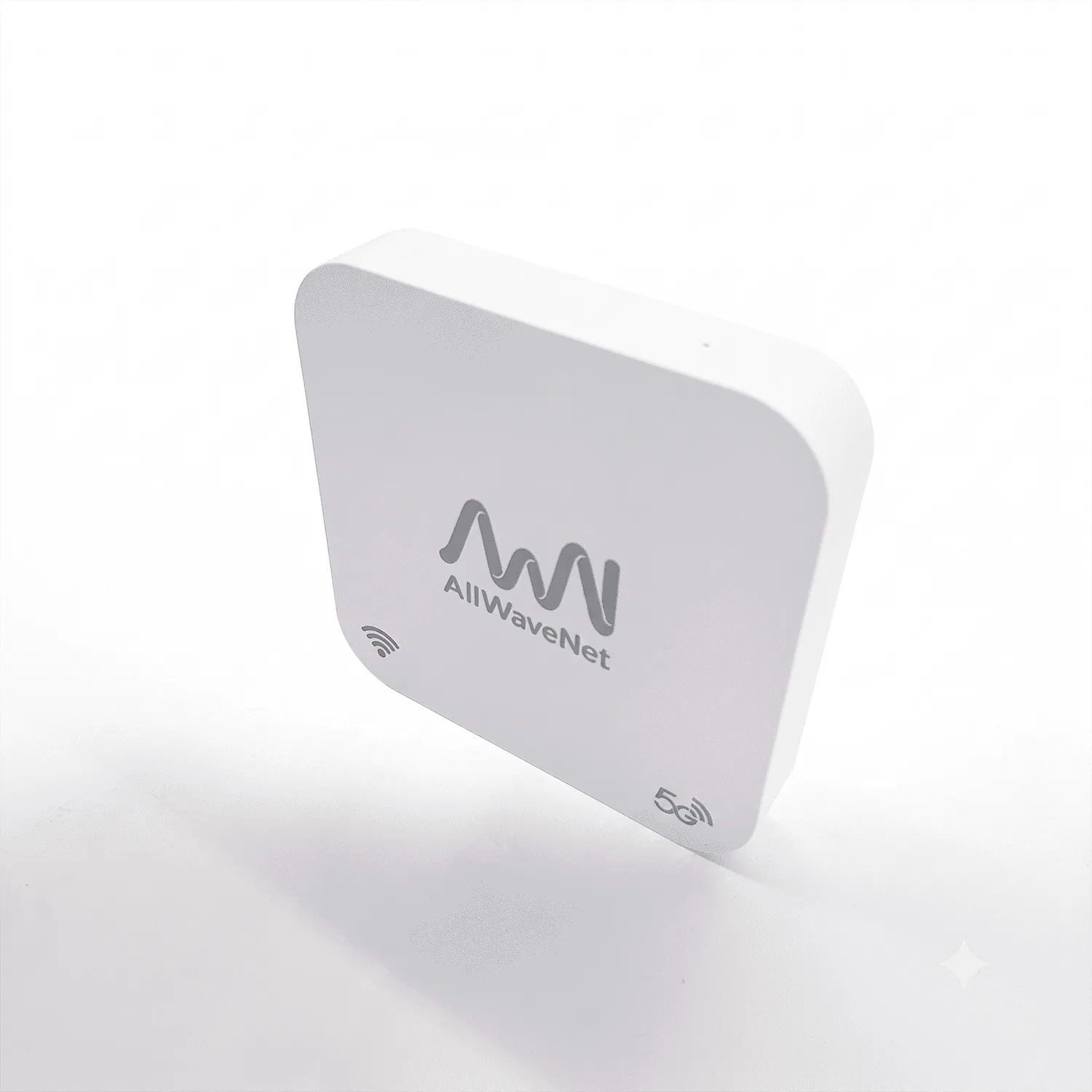

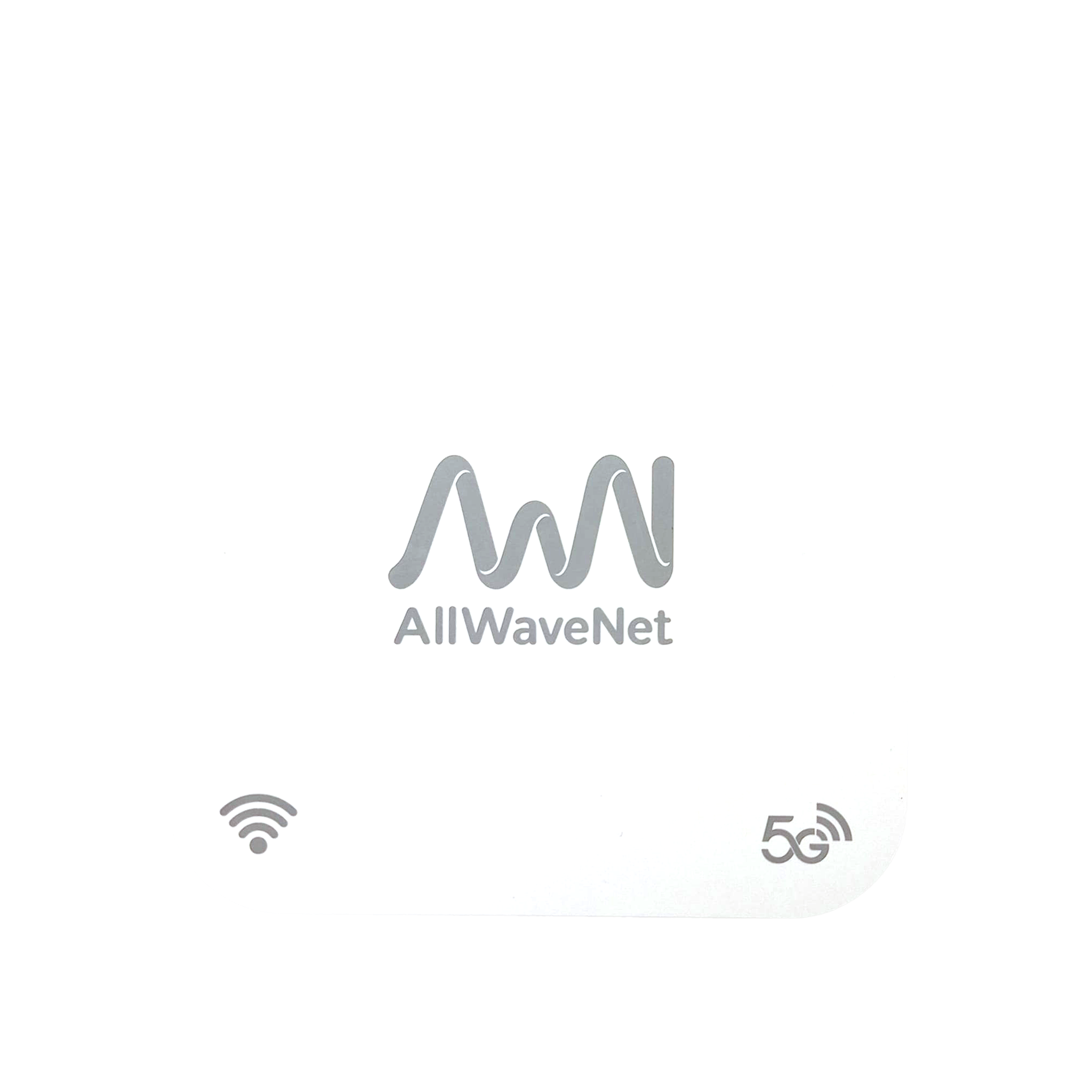

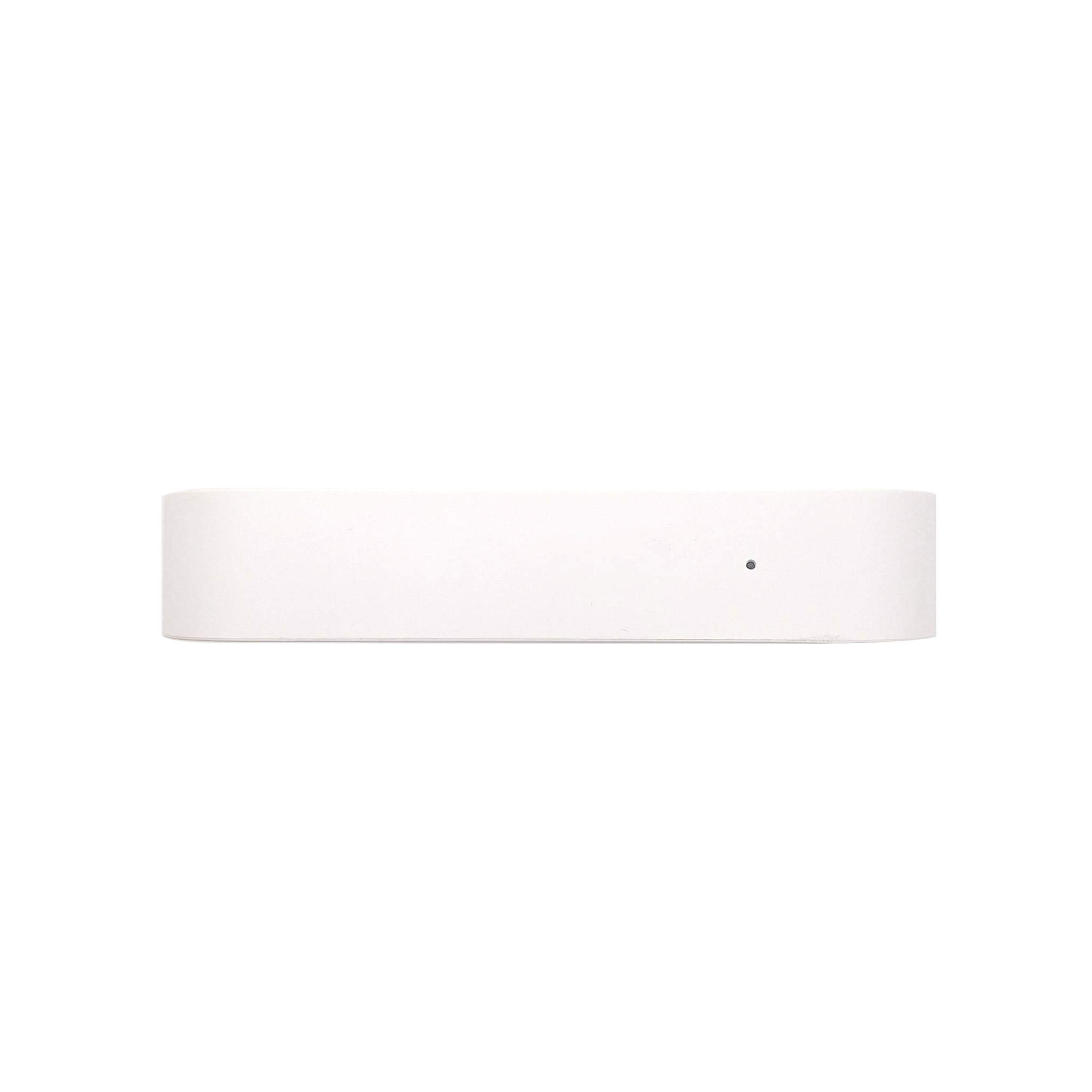

AllWaveNet MagCube M77 5G NR BE3600 2.5GbE AI Mobile Router
Brand:
AllWaveNet
Model No.:
M77
Description
Contact Supplier
Description
Flagship 5G Hardware. Truly Global.
Equipped with Qualcomm Snapdragon SDX62 5G chipset
Extensive 5G/4G all-band support
Robust Carrier Aggregation (CA) support
Tailored for cross-border roaming (preferred for business and travel)
Automatic adaptation to global data cards
Dual physical Nano‑SIM card slots
Next‑generation Wi‑Fi 7 experience with BE3600 dual‑band high‑speed concurrency
Ultra‑low latency — zero lag for gaming and live streaming
Aerospace‑grade aluminum cooling

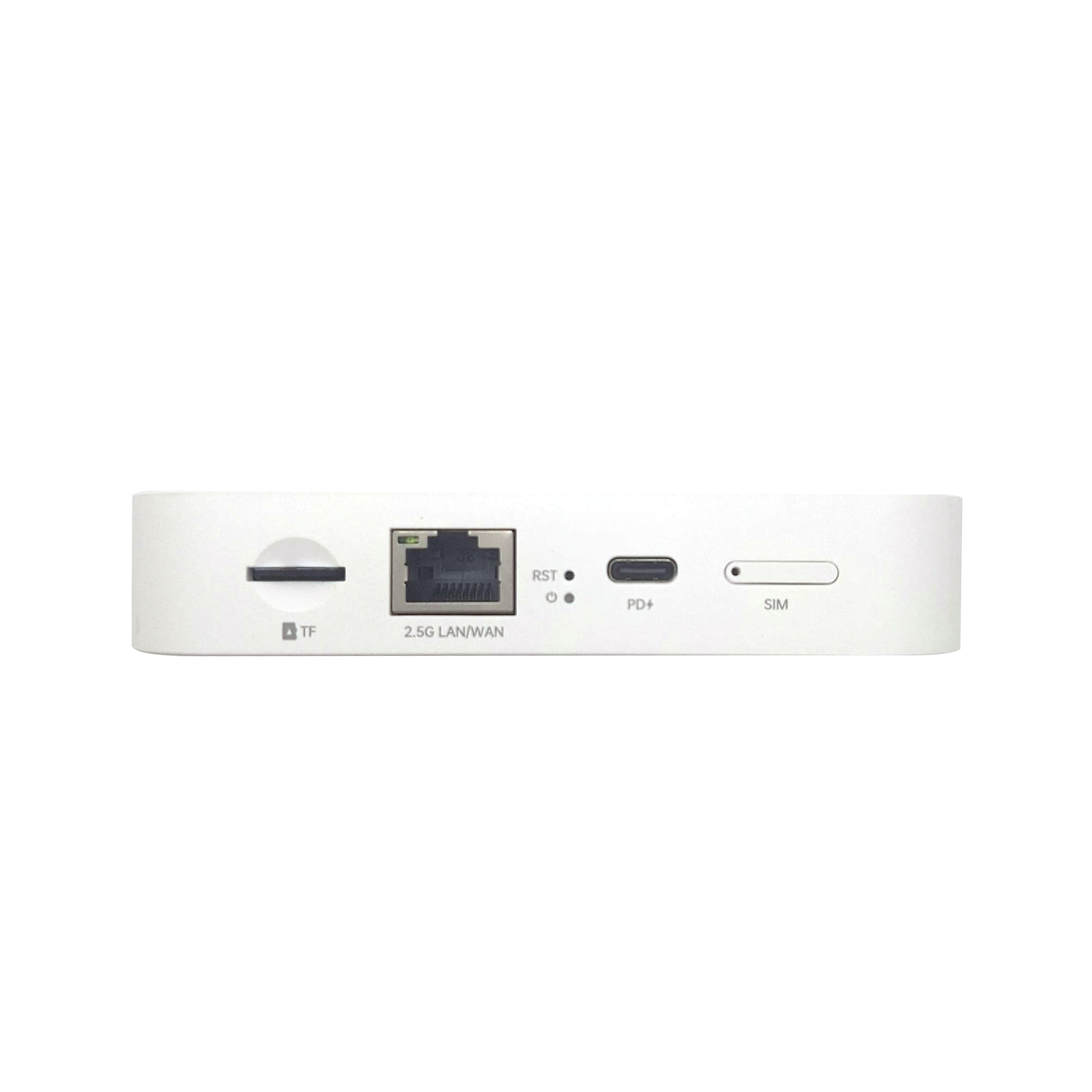

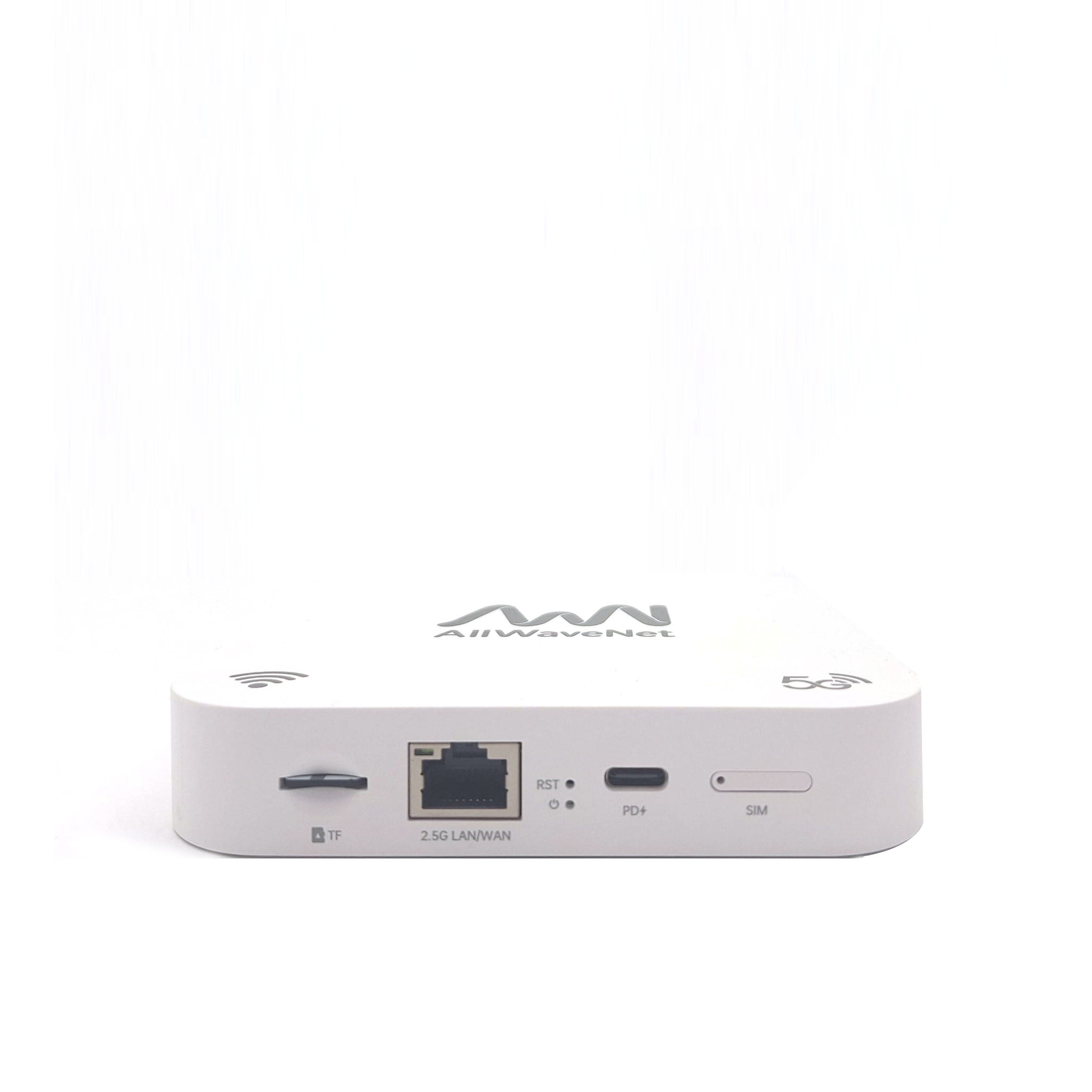

Robust interface expansion, suitable for all scenarios
2.5G ultra‑fast network port (WAN/LAN switchable)
Type‑C 20W PD wide‑voltage power supply
microSD (TF) memory card expansion slot
Dedicated app for remote management
| Specification items | Technical Parameters |
|---|---|
| 5G Chipset | Qualcomm Snapdragon SDX62 Communication Chipset |
| Wi‑Fi Specifications | Wi‑Fi 7 BE3600 (2.4GHz + 5GHz Dual‑Band) |
| 5G Peak Speed | NSA: Downlink 3.4Gbps / Uplink 550Mbps SA: Downlink 2.4Gbps / Uplink 900Mbps |
| 4G Peak Speed | Downlink 1.6Gbps / Uplink 200Mbps |
| Carrier Aggregation (CA) | Supports 5G 2CC and LTE 5CC |
| Supported 5G Bands | Global Sub‑6GHz (n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n30/n38/n39/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79) |
| Supported 4G bands | Global FDD/TDD full LTE bands, compatible with WCDMA (3G) |
| SIM Card Specifications | Dual Nano‑SIM (4FF) physical card slots, supports dual‑SIM failover switching |
| Networking Ports | 1 × 2.5G adaptive network interface (supports WAN/LAN switching) |
| Power Input Type | Type‑C interface, supports 20W PD fast charging and external power bank supply |
| Expansion Slot | 1 × microSD (TF) memory card expansion slot |
