Amateur Radio
Production Lead Time:
3 day(s)
Model No.:
N610
Brand:
TeLT
Colour:
Yellow
Size:
100 x 51 x 29mm
Port:
Xiamen, Shenzhen, Guangzhou
Type of Payment:
L/C, T/T, Western Union, PayPal
Minimum Order Quantity:
1 piece(s)
Description
Contact Supplier
Description

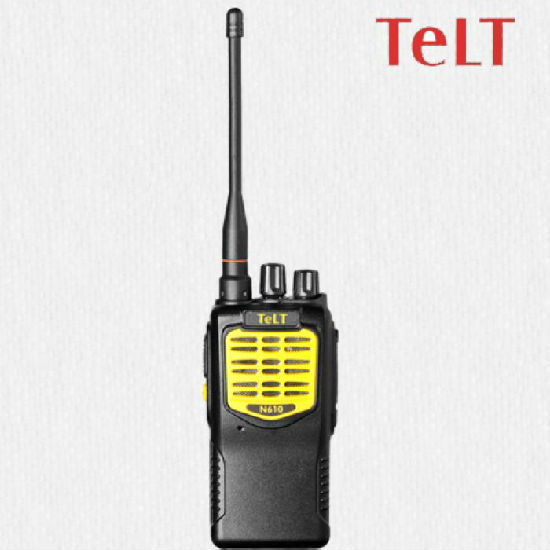

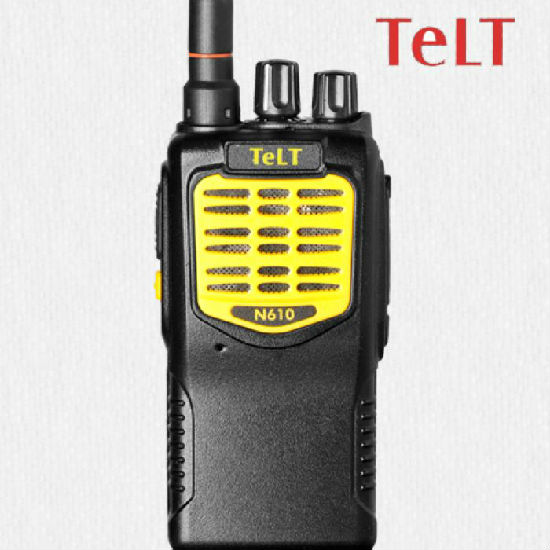

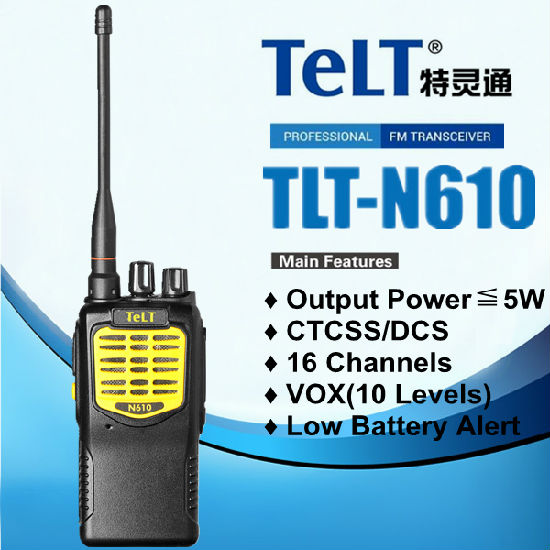

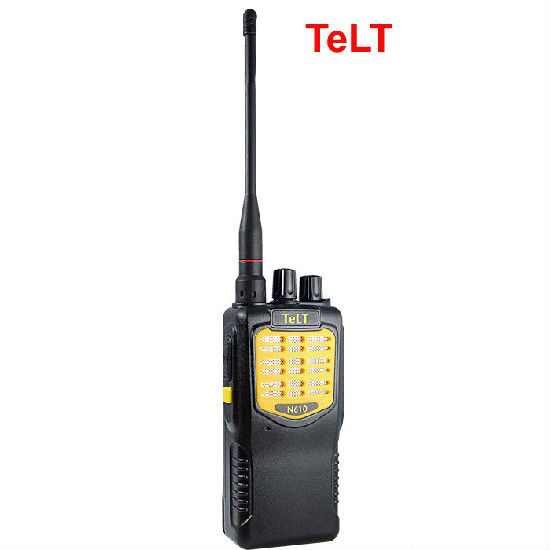

Highlighted here is a amateur radio.
Feature:
Feature:
- Prior scan function.
- Built-in level 10 VOX voice operated transmit.
- Two color choice: yellow and black.
- CTCSS/DCS.
- VOX (voice operated transmission).
- Time-out timer (TOT).
- PC programmable.
- High frequency stability.
- VOX (voice operated transmission).
- Low battery alert.
- Power save function.
- Channel annunciation.
- Tail voice elimination.
- Frequency range: VHF 137-174MHz; UHF 350-390MHz 400-430MHz 440-470MHz.
- Channel No.: 16 channels.
- Channel step: 5kHz/6.25kHz.
- Frenquency stability: ±2.5ppm.
- Operating temperature: -20℃ to + 55℃.
- Working voltage: 7.4V DC.
- Dimension (H x L x W): 100 x 51 x 29mm.
- Weight: 210g.
- Distances: 3-10km.
- Output power: 3W.
- Max.freq.deviation: ＜±5kHz.
- Antenna impedance: 50Ω.
- Transmitting current: ≤1300mA.
- Modulation distortion: ＜5% (300kHz–3kHz).
- Modulated mode: FM (F3E).
- Residualwave radiation: ≤-65dB.
- Sensitivity: 0.20μV (12dB SINAD).
- Operating bandwidth: wide.25kHz; narrow.12.5kHz.
- First IF of receiver: 38.850MHz.
- Second IF of receiver: 450kHz.
- Squelch sensitivity: 0.16μV.
- Audio power output: ≤500mW.
- Standby: 20mA.
