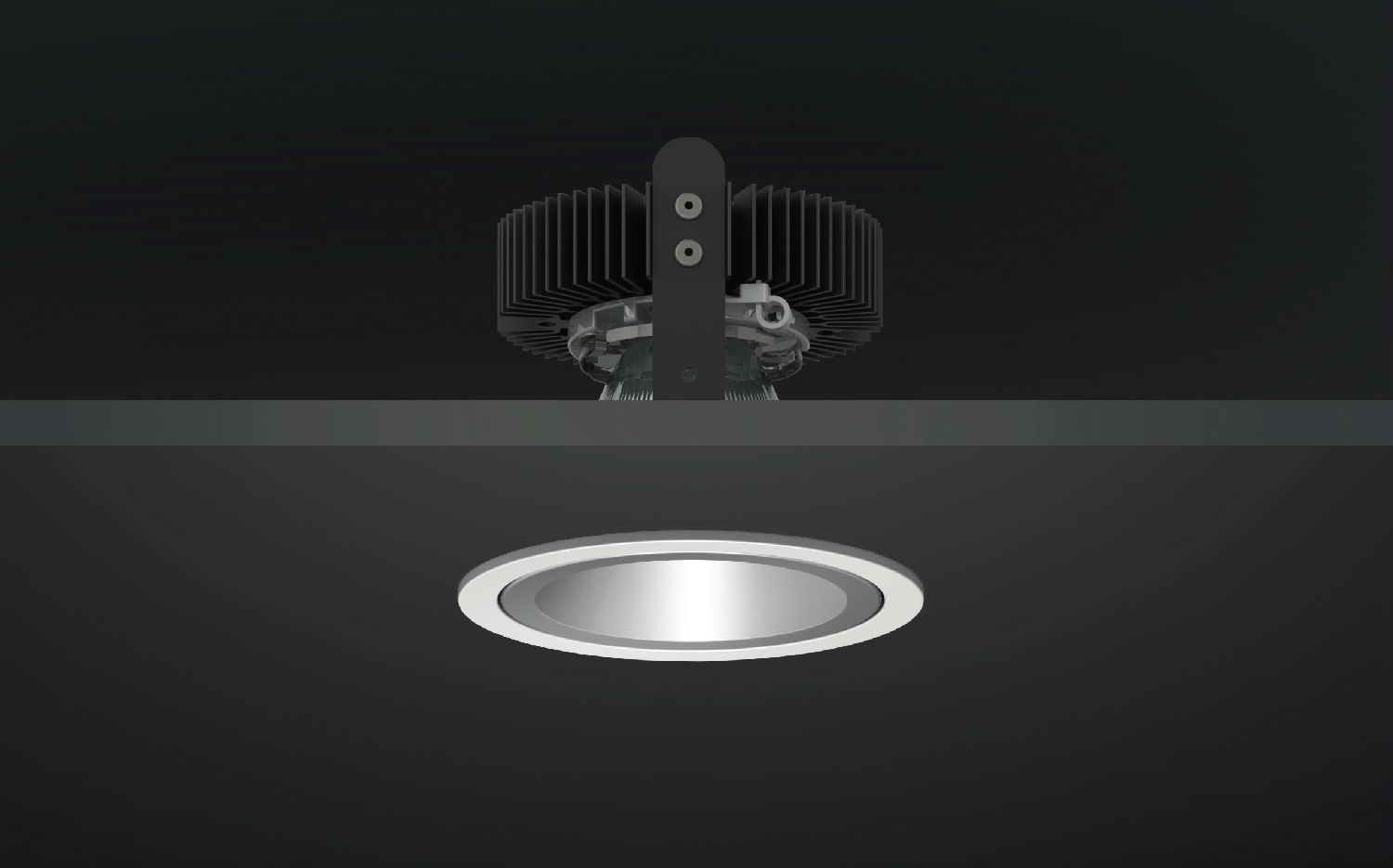

Ambiance Lens Wallwasher
Model No.:
AMBIANCE 100
Description
Contact Supplier
Description
General Specification
• Fixed, Directional and Wallwasher
downlights
• 3.93” (100mm) diameter
• Aperture 2.6’’ (65mm)
• Aluminium reflector
• High cut off angle
• Various reflector / lens beam
distributions available:
20º, 40º and 60º
• Two piece reflector arrangement
• Aesthetic lower reflector options:
Specular Silver, Satin Silver, Black,
White and Gold.
• 0-30º tilt
• Lockable directional facility on some
products
• Efficient heatsink design allowing
shallow depth construction.
• Ingress protection version available
• Built to compliance EN 60598-1
• Class III construction, low voltage
• Recessed with standard finish trim
RAL 9010.
LED Specification
• Xicato and Cree LED options
• Colour Temperature available: 2700K,
3500, 3000K or 4000K
• Standard luminous flux packages
currently available:
1000 - 3000 lumens.
• Future proofed Zhaga compatible
LEDs
• Colour Rendering: Ra >80, Ra >90
and Ra 95.
• 2 Step MacAdam or 3 Step MacAdam
available, dependant on LED type
• DALI, 0-10V, Lead / trailing edge
dimming protocol options
• Emergency modes and conversions
available
• Fixed, Directional and Wallwasher
downlights
• 3.93” (100mm) diameter
• Aperture 2.6’’ (65mm)
• Aluminium reflector
• High cut off angle
• Various reflector / lens beam
distributions available:
20º, 40º and 60º
• Two piece reflector arrangement
• Aesthetic lower reflector options:
Specular Silver, Satin Silver, Black,
White and Gold.
• 0-30º tilt
• Lockable directional facility on some
products
• Efficient heatsink design allowing
shallow depth construction.
• Ingress protection version available
• Built to compliance EN 60598-1
• Class III construction, low voltage
• Recessed with standard finish trim
RAL 9010.
LED Specification
• Xicato and Cree LED options
• Colour Temperature available: 2700K,
3500, 3000K or 4000K
• Standard luminous flux packages
currently available:
1000 - 3000 lumens.
• Future proofed Zhaga compatible
LEDs
• Colour Rendering: Ra >80, Ra >90
and Ra 95.
• 2 Step MacAdam or 3 Step MacAdam
available, dependant on LED type
• DALI, 0-10V, Lead / trailing edge
dimming protocol options
• Emergency modes and conversions
available
