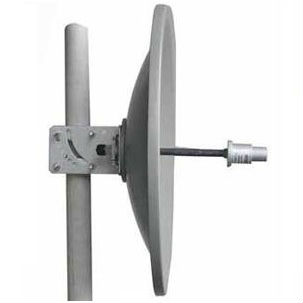

Antenna 3.5GHz WiMax system,high gain, good effect, applicable to wireless access systems, long
Model:SRT-3.5G-3549

Electrical specifications

• Frequency range:3300~3800 MHz
• Gain:28 dBi
• Polarization:vertical or horizontal
• VSWR:≤1.5
• Vertical beam width:7.5°
• Horizontal beam width:7.5°
• Front-to-Back Ratio:≥35 dBi
• Impedance:50 ohms
• Max. power:100 W

Mechanical specifications

• Connector:N Female
• Dimension:Φ900 mm
• Net weight:10 kg
• Operation temperature:-40 ~ +60 ℃
