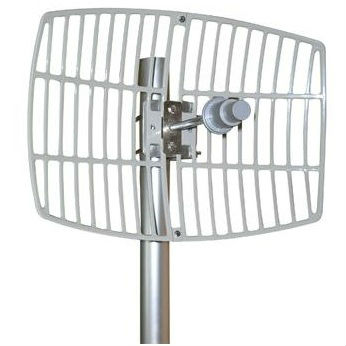

Antenna for 3.5GHz WiMAX system,high gain, good effect, applicable to wireless access systems, long
Model:SRT-3.5G-3547

Electrical specifications

• Frequency range:3300~3800 MHz
• Gain:22 dBi
• Polarization:vertical or horizontal
• VSWR:≤1.5
• Vertical beam width:13°
• Horizontal beam width:9°
• Front-to-Back Ratio:≥25 dBi
• Impedance:50 ohms
• Max. power:100 W

Mechanical specifications

• Connector:N Female
• Dimension:600x400 mm
• Net weight:2.4 kg
• Operation temperature:-40 ~ +60 ℃
