Anti-Interference Film Capacitor

Production Lead Time:

7 day(s)

Model No.:

KNSCHA X2

Brand:

KNSCHA

Colour:

Yellow

Size:

15mm (Pitch Size)

Port:

Shenzhen, Guangzhou, Zhuhai

Type of Payment:

T/T, PayPal, etc.

Minimum Order Quantity:

3,000 piece(s)

Customised:

Yes

Capacitance:

0.22UF

Application:

General Purpose

Operating Temperature:

-40℃ ~ +110℃

Installation Type:

Through Hole

Rated Voltage:

310VAC

Description

Contact Supplier

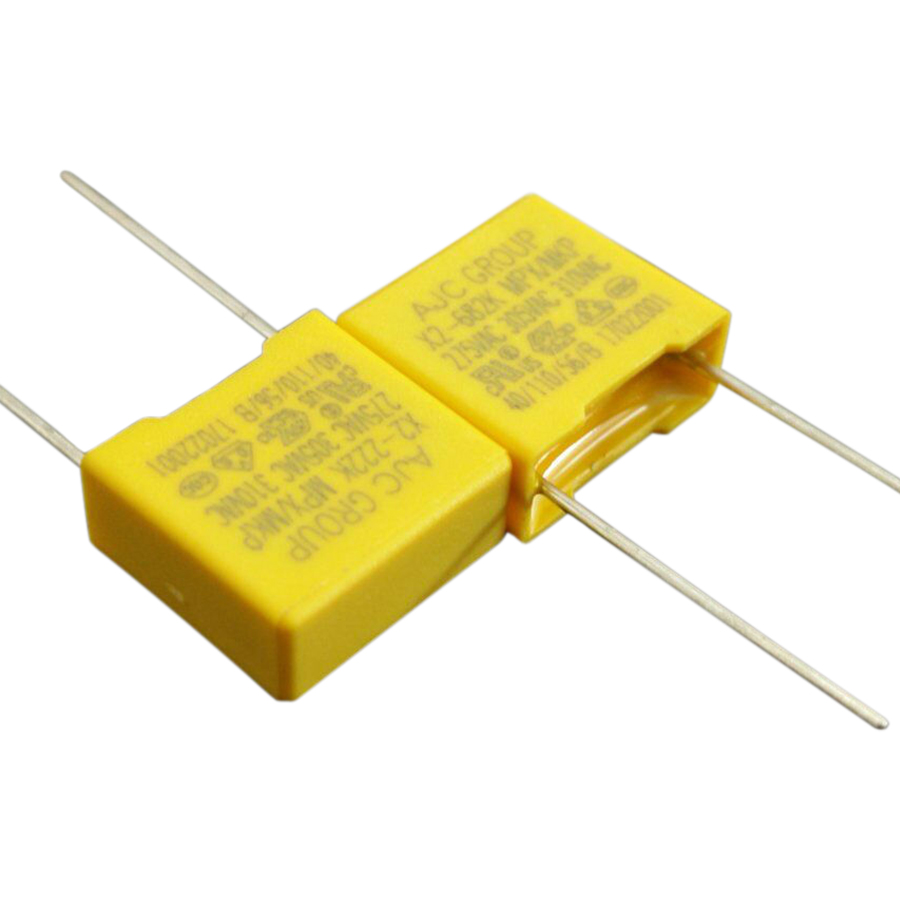

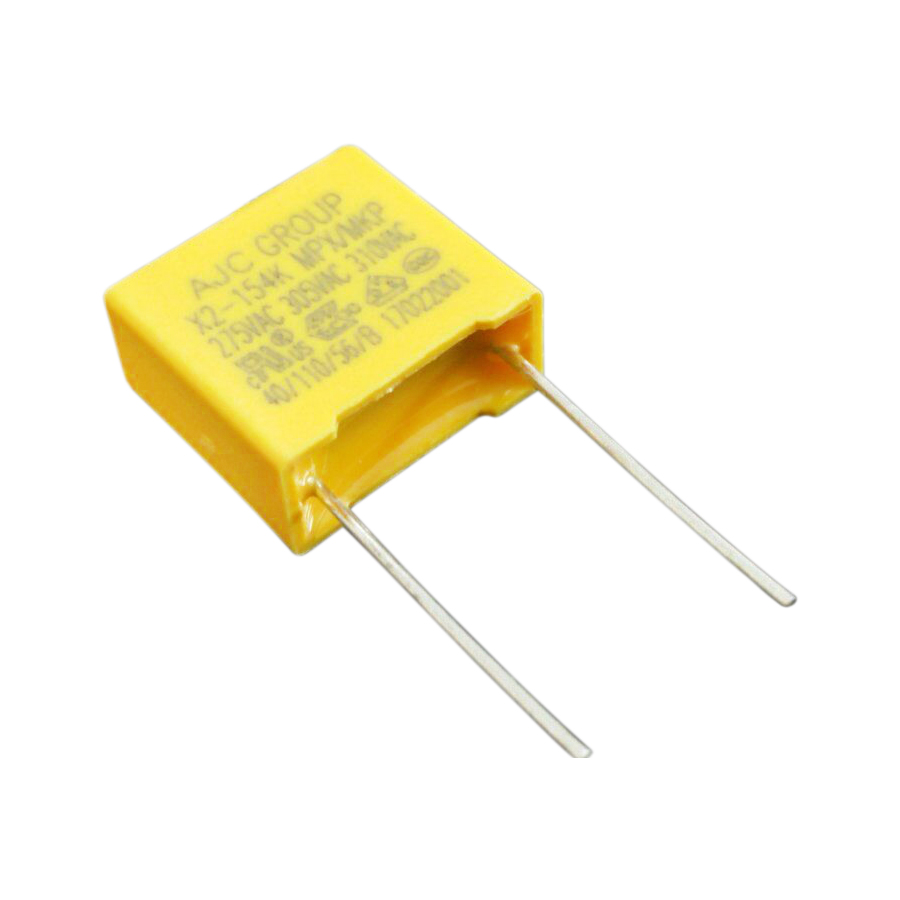

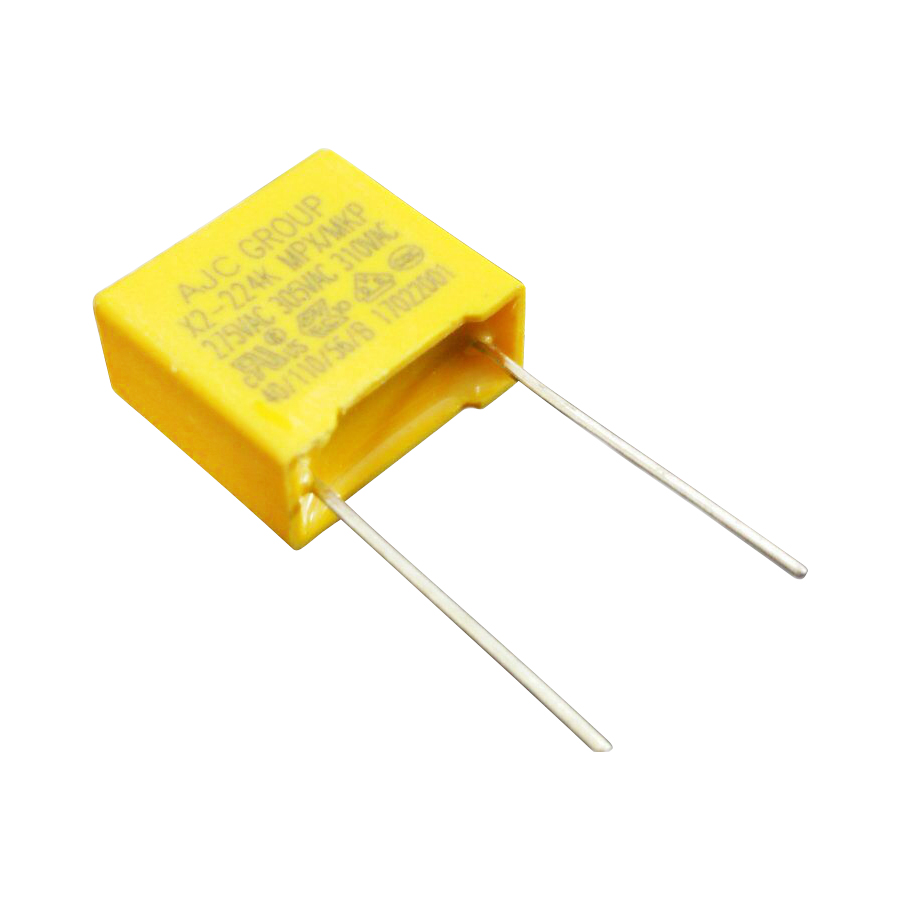

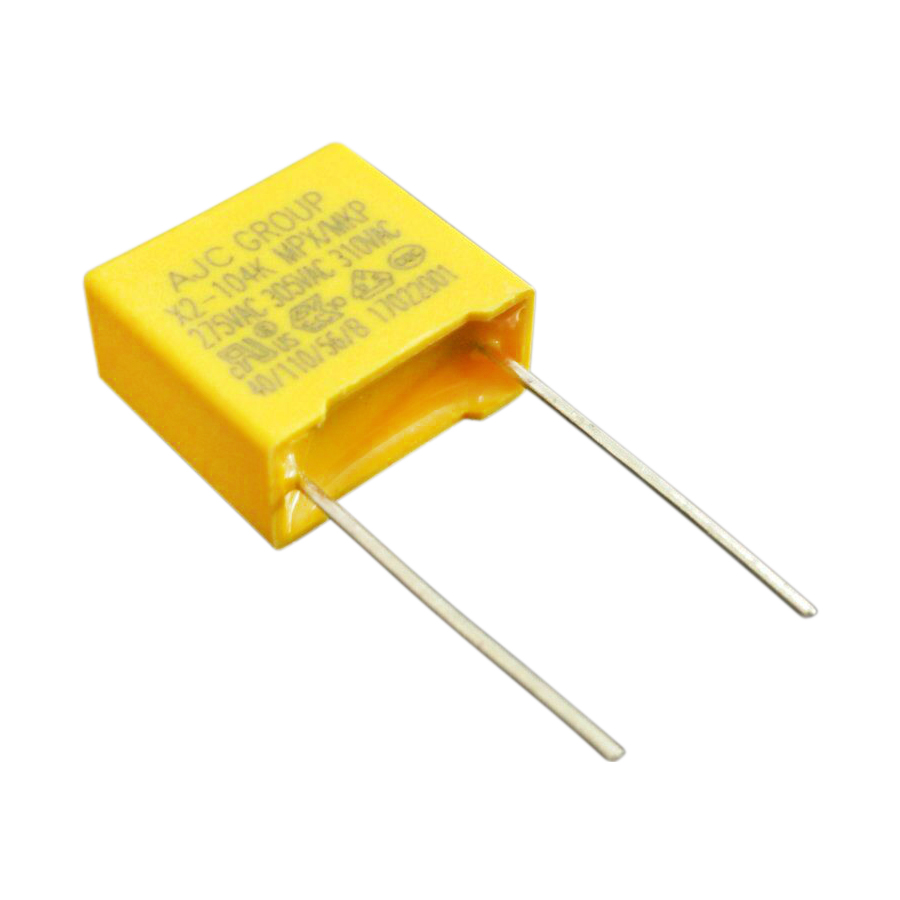

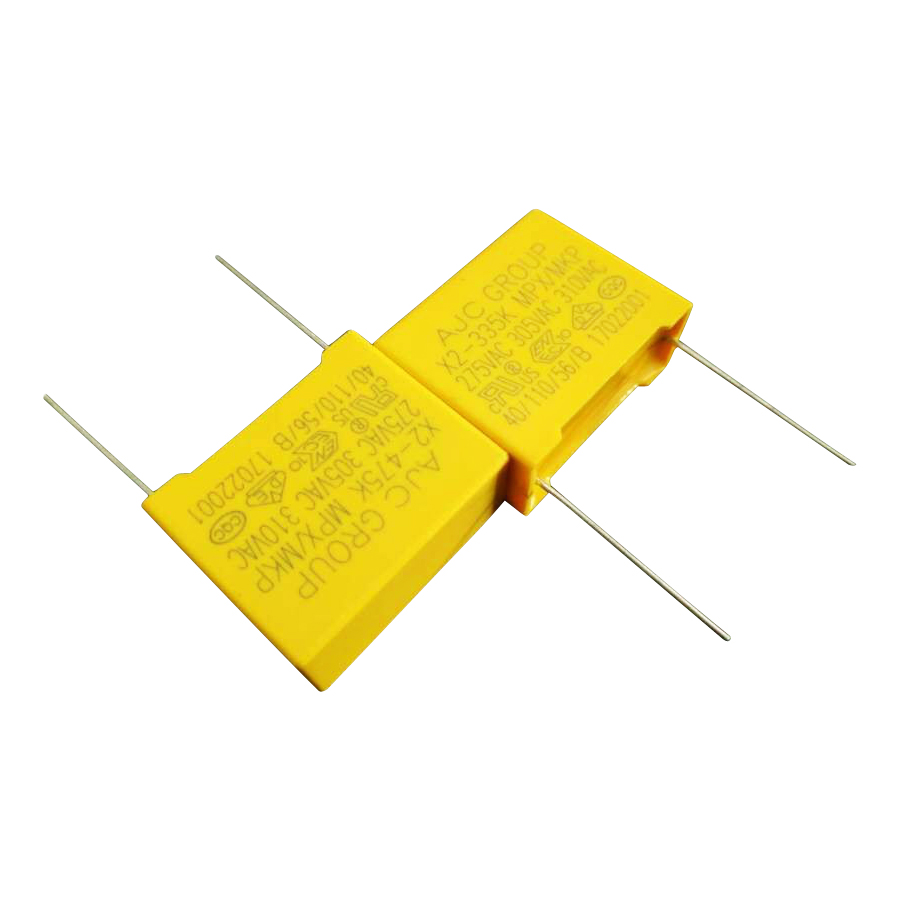

KNSCHA 224K 310VAC X2 film capacitor, anti-interference film capacitor

Metallized polypropylene film capacitor (box type)
Good self-healing performance
Epoxy resin coated sealing
Excellent flame retardant, moisture proof
Able to withstand over-pressure shocks
Rated Voltage: 275VAC, 305VAC, 310VAC
Capacitance Range: 20.001F~4.7UF
Certification approved: UL, CUL, ENEC, VDE, KC, CQC
Application: widely used in cross-the-line, anti-interference circuit

Notice Important:

Please kindly contact us to confirm your requirement of voltage, capacitance, dimension, usage etc before placing order.
Price herewith is for reference. Price will be varied from different parameters.
