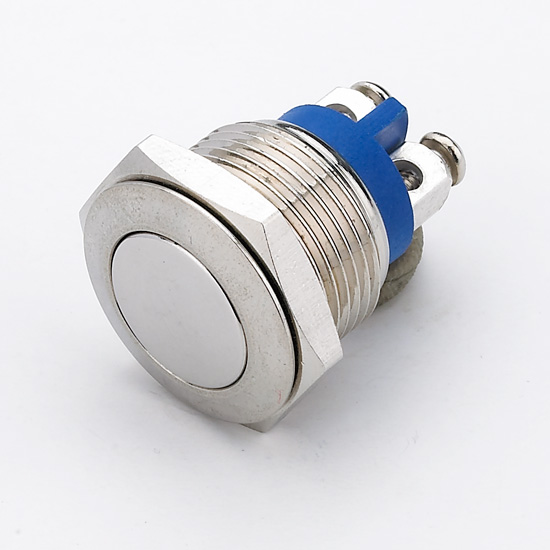

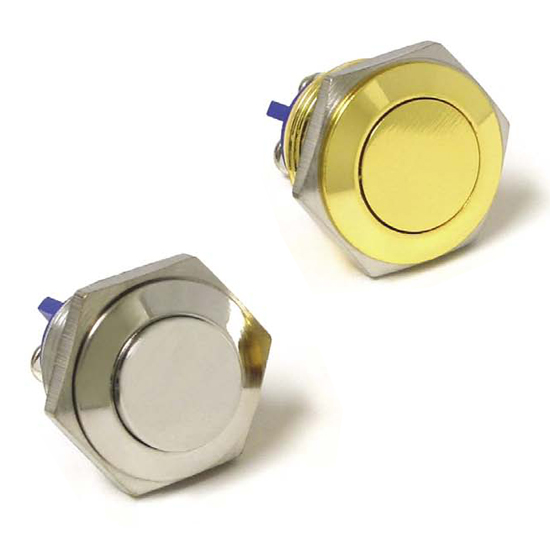

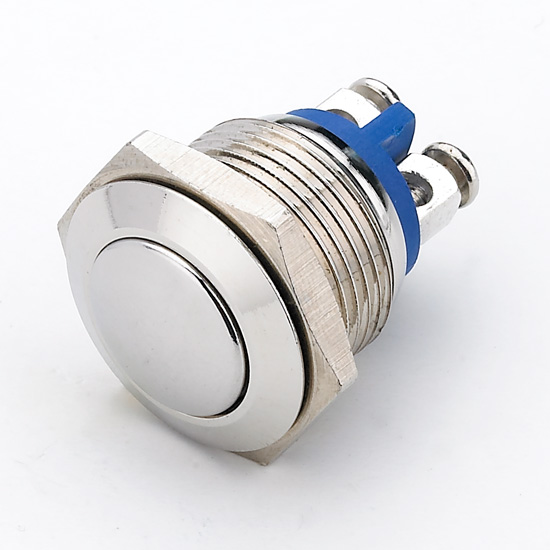

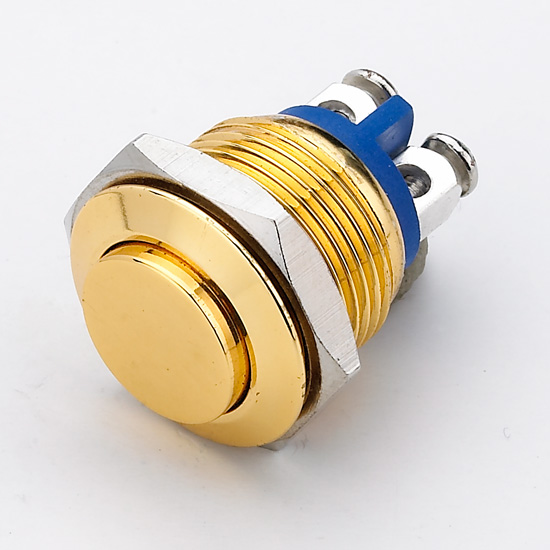

Anti Vandal Switch for V16

Model No.:

V16

Description

Contact Supplier

Type: V16-F, V16-B, V16-H.
Actuator options: flat, domed, high flat.
Max. panel thickness: 0.236" (6.0mm).
Terminal screw/pin: (2.8 x 0.5).
Max. switch rating: 2A/48V DC.
Contact resistance: ≤50mΩ.
Insulation resistance: ≥1000mΩ.
Dielectric strength: 2000V AC.
Operation temp.: -20℃~+55℃.
Mechanical life: 1,000,000 cycles.
Electrical life: 200,000 cycles.
Contact material: silver alloy.
Torque: 5~14Nm.
Operation pressure: 5.5N.
Protection: IP65/IK09.
Material actuator: stainless steel/nickel plated brass/gold plated brass/anodized aluminum.
Body: stainless steel/nickel plated brass/gold plated brass/anodized aluminum.
Base: PBT.
