Excellent Selection of 100%Virgin Material& Scientific Designed Structure

On equal conditions, the light transmittance is obvious higher than traditional matte or orange peel texture diffusion sheet, at the same time effectively suppress the glare value

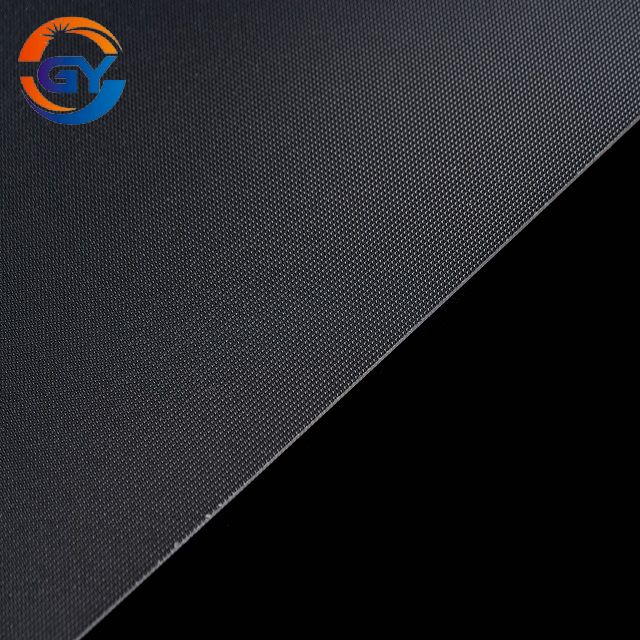

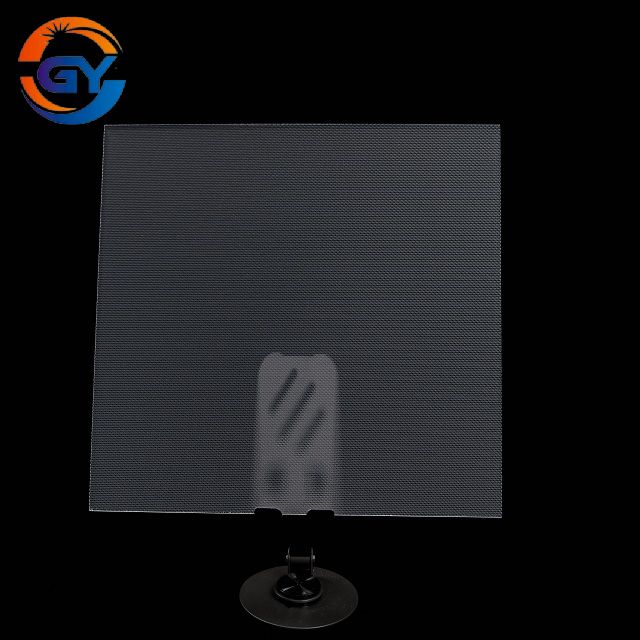

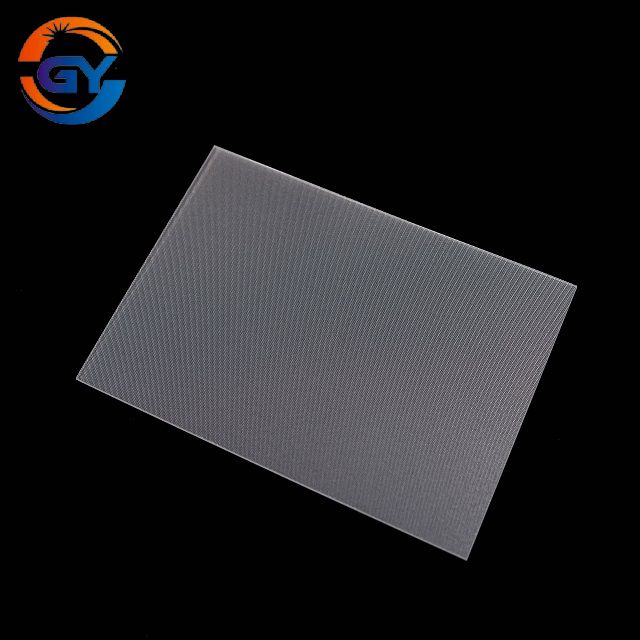

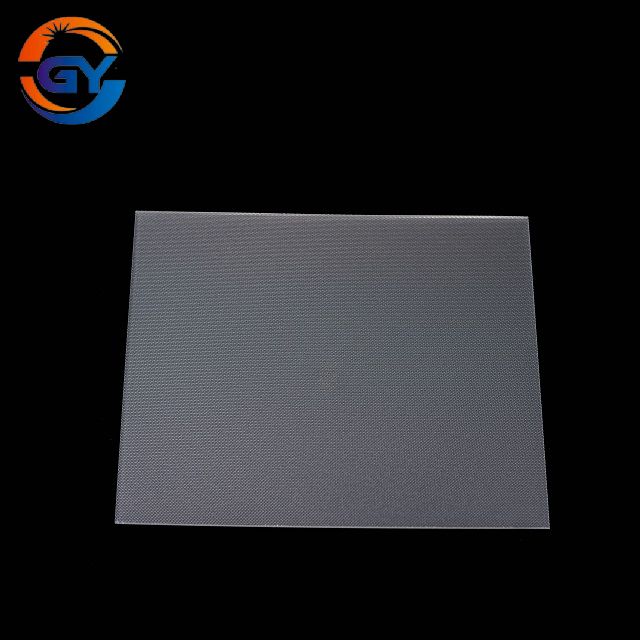

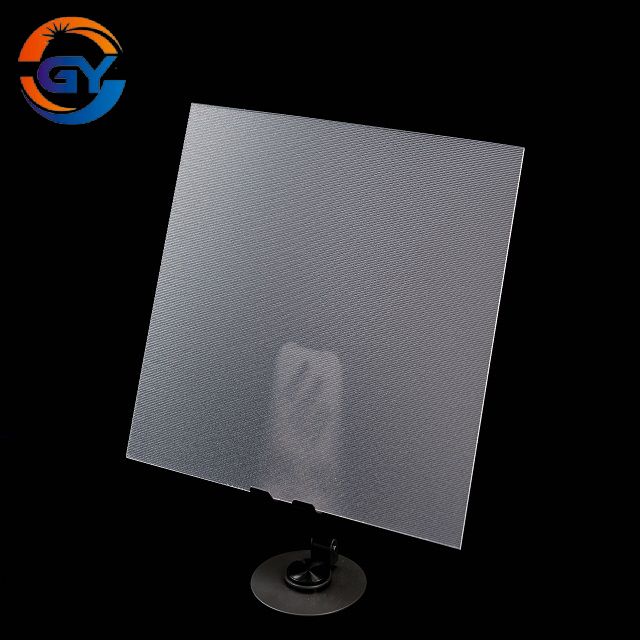

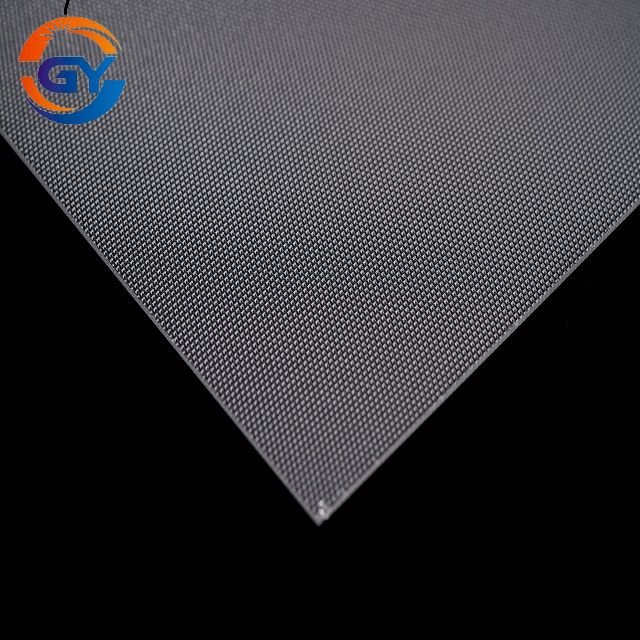

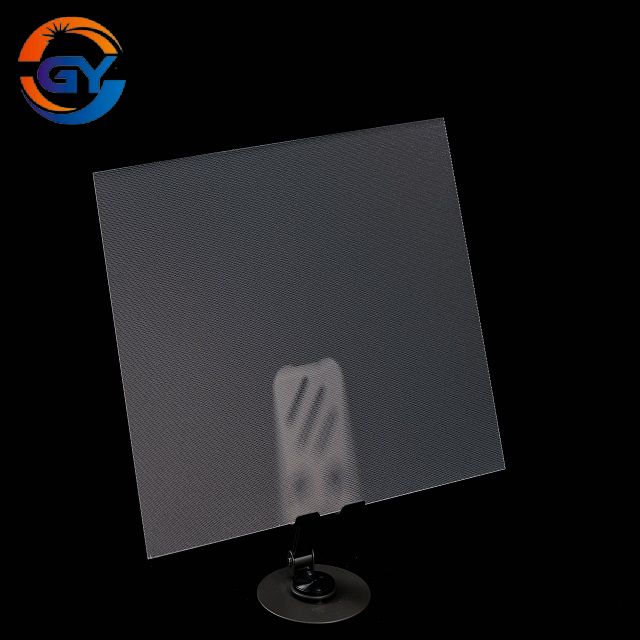

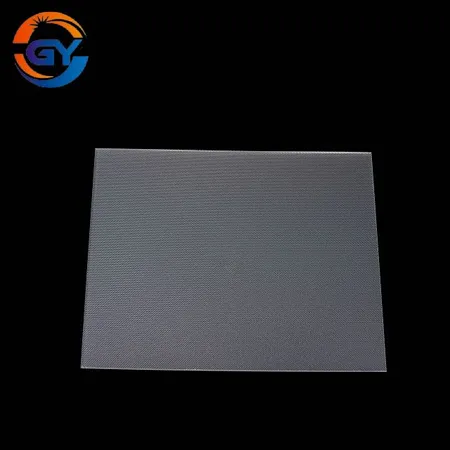

UGR Diffuser Sheet

UGR diffuser sheet with Concave hexagon,takes on homogeneous look due to unidirectional structure

Scientific Designed Structure

Scientific designed structure,well defined lamp direction with average beam angle 83 degree, assist to improve the light efficiency and reasonable glare suppression

PRODUCT APPLICATION

The application is different depend on the edge -lit usage or back-lit usage, for example if it's side-lit usage, there will be four layer structure, from the top to bottom will be UGR diffuser sheet, the diffuser film and LGP and reflective film, it can be illustrated that the UGR diffuser positioned in outer layer with the texture face towards the observer; The diffusion film located in the middle layer with the micro structure facing towards the LGP; the LGP be placed between the diffusion film and the reflective film, and with the dot side facing towards the diffusion film, the smooth side towards the reflective film.

If it's back-lit usage, there will be two layer, from the top to bottom will first be UGR diffuser sheet, then the normal diffuser sheet, and the structure will be the UGR diffuser positioned in outer layer with the texture face towards the observer; the diffuser sheet located in the bottom layer which more closer to the LED source.
