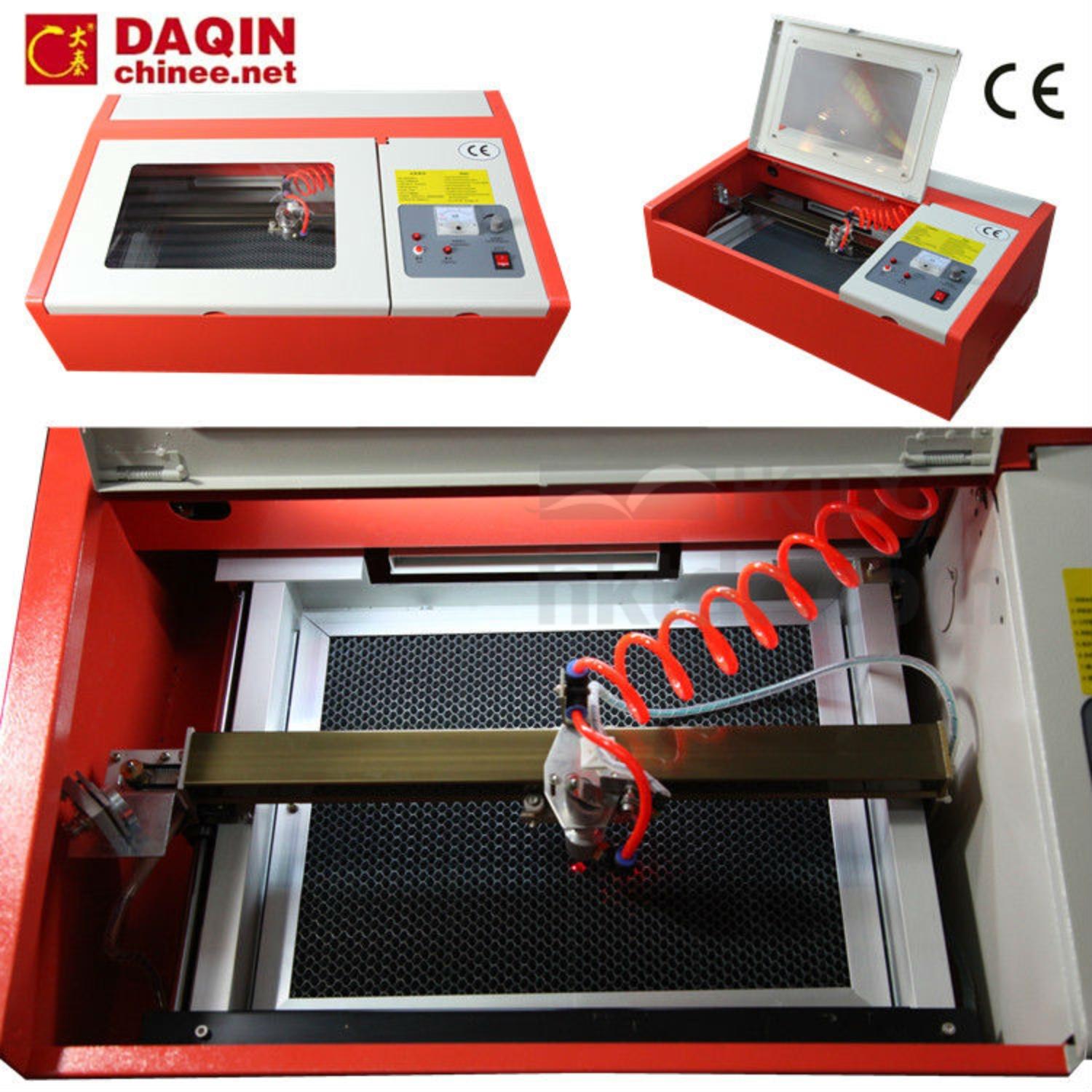

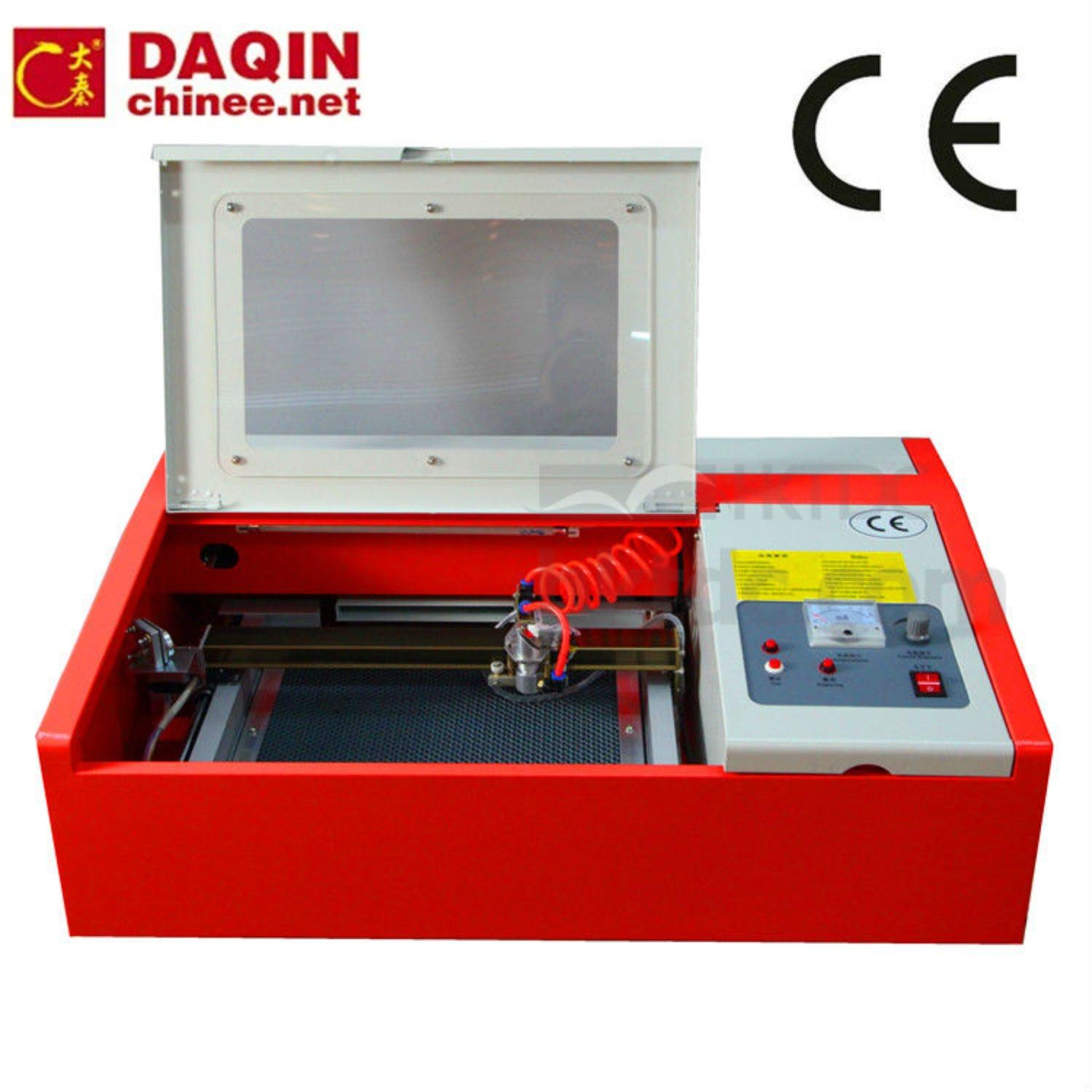

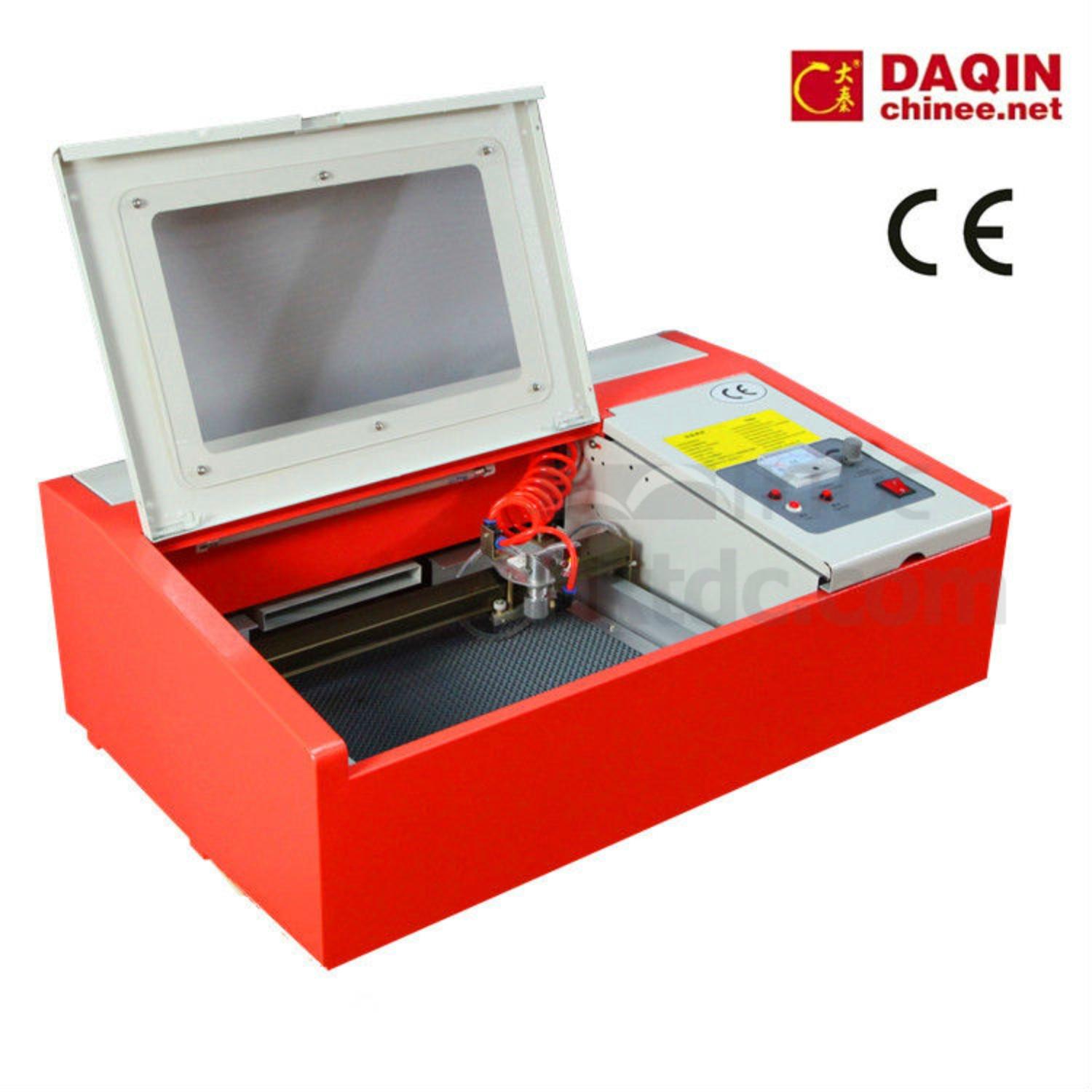

DAQIN Automatic Screen Protector Cutting System is a system of automatically cutting screen protectors, which controlled by the professional design and management software that can transform abundant and latest cutting die into graphic data and can connect with the cutting machine to produce screen protectors of PET/PVC fast and accurately. It solves the problem of supply screen protectors of small batch. The curve of cutting is natural and without rough edge.

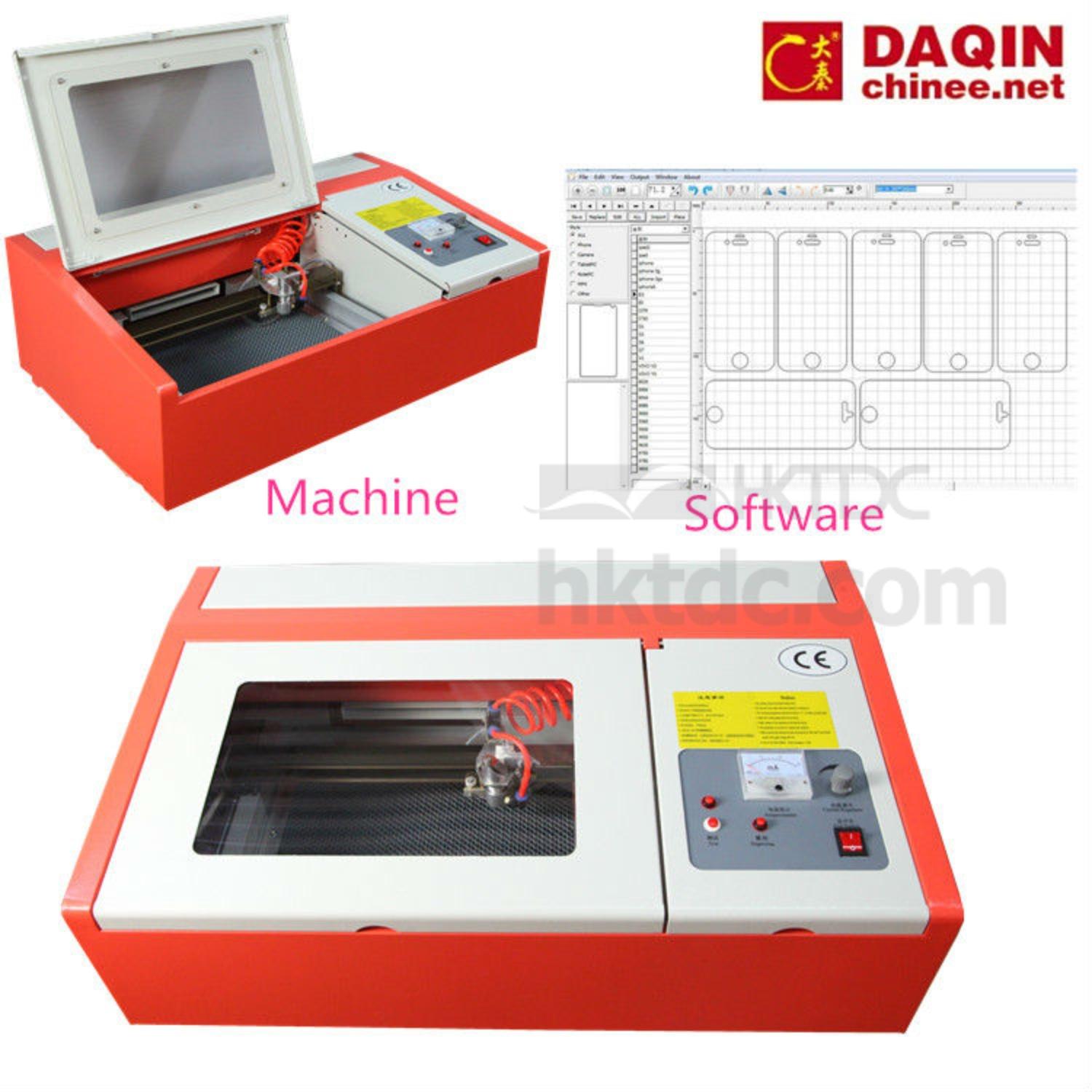

Mobile screen protector cutting system = mobile screen software  +  mobile screen protector cutting machine
You can easily add or design  new model cutting template by yourself.

It includes the most comprehensive cutting templates in the world.(100+ brands mobile phone)

The software update newest models monthly, no need to wait new mobile phone model at all.

We don’t sell machine alone, more importantly, we sell the screen protector templates and service.
Specification for mobile automatic screen protector cutter for small business :



Name automatic screen protector cutter
Model Daqin screen cutting - DQ- C178
Cutting way Controlled by professional software
Cutting Type Laser Cutting
Beam type CO2(Carbon dioxide beam)
Beam power 40 W
Cooling system Circulating water cooling system
Exhausting fume method Back exhaust
Maximum cutting area 297mm*210mm
Cutting precision ±0.01mm
Cutting speed <50cm/s
Drive type 0.9°Stepper motor
Communication interface USB Print line
Operating temperature 5-45℃
Machine size 83 CM * 50 CM * 25 CM
Weight 32 KG
Total Power 200 W
Packing size 92 CM * 62 CM * 42 CM
Weight after packing 45 KG
Package Three layers
Shipping way DHL ,FedEx ,TNT ,UPS ,EMS and so on
Advantage No rough edge and Accurate
