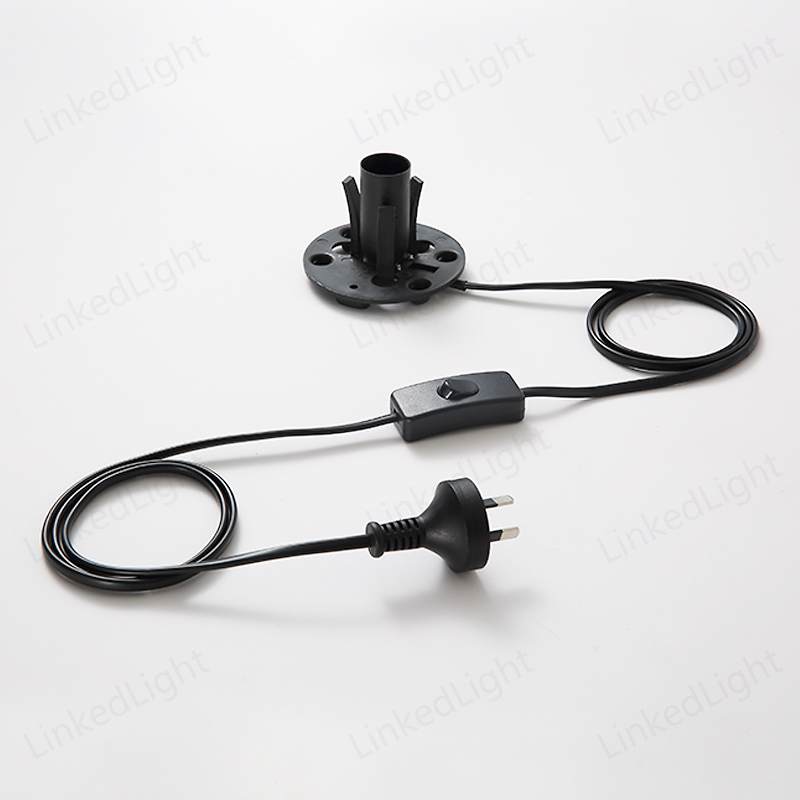

Australian SAA 2-Pin Plug Wire Cord with Switch

Production Lead Time:

15 day(s)

Shipping Method:

by sea ; by air ; by courier

Application:

LED Salt Lamps, LED Table Lamps, LED Reading Lamps

Power Source:

AC Power

Material:

Conductor Material:Copper Sheath Material:PVC Pin Material : Brass

Brand:

LinkedLight

Feature:

Australian Plug

Description

Contact Supplier

Product Name	Australian SAA 2-Pin Plug Wire Cord with Switch
Product Code	LCS.20.303
Optional Colours	Black / White / Transparent / Customized
Application	LED Desk Lamps, LED Wooden Lamps, LED Tiffany Lamps, LED Crystal Lamps, LED Gift Lamps, Fragrance Lamps
Components	Plug, Cable, Switch
Components Description
Plug	Type : Australian 2 Pin Moulded Plug
	Pin Material : Brass
	Body Material : Plastic PVC
	Rated Voltage : 250V
	Rated Current : 10A
	Approvals : SAA
Cable	Type : H03VVH2-F / 2 Core Flat Cable
	Jacket Material : PVC
	Insulation Material : PVC
	Conductor Material : Stranded Bare Copper
	Rated Voltage : 300 / 300V
	Rated Temperature : 70ºC
	Approvals : CCC / VDE / SAA / KC
Switch	Type : 303 Cord Switch
	Housing Material : PC / PP
	Contact Material : Copper / Nickel Plating
	Installs Way : Pressure, Non-Rewirable
	Rated Voltage / Rated Current : AC 250V / 2A
	Approvals : CE / CQC / ENEC / SAA
Cable End Process	Cutting / Strip Outer Jacket / Strip Out Jacket & Inner Wire
Cable End Process	Tin Plated Inner Wire / Brass Ferrules / Double Rings / Connectors
