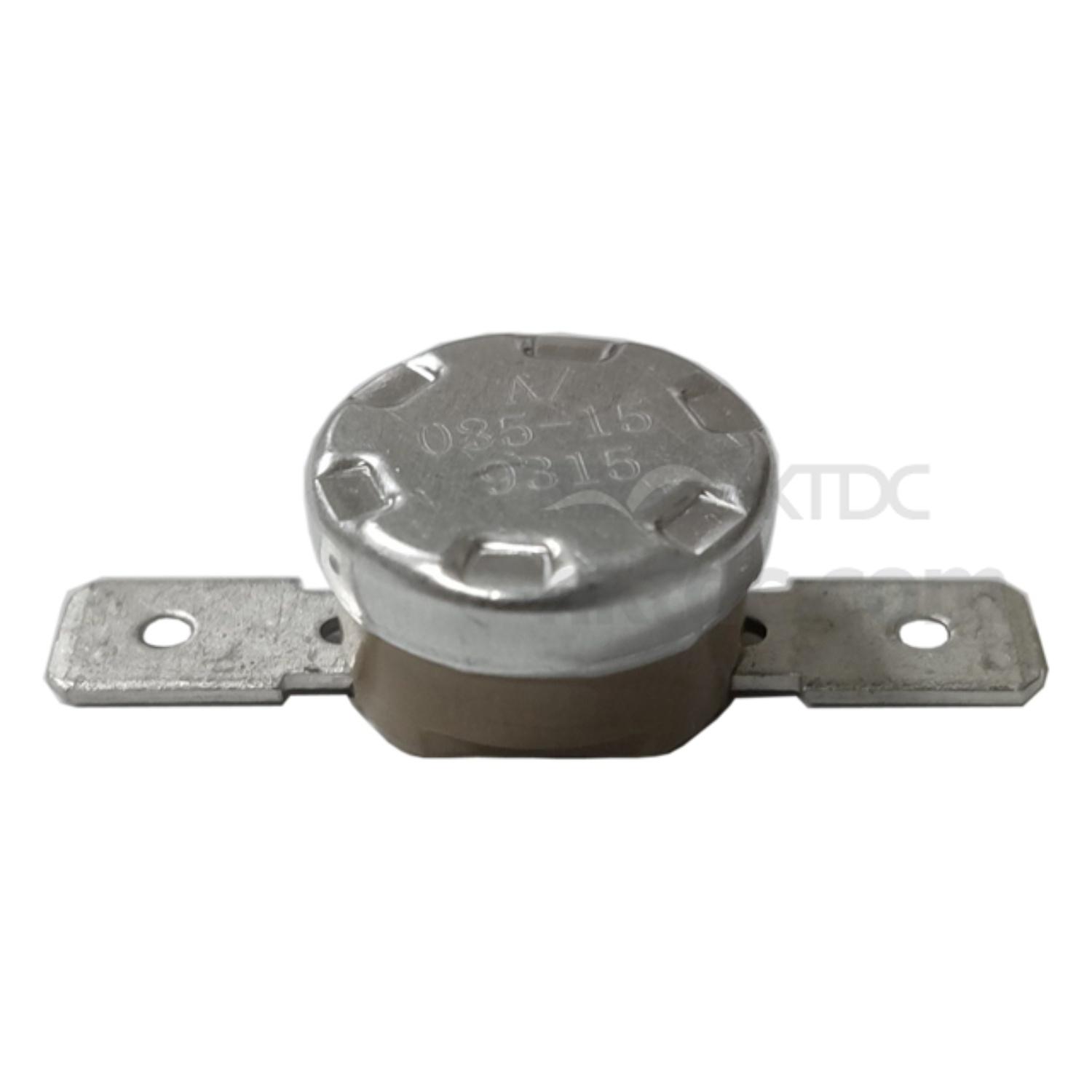

Automatic Reset KSD301 Thermostat

Production Lead Time:

30 day(s)

Model No.:

T23-CF2-PB

Brand:

Minimum Order Quantity:

1,000 piece(s)

Package:

Yes

Customised:

Yes

Description

Contact Supplier

The most versatile thermostats.
A wide range of temperature, low temperature till high temperature, can be set according to customer requirements.
CAP / Case material, Bracket type / Terminal Orientation / Terminal Size could be customized based on actual demand. See the bottom for details.
Type: Single pole - single throw

Operating Temp:

UL/CUL: 50℃ - 205℃
VDE: 0℃ - 180℃
CQC: 50℃ - 200℃
Considering three case material, Phenolic / PPS / Ceramic.
Differential: 5℃ or more, Standard: 10℃ - 25℃
Case Material: PPS (could be customized, more options such as Phenolic, Ceramic...)
CAP / Bracket: Aluminum
Height: 9.6 mm (the other option is 12.4 mm)

Electrical Rating:

16A / 250V AC Resistive load
15A / 125V AC Resistive load
10A /2 50V AC Resistive load
Temp Tolerance: ±3℃ or more, Standard: ±3℃ - ±12℃(depend on customer required operating Temp)
Endurance: 100,000 cycles or more
Circuit Resistance: 50mΩ or less
Insulation Resistance: 100MΩ or more (DC 500V)
Dielectric Strength: AC 1,450V
