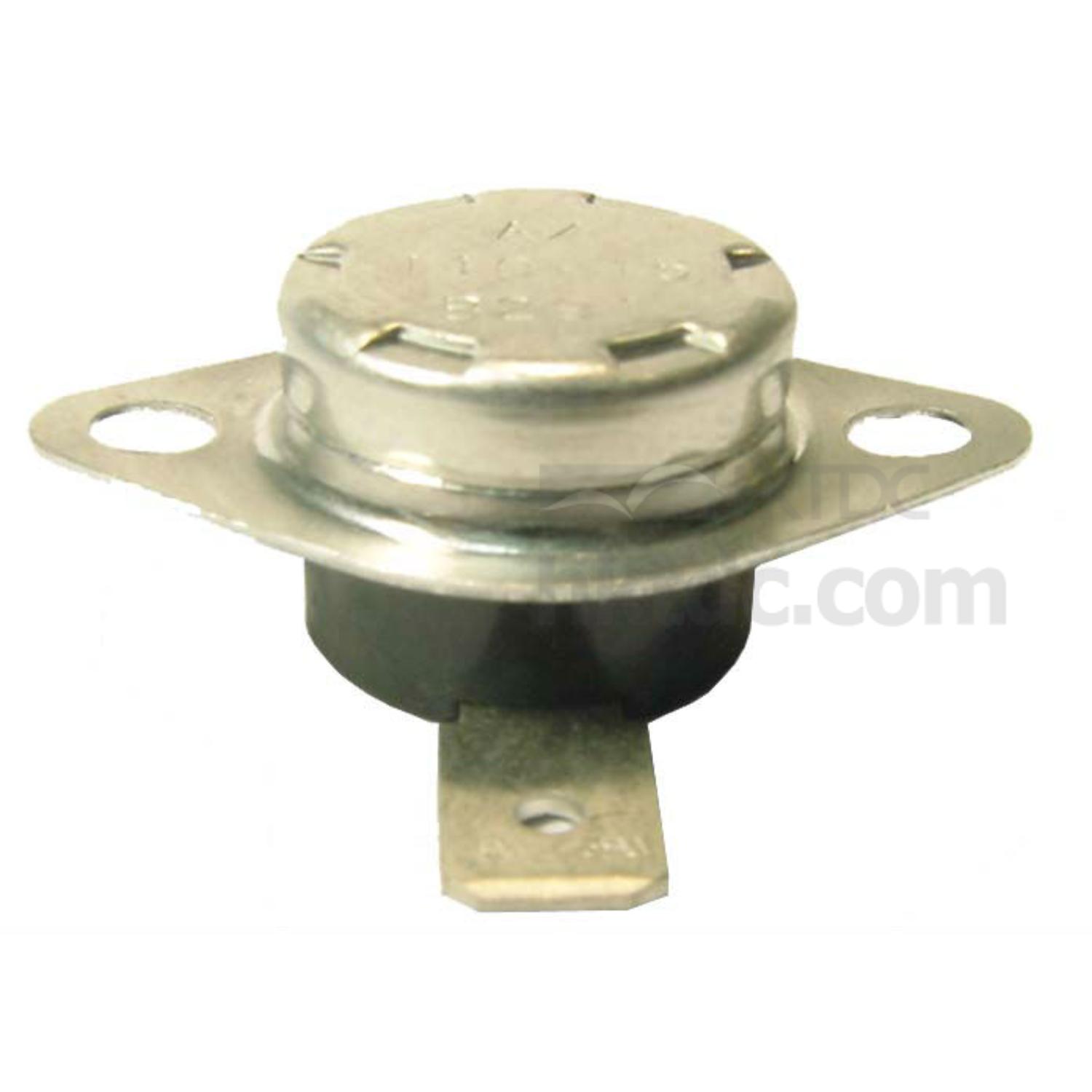

Automatic Reset ksd301 Thermostat
Production Lead Time:
15 day(s)
Model No.:
T24-BF2-TB
Brand:
LC
Port:
Shanghai
Type of Payment:
T/T
Minimum Order Quantity:
500
Operating Temperature:
0~250℃
Max. Current:
16A
Mechanical Life:
100000
Package:
Yes
Customised:
Yes
Max. Voltage:
220
Description
Contact Supplier
Description
The most versatile thermostats.
A wide range of temperature, low temperature till high temperature, can be set according to customer requirements.
CAP / Case material, Bracket type / Terminal Orientation / Terminal Size could be customized based on actual demand. See the bottom for details.
Type: Single pole - single throw
Operating Temp:
UL/CUL: 50℃ - 205℃
VDE: 0℃ - 180℃
CQC: 50℃ - 200℃
Considering three case material: Phenolic / PPS / Ceramic.
Differential: 5℃ or more, Standard: 10℃ - 25℃
Case Material: PPS (could be customized, more options such as Phenolic, Ceramic...)
CAP / Bracket: Aluminum
Height: 9.6 mm (the other option is 12.4 mm)
Electrical Rating:
16A / 250V AC Resistive load
15A / 125V AC Resistive load
10A /2 50V AC Resistive load
Temp Tolerance:
±3℃ or more, Standard: ±3℃ - ±12℃(depend on customer required operating Temp)
Endurance: 100,000 cycles or more
Circuit Resistance: 50mΩ or less
Insulation Resistance: 100MΩ or more (DC 500V)
Dielectric Strength: AC 1,450V
A wide range of temperature, low temperature till high temperature, can be set according to customer requirements.
CAP / Case material, Bracket type / Terminal Orientation / Terminal Size could be customized based on actual demand. See the bottom for details.
Type: Single pole - single throw
Operating Temp:
UL/CUL: 50℃ - 205℃
VDE: 0℃ - 180℃
CQC: 50℃ - 200℃
Considering three case material: Phenolic / PPS / Ceramic.
Differential: 5℃ or more, Standard: 10℃ - 25℃
Case Material: PPS (could be customized, more options such as Phenolic, Ceramic...)
CAP / Bracket: Aluminum
Height: 9.6 mm (the other option is 12.4 mm)
Electrical Rating:
16A / 250V AC Resistive load
15A / 125V AC Resistive load
10A /2 50V AC Resistive load
Temp Tolerance:
±3℃ or more, Standard: ±3℃ - ±12℃(depend on customer required operating Temp)
Endurance: 100,000 cycles or more
Circuit Resistance: 50mΩ or less
Insulation Resistance: 100MΩ or more (DC 500V)
Dielectric Strength: AC 1,450V
