Automatic Spiral Flexible Aluminum Foil Duct Machine
Brand:
TUBE, ATM
Minimum Order Quantity:
1
Description
Contact Supplier
Description

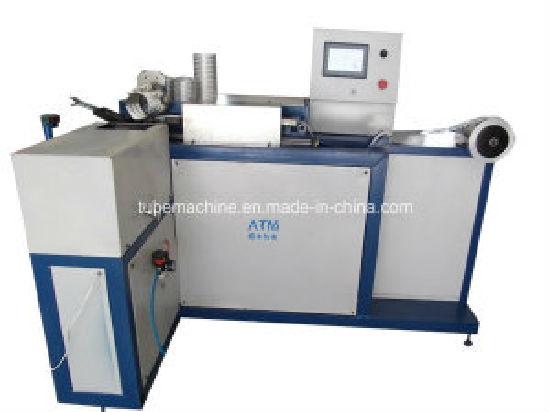

Automatic spiral flexible aluminum foil duct machine
1. Produced by full-automatic.
2. Special moulds for various tube diameters, very easy to change and adjust.
3. Automatic cut to length, any length can be cut according to customer's requirement.
4. High speed synch flying cutting system.
1. Produced by full-automatic.
2. Special moulds for various tube diameters, very easy to change and adjust.
3. Automatic cut to length, any length can be cut according to customer's requirement.
4. High speed synch flying cutting system.
- ATM-A300A Technical Terms: (9-corrugation ridge)
- Forming diameter: 80--300mm
- Pipe length: 500--2000mm(no limit, it can make any length)
- Thickness: 0.05--0.15mm(aluminum)0.035--0.07mm(stainless steel)
- Strip width: 60mm
- Speed: 1--100m/min
- System control: Taiwan MT6070iH WEINVIEW&PLC
- Main power: 1.5kw, 220v, single phase, 50Hz
- Weight: 450kg
- Overall size: 1860*1150*1330mm
- For material: Aluminum foil
- Dimensions of pipe compress machine: 4000x600x1400mm
- Weight of pipe compress: 200kg
