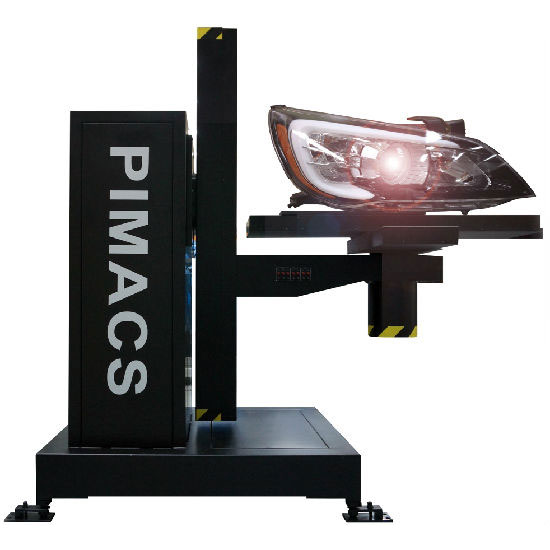

This is an automotive head lamp light measurement system with a black finish. It can measure precisely the distribution of luminous intensity of the lamps by driving two rotation axes and three linear axes. NeoLight 3000A can measure precisely distribution of luminous intensity of various lamps such as car lamps, aeronautical light, marine lamps, etc. by driving Precision Servo Control System of fine-grained resolution.

• Certifications: ECE/ SAE/ KS.
• CIE A/B Type Goniophotometer.
• H · V-axis scanning: ±180deg.
• Scanning resolution: ±0.001deg.
• Sample weight: Max.50kg.
• Sample size: max. length 1,200mm/height 600mm.
• Retroreflectometer module: 30.48m (5%) (optional).
• Rear registration plate measuring module (optional).
• LED PWM lamps measuring module (optional).
