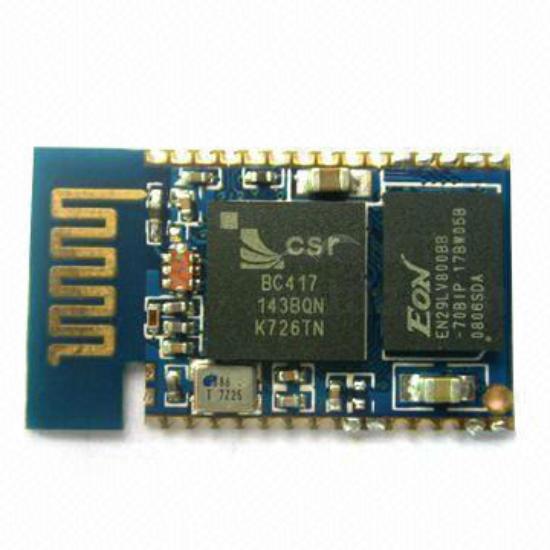

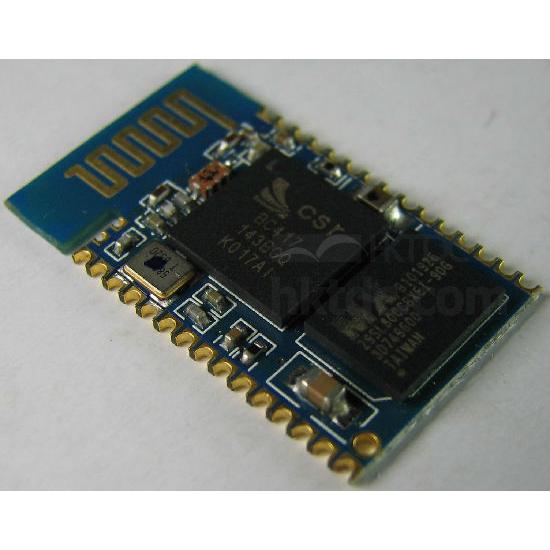

BC04 Programmable Module CLASS2 with Antenna
Production Lead Time:
7 day(s)
Model No.:
BTM182
Brand:
Rayson
Size:
15 x 14.5mm
Port:
Hong Kong
Type of Payment:
TBD
Minimum Order Quantity:
1,000 piece(s)
Description
Contact Supplier
Description
- This is a Bluetooth class 2 (max. 4dBm) module with meander line antenna. It is based on CSR Bluecore 4 chip set which can support Bluetooth V2.1 + EDR standard. With regular SPP profile, the module can support maximum baud rate up to 921.6Kbps at its UART interface. The AT command set allows the host to configure the module or the communication parameters, which makes the module very flexible but easy to use. Beside of the SPP profile, the module is also suitable for data communication applications such as DUN, OPP, FTP, PBAP and HID. Voice applications such as HSP and HFP are also possible by using with external voice CODEC via PCM bus. USB interface is included which can be used as a USB to wireless UART converter.
- The on board meander line antenna safe the costs and eliminated the need of external matching network and, hence safe the testing cost of production.
- RS232 cable replacement.
- Wireless USB to wireless COM port converter.
- Wireless keyboard or Wireless mouse.
- GPS receiver.
- PDA.
- Wireless printer.
- Heath care equipments.
- Industrial applications.
- Flexible and cost effective.
- Low power consumptions of only 80mW.
- Compact Bluetooth stack firmware, easy to use.
- On board meander line antenna.
- Dimension 25 x 14.5 x 2.2mm.
- Bluetooth standard V2.1 + EDR.
- RF power: -6dBm to 4dBm.
- Receiving sensitivity: -82dBm.
- Program flash memory 8M bits.
- Audio interfaces PCM.
- Host interface USB and UART.
- Supply voltage 3.0V – 3.6V.
