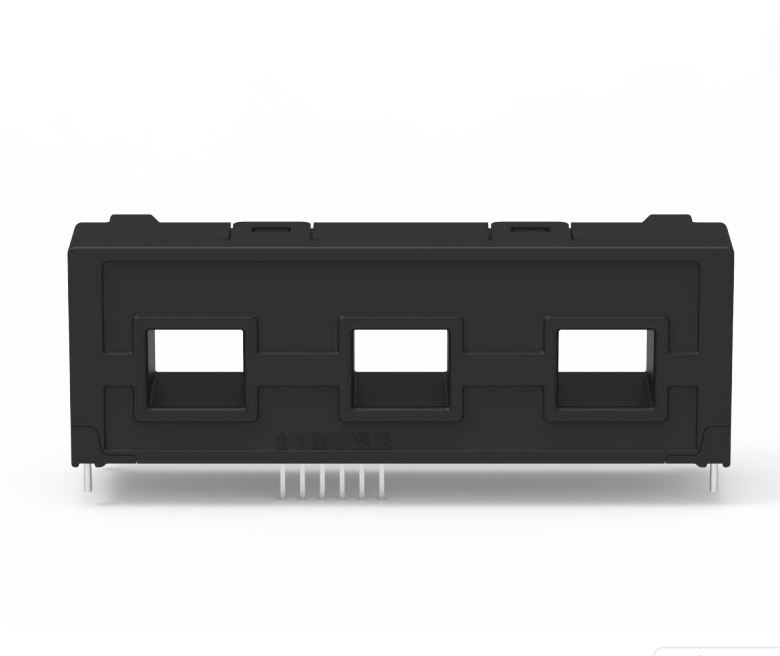

BEAT4V H700 series Hall effect open-loop current sensors are high-performance solutions designed for demanding three-phase

drive systems. Adopting open-loop Hall technology, each sensor integrates three independent primary holes for U/V/W phases,

enabling synchronous and accurate three-phase current measurement. Suitable for EVs, HEVs/PHEVs, elevator control systems,

industrial inverters and servo drives.

BEAT4V H700 series not only delivers precise measurements but also prioritizes personal safety and system reliability. Addressing

the high dv/dt, high common-mode voltages, and long-term operational risks frequently encountered in three-phase drive systems,

the product aligns comprehensively with rigorous international standards—spanning everything from materials and structural design to certification.

Key Security Features

*Transient Impulse Withstand (1.2/50 µs) — Resists switching noise and surges

*Clearance ≥ 11.0 mm, Creepage Distance ≥ 12.5 mm — Meets reinforced insulation requirements

*UL94-V0 Flame-Retardant Housing — Eliminates fire hazards

*CTI = PLC Class I — Suitable for industrial environments with high pollution levels

*3.6kV AC Withstand Voltage (1 min, 50 Hz) — Supports 300V reinforced insulation / 600V basic insulation

applications (Compliant with IEC61800-5-1 CAT III PD2)
