Back-Lit 150*1200mm LED Linear Light | Environmental Protection

Shenzhen Aoto Lighting Co., Ltd

Enquire

Compare & Bulk Enquire

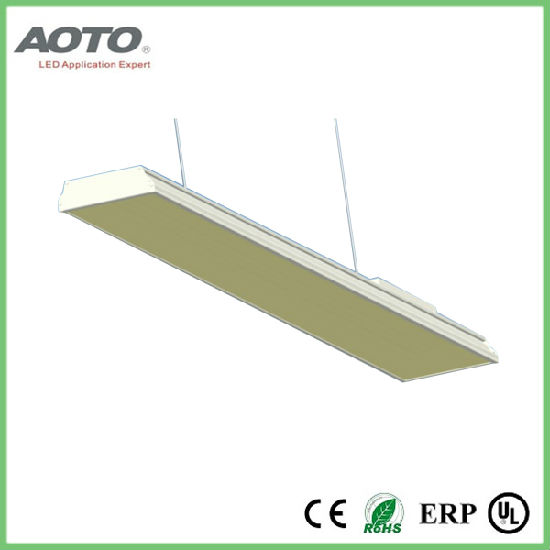

Back-Lit 150*1200mm LED Linear Light

Production Lead Time:

10 day(s)

Model No.:

AT-SPL-S1512S7-024

Brand:

AOTO

Size:

150*1200*50mm

Type of Payment:

T/T, LC, Western Union

Minimum Order Quantity:

100

Voltage(V):

100-240V

Certification:

CE, EMC, LVD, RoHS

Wattage(W):

24W

Warranty:

3 year

Light Source:

LED

Body Material:

Aluminum

Is Dimmable:

Yes

Power Source:

Install Style:

mounted, suspended

Use:

commercial lighting

Description

Contact Supplier

Back-lit LED Linear Light

Characters:
★ Back-lit, 50mm thickness, with internal driver
★ Optimum light uniformity and high color homogeneity
★ LED Source: high brigntness SMD 2835
★ Luminous efficiency: 100lm/W
★ Beam angle: 120dg
★   Lifespan: 50000hrs
★   Installation: Mounted, Suspended
★   Standards: CE, RoHS approved.
★   Heat dissipation: Aluminum PCB and aluminum housing ensure     excellent heat dissipation.
★   Optional dimming: Infrared,0-10v,DALI.

Application:
1. Commercial lighting: high-class stores, shopping malls, hotels, restaurants, airport.
2. Office lighting: Conference, Factories, offices.
3. Institution Buildings: schools,hospitals, pharmacy.

Item No. AT-SPL-S1512S7-024
Electrical Paremeters:
Power 24W
Input Voltage   AC100-240V (50/60Hz)
LED style 240pcs SMD 2835
output current 560mA
output voltage 36V
Power Factor ﹥0.9
Opticall Paremeters:
Luminous output 2100lm@3000K, 2200lm@4000K, 2300lm@6000K
Color Temp (CCT) 3000K/4000K/6000K
Color Rendering   ﹥80
Beam Angle 120dg
Uniformity ﹥90%
Physical Parameter :
Material Aluminium+（Optical）PMMA
Lighting method Back-lit
Power supply internal driver
Operation Temperature -20°C ~ +45°C
Storage Temperature -25°C ~ +55°C
Protect Level IP20
Certificate CE, RoHS
