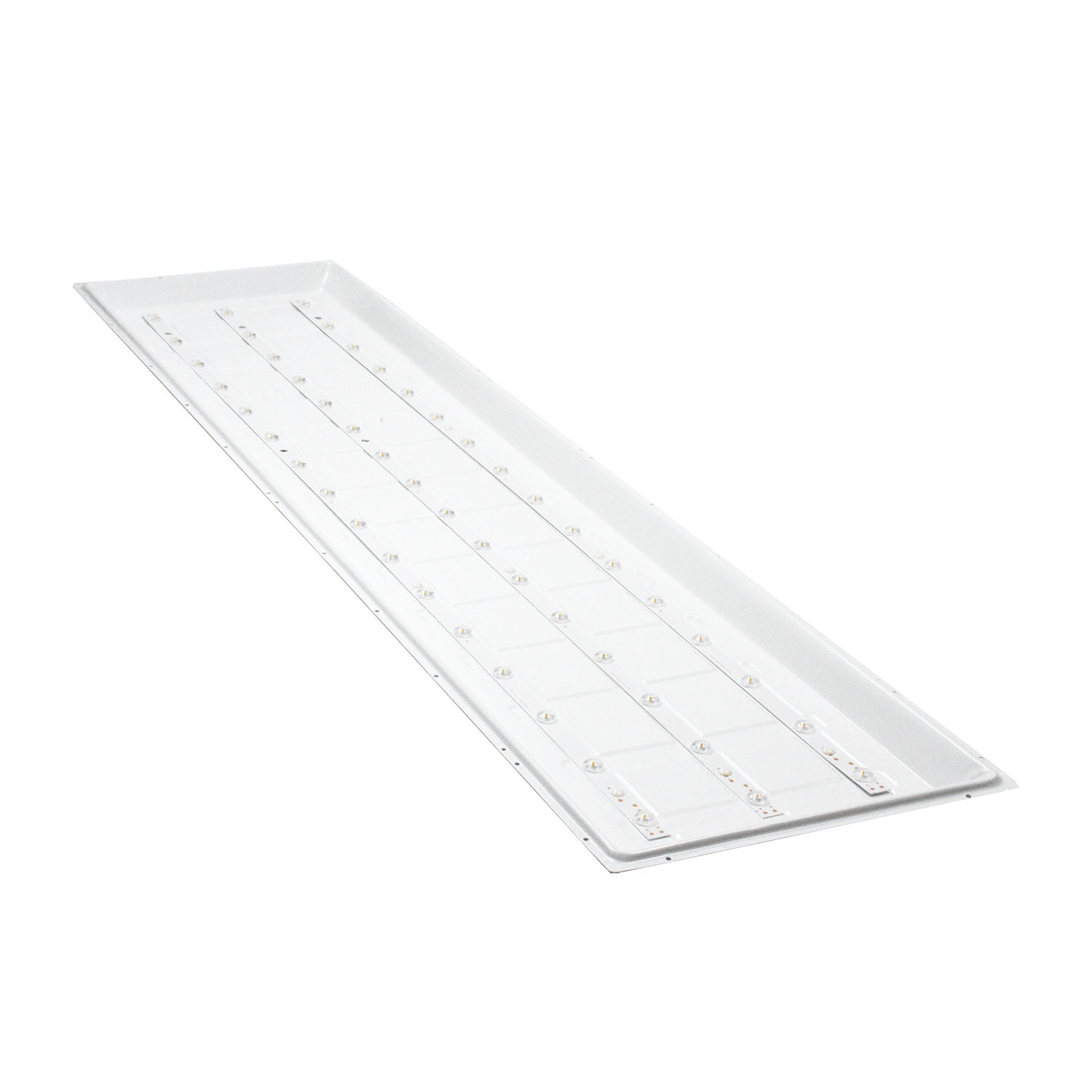

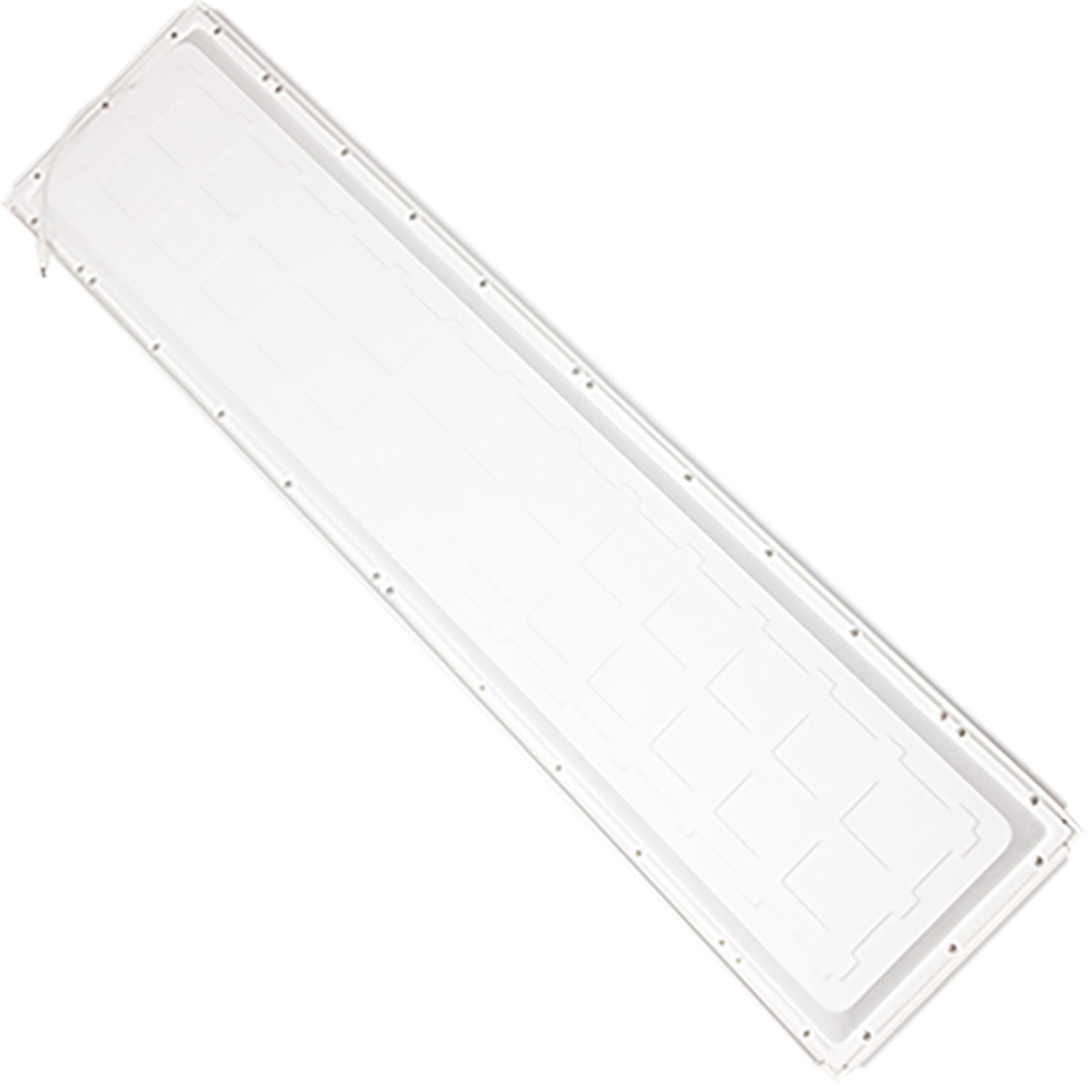

Back-lit LED Panel Light
Production Lead Time:
20-35 day(s)
Shipping Method:
Air Freight, Sea Freight, Express
Input Voltage:
220-240V
Power:
25W, 28W, 30W, 36W
PF:
>0.9
CCT:
Single Color (3000K-5000K),
CRI:
80
IP Rating:
IP20
Beam Angel:
115˚
Lumens Efficiency:
100-140lm/w
Material:
Aluminum
Working Temperature:
-20~50℃
LED Chip:
SMD 2835
Light Body Colour:
White
Installation:
Recessed
Working Frequency:
50/60HZ
Lifetime:
30000Hrs
Application:
Office, Shop, Family etc
Certification:
SAA, C-Tick, CE, LM79, TM21, LCP, ISTMT, LM80
Origin:
Xiamen, China
Description
Contact Supplier
Description
Features
1.Innovative product,Light is even, no dark area.
2. Good quality aluminum, good heat sink.
3. Easy to install. Ideal to be built into system ceilings, offices, and can be used as a hanging fixture.
4. Optional to non-dimmable, 0-10V dimmable, triac dimmable, Dali Dimmable.
5. Approved by SAA, C-tick, CE, RoHs etc.
6. High quality PC diffuser with high light transmittance, anti-glare and easy to be cleaned.
7. High quality lens to promise higher luminous efficiency, can be 140lm/w. And adding the plastic screw on the PCB board to let the PCB won’t be drop down.
8. Ultra-thin lamp body,lighter weight and lower transportation cost. High quality of the back plate to meet good heat sink.
Models
Model | Power | Luminous Efficiency | Luminous | UGR |
SM-SPL12030-25 | 25W | 120lm/w | 3000lm | N |
SM-SPL12030-30 | 30W | 120lm/w | 3600lm | N |
SM-SPL12030-25-U | 25W | 120lm/w | 3000lm | <19 |
SM-SPL12030-30-U | 30W | 120lm/w | 3600lm | <19 |
SM-LPL12030-28 | 28W | 110lm/w | 3000lm | N |
SM-LPL12030-36 | 36W | 110lm/w | 4000lm | N |
Packaging
Model | Net Weight | Gross Weight | Qtys(per carton) | Carton Size |
SM-SPL12030-25, SM-SPL12030-30, SM-LPL12030-28, SM-LPL12030-36 | 11.1KG | 12.6KG | 6pcs | 124X34X23cm |
SM-SPL12030-25-U, SM-SPL12030-30-U | 13.62KG | 15.1KG | 6pcs | 124X34X23cm |
