Back-lit LED Panel Light P30
US $8.55 - US $28.50
US $9.00 - US $30.00
Production Lead Time:
25 day(s)
Shipping Method:
Basic Shipping Method
Brand:
Ervan
Feature:
- Thickness 30mm - No junction box, easy install - High quality aluminum frame- CCT switch option - Power adjustable option
Customised:
Yes
Material:
Aluminum
Including Bulbs:
Yes
Is Dimmable:
No
Light Source:
LED
Lighting Style:
Novelty
Model No.:
P30
Size:
600x600mm 620x620mm 603x603mm 1200x300mm 1200x600mm
Description
Contact Supplier
Description
Standard Size ( Customised size available)
600x600mm
620x620mm
603x603mm
1200x300mm
1200x600mm
Light Source : 2835 SDCM＜ 6 & SDCM＜ 3
CRI Range : 80
CCT Range : WW(3000K) NW(4000K) DW(5000K) CW(6500K)
AC Input : 220-240V 50/60Hz
L80B10 @Ta 40℃: 40000h
Beam Angle : UGR<22 115°; UGR<19 100°
Recommended Installation Height : 2-6M
PF:≥0.95 THD<20% Power Effificiency:≥0.90
Temperature : (Storage : -40~+85°C) (Operating : -25~+40°C
STRUCTURE

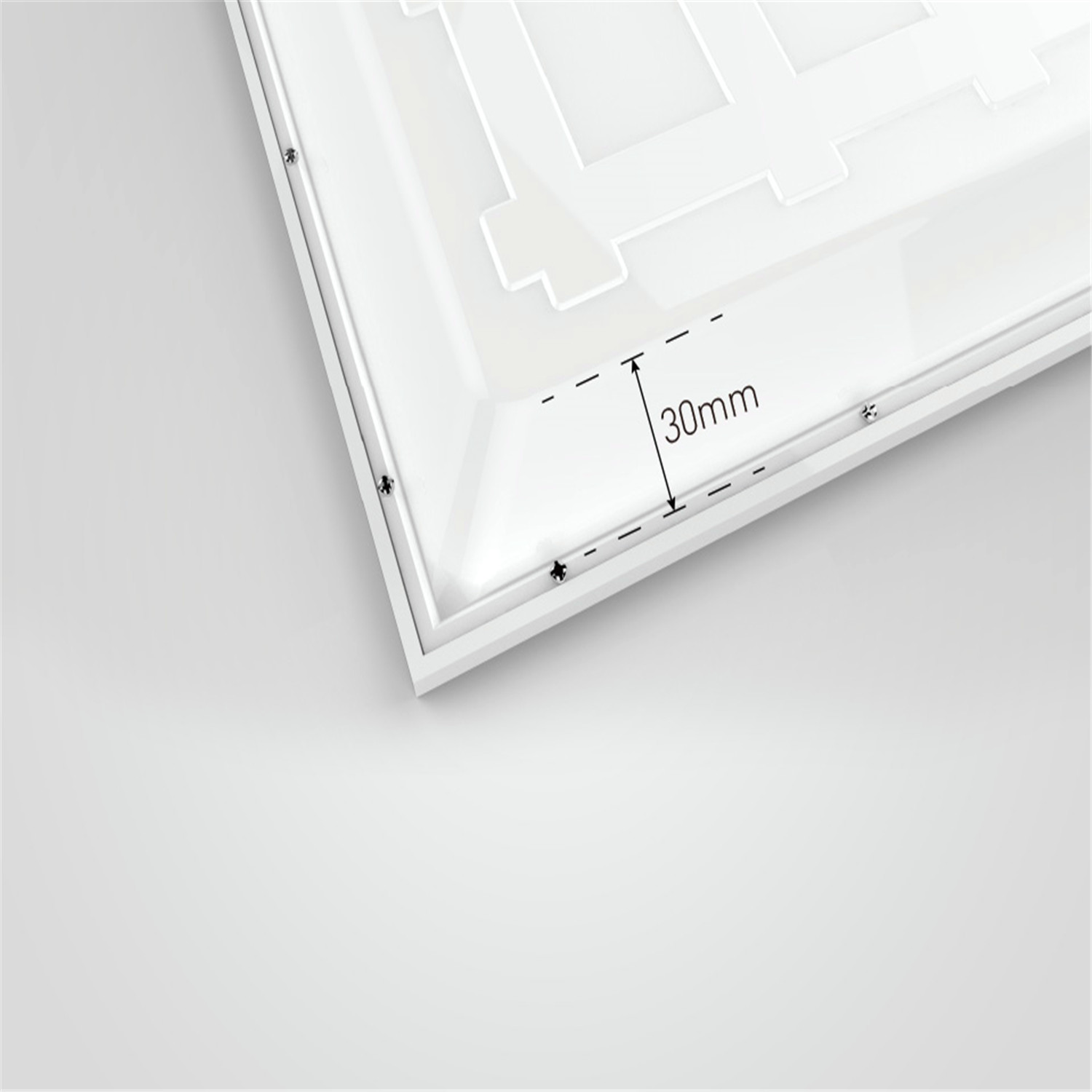

- Thickness 30mm
- No junction box, easy install
- High quality aluminum frame

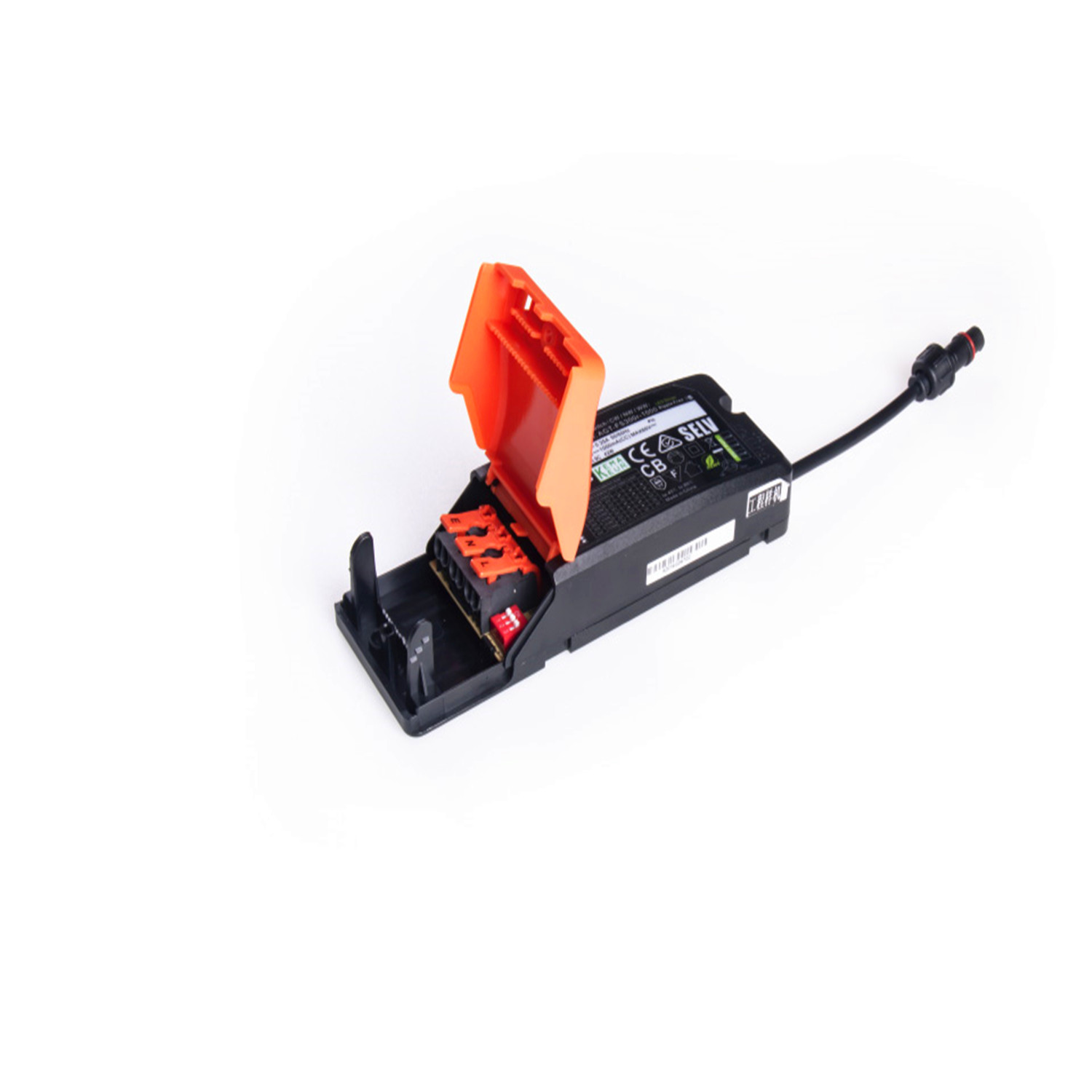

ELECTRONIC
- CCT switch option
- Power adjustable option
OPTICS
UGR<22 and UGR<19 option
PS & PC material option
