Backlite LED Panel Series

Production Lead Time:

30 day(s)

Shipping Method:

by sea

Model No.:

DWB606036H

Input Voltage:

AC200-240V, 50/60HZ

Power:

36W

LED Source:

SMD2835

Color Temp:

3000K/4000K/5700K

CRI:

Ra>80

Power Factor:

>0.9

Optional:

0-10V dimming, Dali dimming, or traic dimming

Certificate:

CE, RoHS, CB, SAA

Warranty Time:

3Years

Payment Terms:

T/T

Supply Ability:

7000pcs per month

Description

Contact Supplier

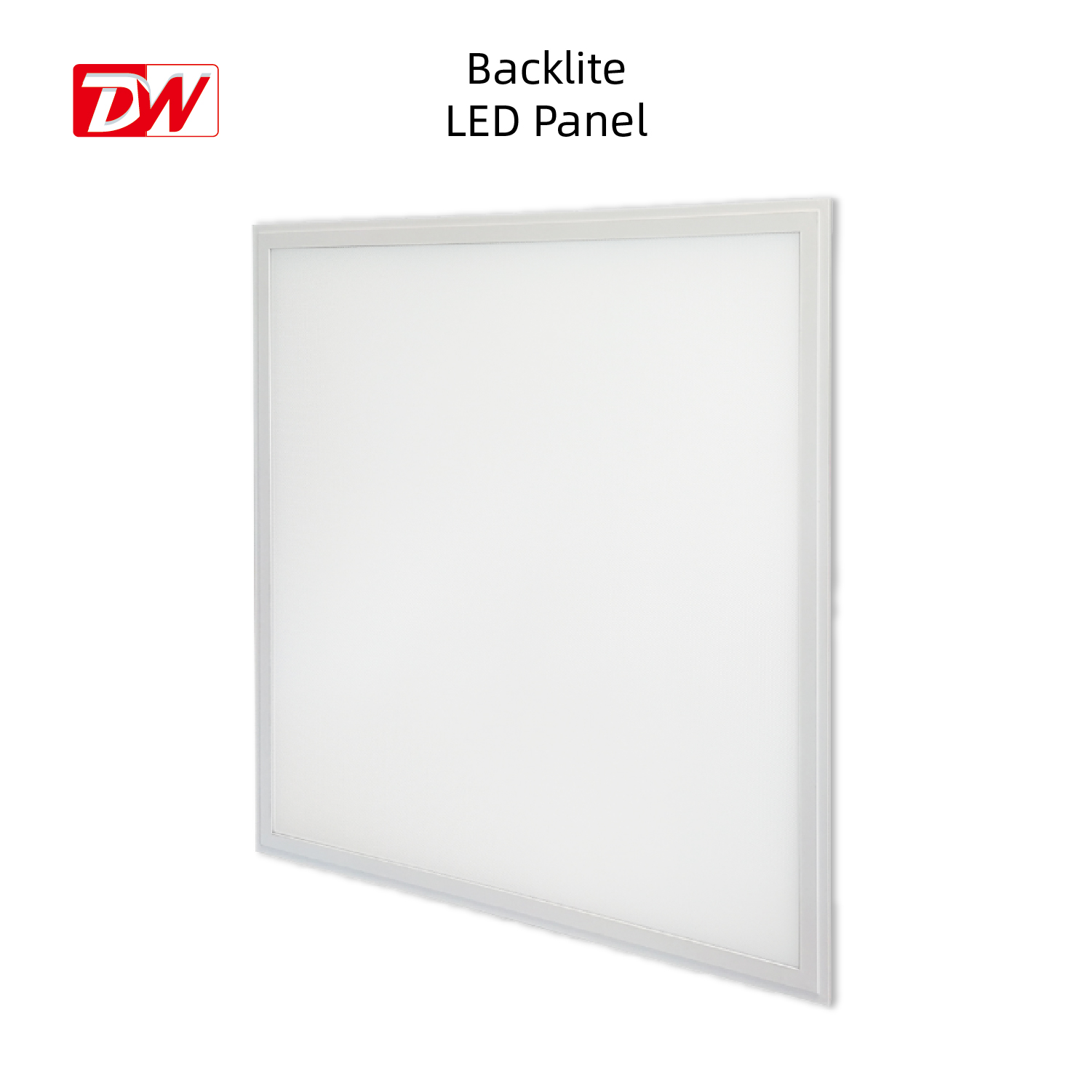

Backlite LED Panel Series

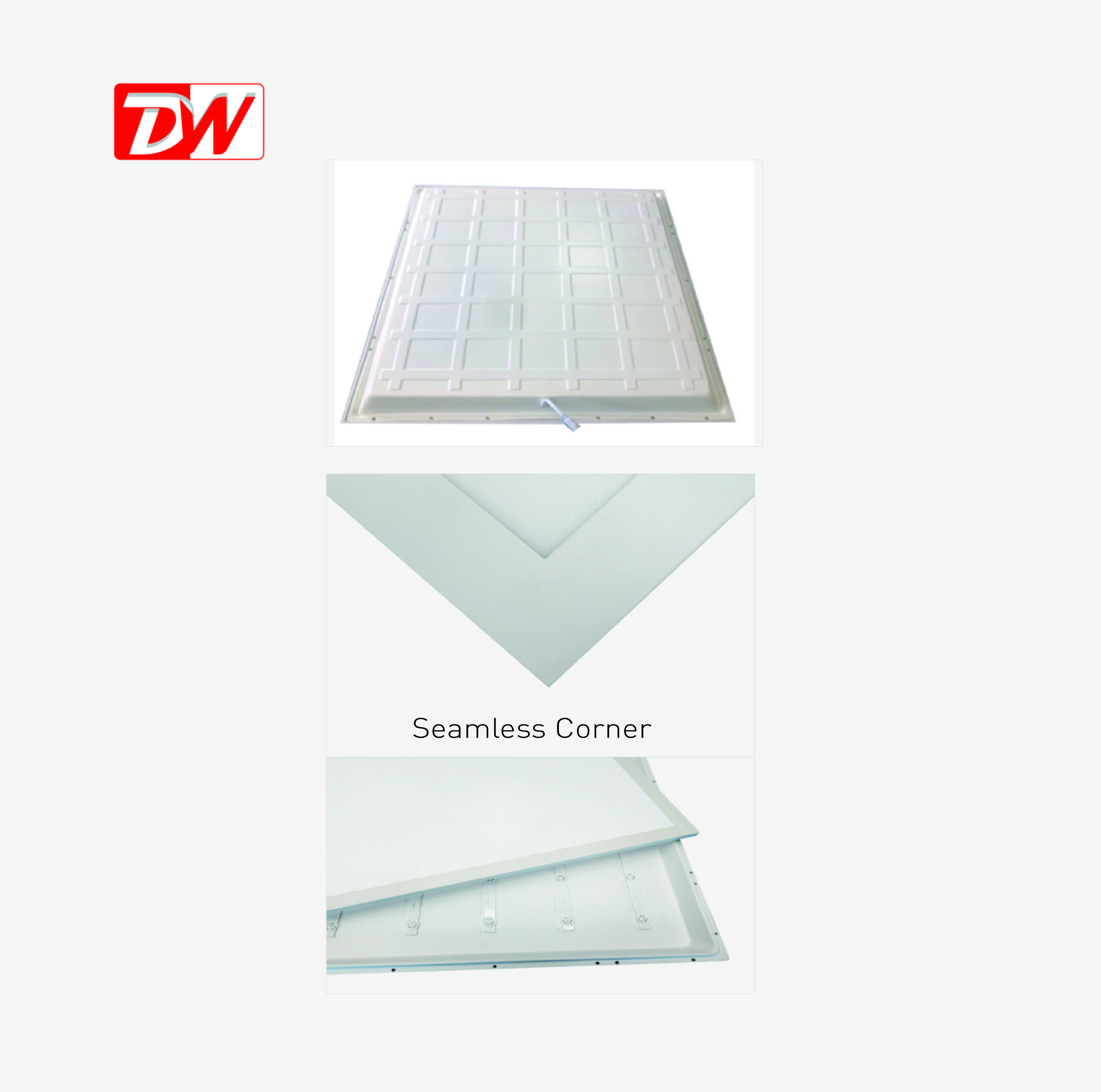

Dolight new design backlite panel light, This light combines innovative optical and mechanical design features to achieve a soft and uniform light distribution. No LGP inside, no worry yellowing, 5 years warranty time with competitive price.

FEATURES

• Competitive price,

• No LGP inside, no yellowing,

• Optical lens design;

• Uniform light distribution,

• Slim thickness 30mm;

• 100lm/W or 120lm/W;

• UGR<19 optional;

◈ ADVANTAGE

TUV Listed CE, CB, and RoHS, SAA,ISO9001;

Competitive price, 5 years warranty time;

Optical lens design;

UGR<19 optional;

High lumen: 120lm/W or 100lm/W optional.

◈ SPECIFICATION

Backlite LED Panel Light
Photometric Parameters
NO.	Project	Parameter
1	LED	SMD2835
2	Luminous Efﬁciency	120 Lm/W
3	CCT	3000K-5700K (warm white, natural white, cool white)
4	CRI	≥80
5	Beam Angle	90°
6	LED Lifespan	≥50000 Hours
Electrical Parameters
7	Driver input voltage	AC220-240V /50-60Hz
8	OutputVoltage	DC30-40V
9	Power Supply Efﬁciency	≥88%
10	Power Factor	≥0.9
11	Protection Class	Class II
General Parameters
12	Rating IP	IP40
13	Material	Aluminum + PMMA
14	Frame Finishing	White

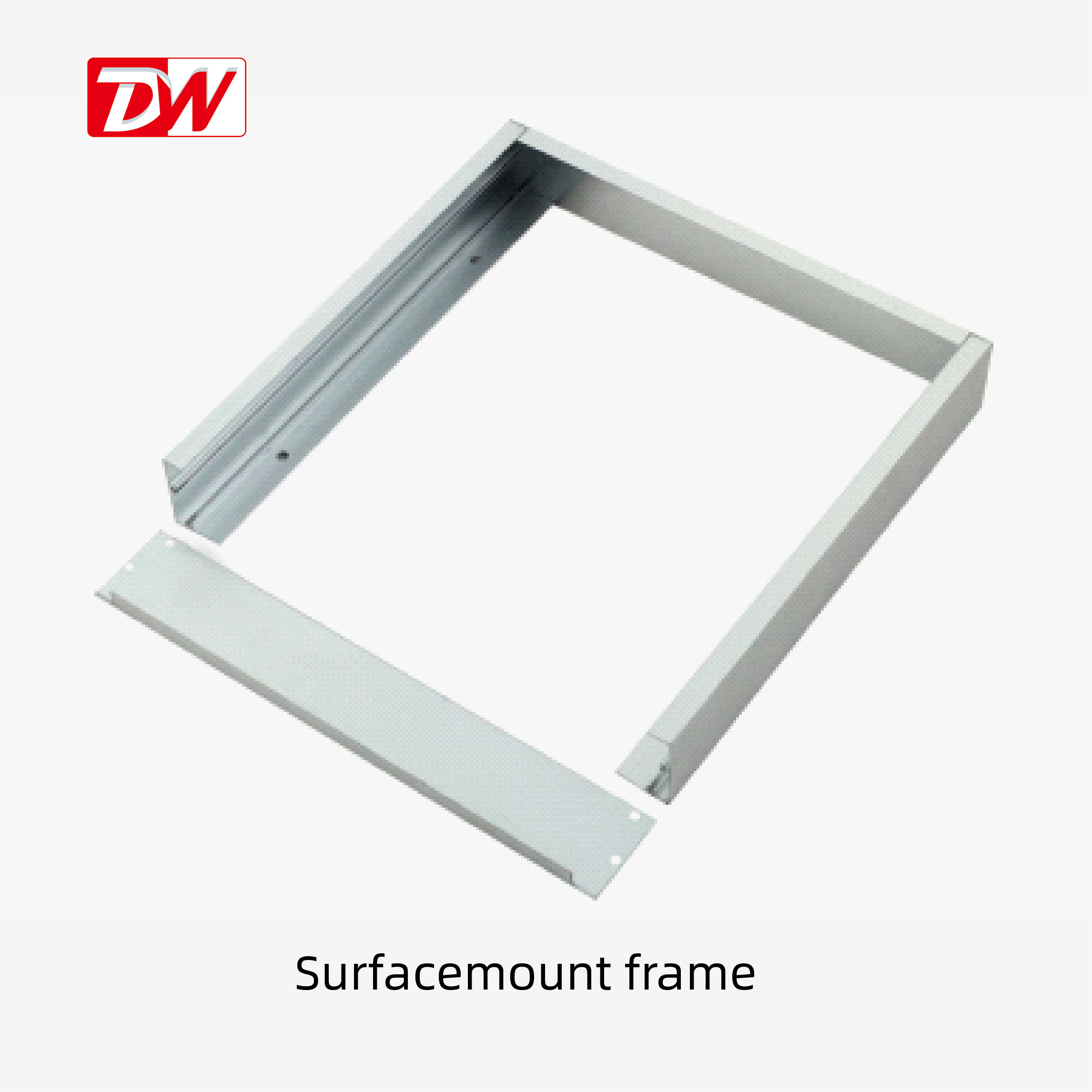

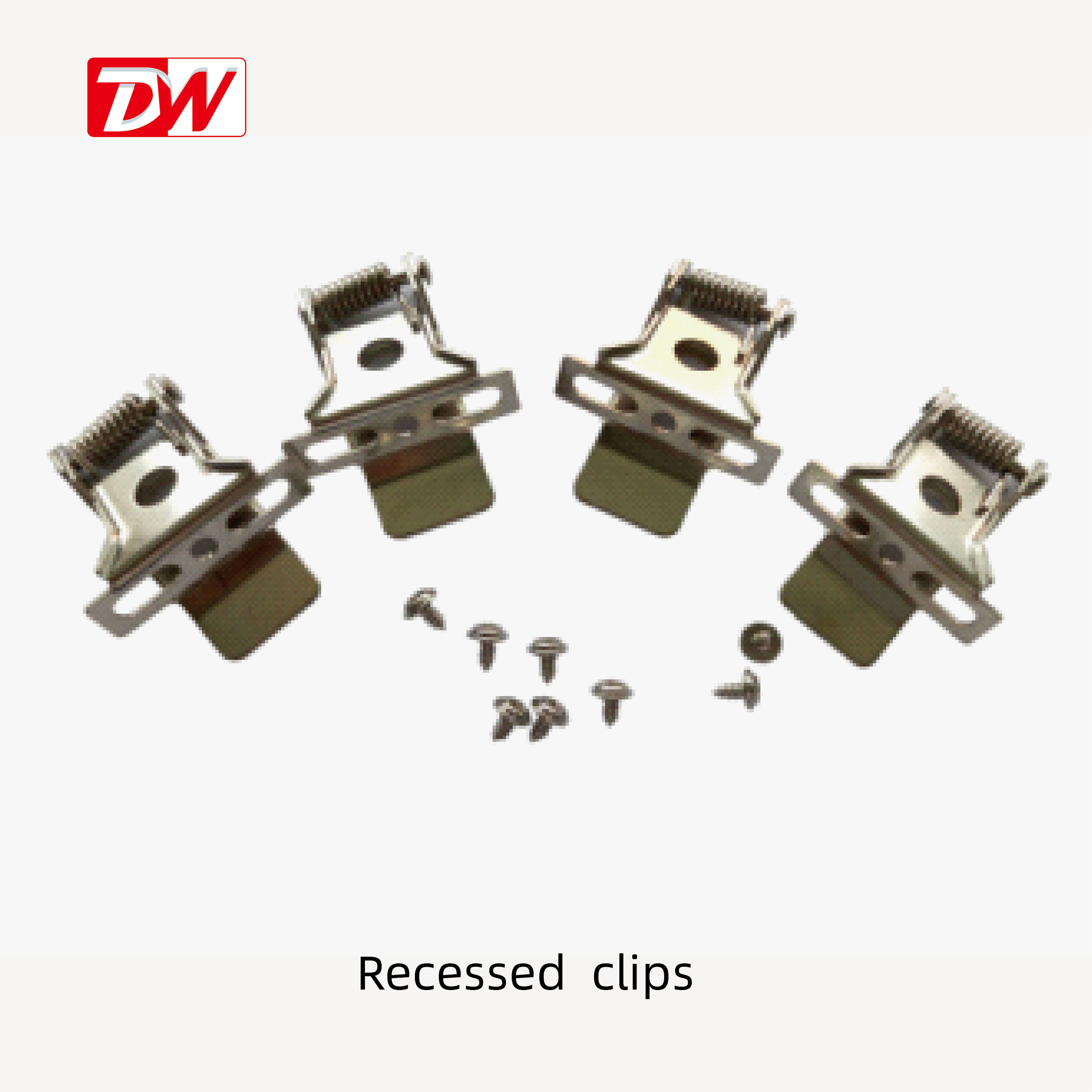

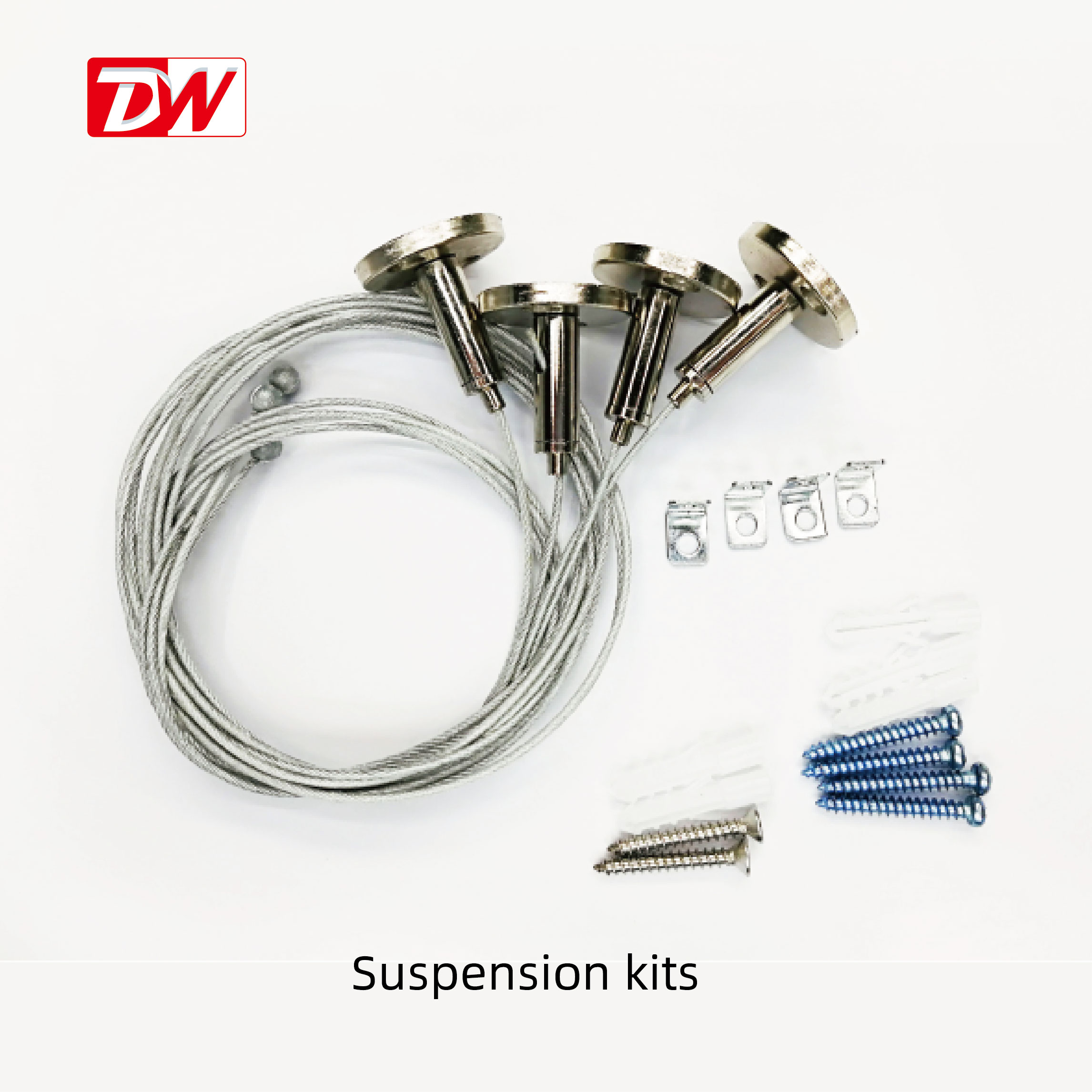

15	Installation	Recessed/Pendant
16	Working Temperature	-20～+45℃
17	Storing Temperature	-40～+60℃
18	Working Humidity	15%~90%RH

◈ SIZE

Efficiency	Model No.	Wattage	Luminous flux	CRI	LED	Dimension
120lm/W	DWB606036H	36W	4320lm	80Ra	SMD2835	595x595x26mm
120lm/W	DWB3012036H	36W	4320lm	80Ra	SMD2835	295x1195x26mm
80lm/W	DWB303018	18W	1440lm	80Ra	SMD2835	295x295x26mm
100lm/W	DWB606036	36W	3600lm	80Ra	SMD2835	595x595x26mm
	DWB3012036	36W	3600lm	80Ra	SMD2835	295x1195x26mm
	DWB6012036	60W	5400lm	80Ra	SMD2835	295x1195x26mm
