Banana Pi M2 ultra Quad core R40 better than Raspberry Pi
Production Lead Time:
1 day(s)
Model No.:
BPI-M2 ultra
Brand:
Sinovoip
Size:
92mm×60mm
Port:
Shenzhen, China
Type of Payment:
PayPal, T/T, Western Union
Minimum Order Quantity:
10
Application:
其他领域
Operating Temperature:
-15℃ to 65℃
Package:
Yes
Customised:
Yes
Supply Voltage:
5v
Description
Contact Supplier
Description
Introduction:

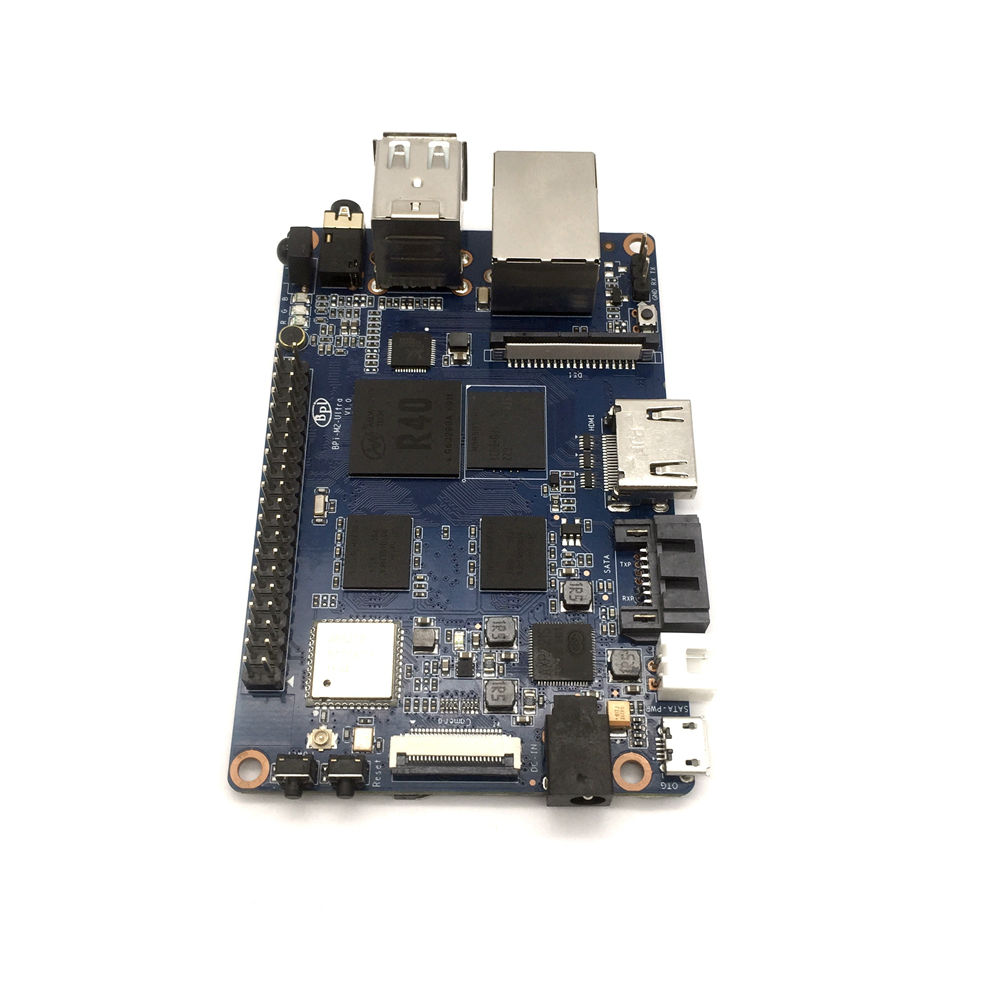

- Banana PI BPI-M2 Ultra is the open source hardware platform, Banana PI BPI-M2 Ultra is an quad core version of Banana Pi,it support WIFI on board. use R40 chip on board. and size only 92mm*60mm
- Banana PI BPI-M2 Ultra series run Android,Debian linux,Ubuntu linux, Raspberry Pi image and others image.
- Banana PI BPI-M2 Ultra hardware: 2GB DDR3 SDRAM, 8G eMMC flash on board,and SDIO wifi&BT4.0 module on board.
- Banana PI BPI-M2 Ultra with Gigabit ethernet port, It can run with Android 6.0 smoothly. it can easily run with the game it support 1080P high definition video output and 4K support, the GPIO compatible with Raspberry Pi B+ and can support raspbian Image
- CPU quad-core cortex -A7 R40
- GPU MALI-400 MP2 @ 500MHz
- Memory 2GB DDR3 SDRAM (shared with GPU)
- Storage Support MicroSD Card(up to 64GB)/eMMC(8GB onboard)
- SATA
- Onboard Network 10/100/1000Mbps ethernet (Realtek RTL8211E/D)
- WiFi 802.11 b/g/n (AP6212)
- Bluetooth BT4.0 (AP6212)
- Video In CSI connector that supports 8-bit YUV422 CMOS sensor CSI, CCIR656 protocol for NTSC and PAL, 5MP camera, 1080p video @30Hz
- Video Out HDMI 1.4 1080P60
- MIPI DSI for RAW LCD panels
- Audio Out 3.5 mm Jack and HDMI
- Audio In On board microphone
- Power Source 5V 2A DC port
- USB Ports 3x USB 2.0, USB OTG(Micro USB)
- Buttons Reset button, Power button, U-boot button
- GPIO 40 Pins: GPIO, UART, I2C bus, I2S bus, SPI bus, PWN, +3.3v, +5v, ground
- LED Power status Led and RJ45 Led
- IR Onboard IR receiver
- OS Android and Linux etc.OS
- Dimensions 92mm x 60mm
- Weight 45g
- Payment Term
- T/T
- Western Union
- Paypal
- Ensuring Quality
- We have our own QC department, so we will check the quality before shipment.
- If any problems on our products, we will offer free repairment, one-year warranty.
