Bluetooth Smart Pen XN690
Model No.:
XN690
Brand:
Nexturn
Colour:
Black
Size:
74mm*27.68mm*11.3mm
Port:
N/A
Type of Payment:
FOB HK
Minimum Order Quantity:
100
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description

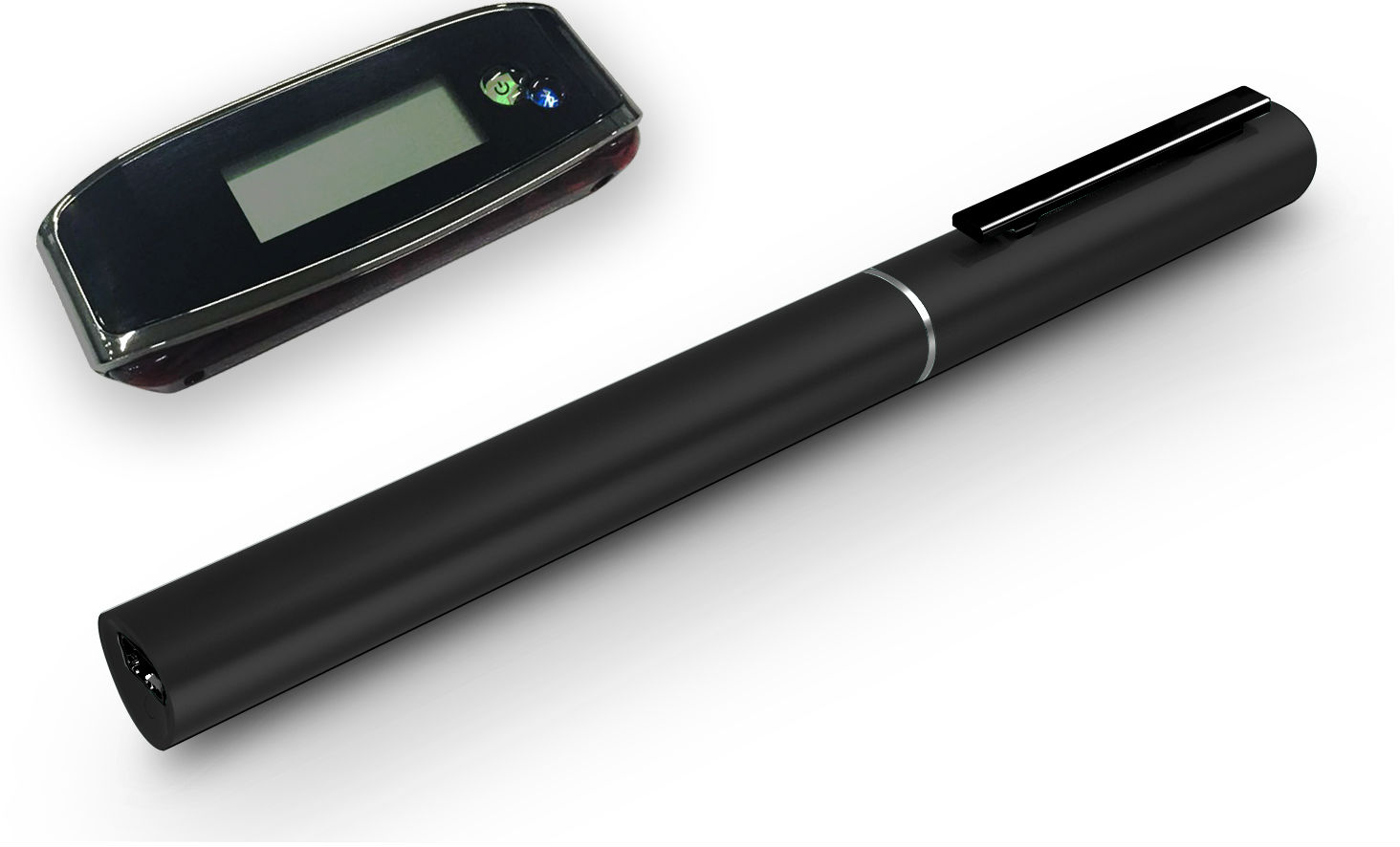

This smart pen helps digitize and save your writings and drawings to the smart devices in real time. Supporting wireless operation via Bluetooth and wired connection with a USB cable, it allows quick image transmission to most devices with easy control. Simply clip the receiver on the paper and jot down on your brilliant ideas.
• Shell material: ABS and PC.
• Flaunt a cool design in all-over black.
• With a clip on the cover.
• Supported devices:
1) iOS device: iPhone 4S or above.
2) Android device: Android 4.3 or above, most brandd’s mobile phones and tablets that includes SAMSUNG, LG, HTC, HUAWEI, LENOVO, MI, OPPO, ViVo and so on, as well as all BLE 4.0.
3) Windows device: Windows XP/7/8/8.1/10 PC (with Micro USB cable connection).
4) Mac: 10.5 or above.
• Support Bluetooth connection with iOS phones and Android phones.
• Connect to Windows PC and Mas with USB cable.
• Writing area: up to A4 size paper.
• Easy to operate by clipping the receiver on the top center of paper and write with smart pen at 2cm under the receiver 2 cm area.
• One power button: press 5s for on/off, 1 sec for save/next page.
• One Bluetooth button: press 1s for on/off.
• With a reset hole.
• Wireless connection with wireless mode and Bluetooth 4.0.
• Real-time transmission and offline saving.
• Transmission rate: 400 Byte/s.
• External port: receiver and pen port and mini USB.
• EMI compliance: CE and FCC.
• Accessories: 1 receiver, 1 smart pen, 1 mini USB cable, 2 refills, 1 ink fill extractor and 1 manual.
• Receiver size (L x W x H): 74mm x 27.68mm x 11.3mm.
• Receiver weight: 27g.
• Pen size: 149.6mm x 14.1mm.
• Pen weight: 19.8g (including refill).
Technical specifications:
• Ultrasonic frequency: 80KHZ±5K.
• Receiver battery type: lithium battery 3.7V.
• Pen battery type: lithium-ion battery 3.7V.
• Battery capacity: 200mAh for the receiver, 45mAh for the pen.
• Refill type: standard metal refill (Φ2.3mm±0.05mm x 67.0mm±0.5mm).
• Charging time: 2 hours.
• Working time: 8-10 hours for the receiver, 60 hours for the pen.
• Standby time: 60 days.
• Operating temperature: 0℃ - +45℃.
• Storage temperature: -20℃ - +55℃.
• Relative humidity for operation: 20% - 90%(25℃).
• Relative humidity for storage: 0% - 93%(25℃).
• Shell material: ABS and PC.
• Flaunt a cool design in all-over black.
• With a clip on the cover.
• Supported devices:
1) iOS device: iPhone 4S or above.
2) Android device: Android 4.3 or above, most brandd’s mobile phones and tablets that includes SAMSUNG, LG, HTC, HUAWEI, LENOVO, MI, OPPO, ViVo and so on, as well as all BLE 4.0.
3) Windows device: Windows XP/7/8/8.1/10 PC (with Micro USB cable connection).
4) Mac: 10.5 or above.
• Support Bluetooth connection with iOS phones and Android phones.
• Connect to Windows PC and Mas with USB cable.
• Writing area: up to A4 size paper.
• Easy to operate by clipping the receiver on the top center of paper and write with smart pen at 2cm under the receiver 2 cm area.
• One power button: press 5s for on/off, 1 sec for save/next page.
• One Bluetooth button: press 1s for on/off.
• With a reset hole.
• Wireless connection with wireless mode and Bluetooth 4.0.
• Real-time transmission and offline saving.
• Transmission rate: 400 Byte/s.
• External port: receiver and pen port and mini USB.
• EMI compliance: CE and FCC.
• Accessories: 1 receiver, 1 smart pen, 1 mini USB cable, 2 refills, 1 ink fill extractor and 1 manual.
• Receiver size (L x W x H): 74mm x 27.68mm x 11.3mm.
• Receiver weight: 27g.
• Pen size: 149.6mm x 14.1mm.
• Pen weight: 19.8g (including refill).
Technical specifications:
• Ultrasonic frequency: 80KHZ±5K.
• Receiver battery type: lithium battery 3.7V.
• Pen battery type: lithium-ion battery 3.7V.
• Battery capacity: 200mAh for the receiver, 45mAh for the pen.
• Refill type: standard metal refill (Φ2.3mm±0.05mm x 67.0mm±0.5mm).
• Charging time: 2 hours.
• Working time: 8-10 hours for the receiver, 60 hours for the pen.
• Standby time: 60 days.
• Operating temperature: 0℃ - +45℃.
• Storage temperature: -20℃ - +55℃.
• Relative humidity for operation: 20% - 90%(25℃).
• Relative humidity for storage: 0% - 93%(25℃).
