Bluetooth on Ear Earphone with LED Indication Light

Production Lead Time:

30-35 day(s)

Shipping Method:

By Sea / Air / Train

Age Group:

Adult

Brand:

ODM / Apking

Colour:

purple / orange / yellow / grey / others

Customised:

Yes

Feature:

LED indication light

Gender:

Unisex

Material:

injection case + injection wire control

Model No.:

18LY08

Weight:

0.02KG/pcs

Driver size:

14MM speaker

Description

Contact Supplier

Bluetooth On-ear Earphone with LED indication light 18LY08
Bluetooth earphone Support telephone function and battery capacity indication
Bluetooth Operating range: 10m (no barriers)
Button functions: volume control, previous/next song, play/pause, talk/ end call.

Driver size: 14MM neodymium / Professional quality speaker for HiFi sound

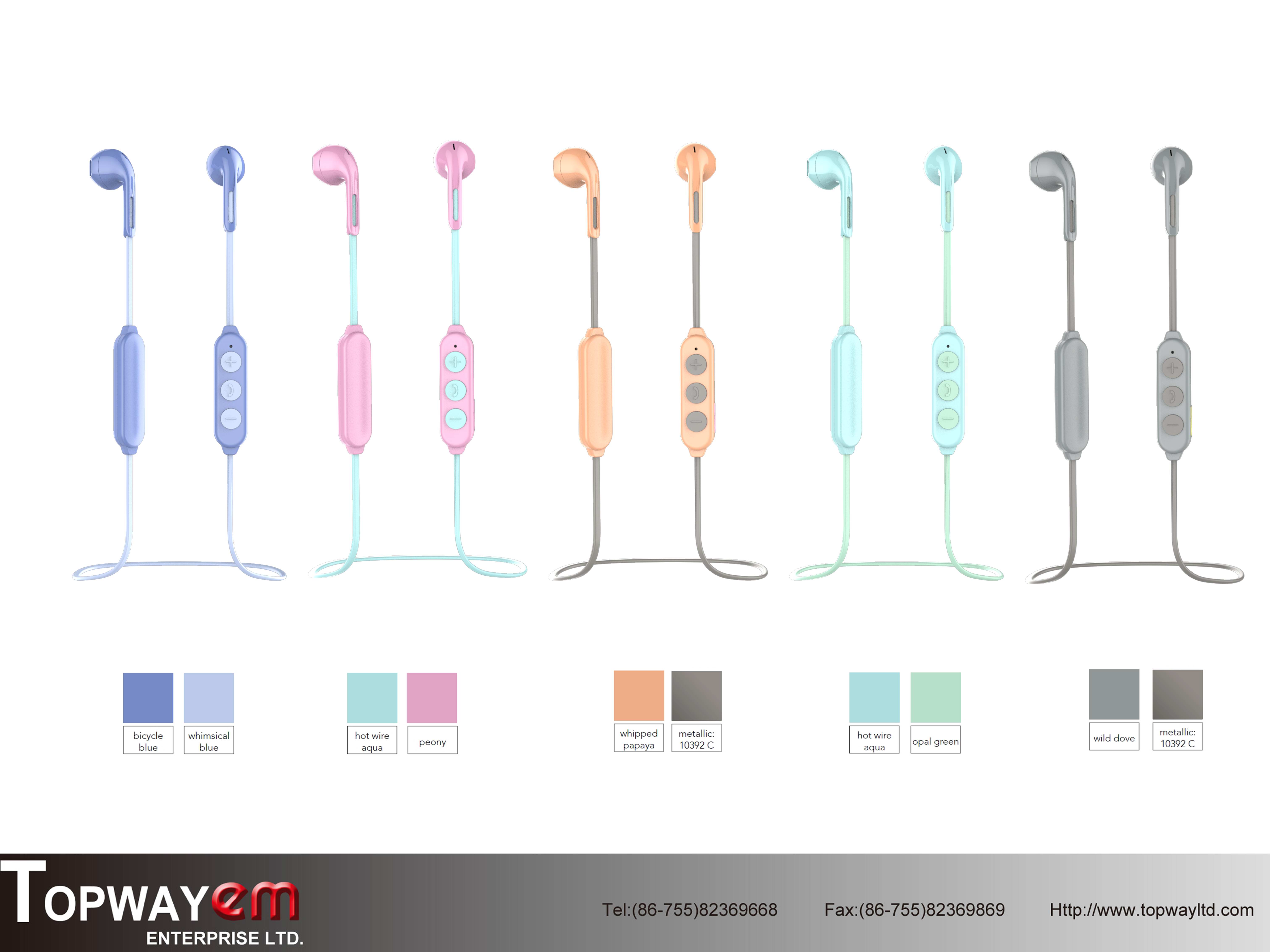

Earphone color: purple / orange / Blue / grey / others
Earphone structure: injection case + injection wire control

ODM logo: 1Cpad printing logo(2pcs)
Bluetooth version chip: NY010 (Beken)/5.0 (playtime:7H)
110MAH rechargeable battery (charging time:1.5H)
Accessories: TPE connected wire,
0.3M micro USB charging cable.
Packing: color box without window,40PCS/carton.

Sample Color Box Package

Technical Data sheet

Items	Description
Bluetooth version	Bluetooth 5.0
Bluetooth profile	HFP A2DP HSP AVRCP
Product type	Stereo Bluetooth Headphone
Working Frequency	2.402GHz-2.480GHz
Product dimension	TBD
Product weight	TBD
Battery capacity	110mAh / 3.7V@401035
Battery type	Rechargeable Lithium battery
Charging current	≤110mA
Charging time	About 1.5 hours
Quiescent current	≤7uA
Standby current	≤0.1-1.5mA
Operating current	≤20mA
Operating current	≤15mA
Playback music time	6.5-7.5hours
Talk time	6.5-7.5 hours
Standby time	Up to 110 hours
Effective communication range	Forward ≥9M ,Backwards ≥7M
Effective music range	Forward ≥10M ,Backwards ≥8M
Receiving sensitivity	>-85dBm
Microphone	42+/-3 dB
Speaker type	Φ14mm
Impedance	32Ω ± 15%
Sound pressure level	107±3dB @1mw 1kHz with IEC318
Frequency response	20 - 20, 000 Hz
Rated input power	3mW
Maximum input power	10mW
Channel balance	≤ 3dB @ 1kHz
Distortion	< 5% @ 1kHz 1mW
Operating temperature	-10~+45ºC
Storage temperature	-20~+60ºC
