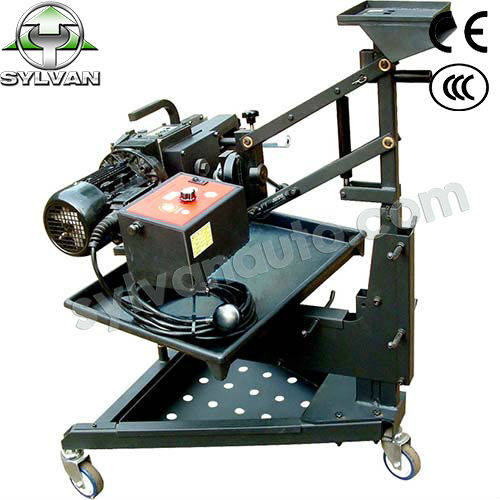

CR0105 Brake Disc Aligner(On the car)
Description
-Provide variable speed and rotation torque during brake machining is a characteristic of this equipment
-The spindle rotation speed swivels within a certain range,this can eliminate the mechanical resonance and enable the machined surface to be smooth
-The 15-hp powerful motor can machine brakes for4-wheel drive automobiles,1t trucks and even medium duty truck's rear wheels easily
-The micro-round cutter blade can undergo knock,it can be rotated by an angle after it has been worn to elongate its service life
-The brake lathe can be rotated180° To machine the automobile at its another side Lt is very convenient use because it is unnecessary to remove the bolts and move the arbor
-The unique twin-arbor design makes it be adjusted conveniently and the machining with high efficiency
-Semiautomatic operation system
-Automatic safety and shutdown system
-Fast connection system
-Intermittent feed mechanism makes the machined surface conform to be the demands of use
Technical Data：

• Max rotor turning diameter：Φ 360 mm
• Max rotor thickness：51 mm
• Max rotor friction surface area：76 mm
• Feed distance：110 mm
• Spindle revolutions：Variable speed 30-120 rpm
• Motor power：3450rpm 1.1kW 1.5Hp
• Electric power：AC220v 50/60Hz 15A

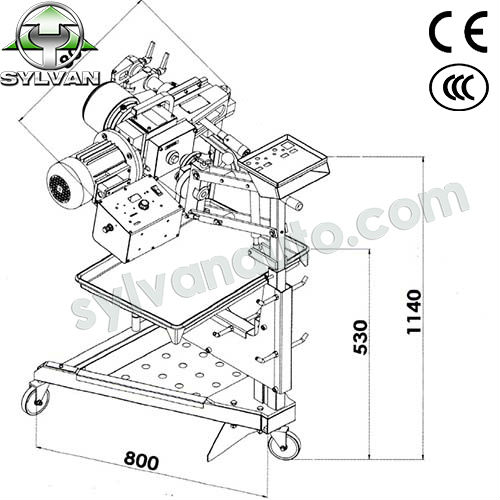

• Overall dimensions (L × W × H)：787 × 457 × 381 mm
• Packing dimensions (L × W × H)：1070 × 970 × 700 mm
• NW / GW：144/194 kg
