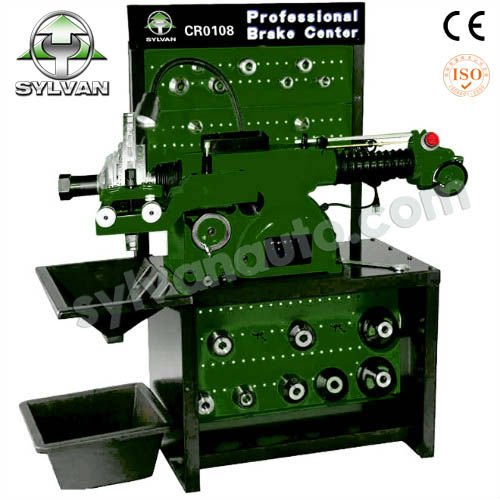

CR0108 Brake Drum/Disc Lathe
Description
Developed and manufactured by us for maintenance of automobile brake drum/disc The machine is Polish in material use, with consummate process, advanced design,pretty appearance, high machining accuracy and efficiency, simple operation and maintenance, provided with perfect molds and clamps for car and light truck suitable for many types of cars Spindle feed adopts advanced infinitely variable speed design Feeding capacity can be adjustable within 005-05 at will, which brings very convenience for you
Main castings of the machine is made of aluminum alloy material, whole machine weight is very light Variable speed gear adopts high quality alloy steel 38 CrMoAl and made of advanced process through nitrogenation, durability.
This machine can use single phase 220V civil electricity upon customer's request and 380V 3pH power electricity design, meanwhile, can design molds for special car type for user.
Available to various types of cars including medium trucks
Features

• -Quickly, accurately and efficiently to cutting rotor
• -Fast and slow setting allow cutting rotor
• -Quickly, accurately and efficiently to cutting drum
• -Finitely adjustably setting allow cutting drum
• -Three kinds of speed to choice for spindle speed
• -A convenient design allows to quickly changing from rotor to drum
• -Position of stop makes the lathe stop automatic after the cutting
• -Fully equipped adapter package

Technical Data

• Model：CR0108
• Spindle Travel：9-7/8" (251mm)
• Spindle speed：70,88,118 rpm
• Spindle feed speed：0.002"-0.02" (0.05-0.5mm)Rev
• Cross feed speed：0.002"-0.01" (0.05-0.25mm)Rev
• Hand wheel graduations：0.002"(0.05mm)
• Rotor diameter：7" -18" (180mm-457mm)
• Rotor thickness：4" (102mm)
• Drum diameter：6" -28" (152mm-711mm)
• Drum depth：9-7/8" (251mm)
• Motor：1HP, OPTIONAL 220 – 240vac, 50-60HZ 1PH (0.75KW)
• Or 3HP, OPTIONAL 380 – 400vac, 50-60HZ 1PH (075KW)
• Gross weight：400 kg
• Dimension (L×W×H)：1100mm ×1070mm×1140mm
