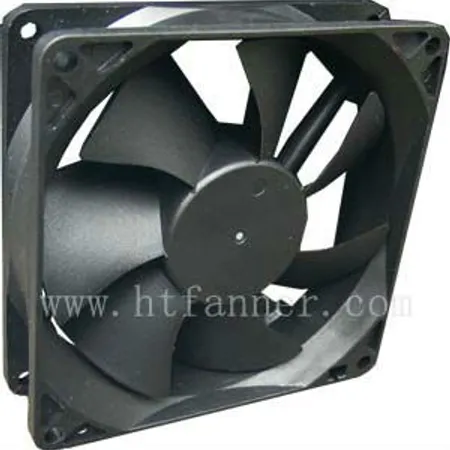

Brushless Fan
Production Lead Time:
10 day(s)
Model No.:
HT-D09225/HT-D09238
Brand:
HUITONG
Colour:
black
Minimum Order Quantity:
500pcs
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description
HTD9225:
- Frame size: 92 x 92 x 25mm/92*92*38mm
- Voltage: 5V/12V/24V
- Bearing type: sleeve bearing/ball bearing
- Speed: 1200RPM-3800RPM
- Safety approvals: CE, TUV, UL, CUL, ROHS
- Electric strength: 1m Amax at 1000VAC for 1 min between lead wire and frame.
- Insulation resistance: 10M ohm between lead wire and frame (DC 500V)
- Life expectancy (ball bearing): 50,000hrs rain at 25 degree C relative humidity 65% +/-20%
- Life expectancy (sleeve bearing): ＞30,000hrs rain at 25 degree C relative humidity 65% +/-20%
- Operation temperature: -10 to 70℃
- Storage temperature: -40 to 75℃
- Lead wire: UL1007 (AWG18-30)
- Protection: motor protection and polarity protection
- Plastic material: black PBT (UL 94v-0) glass filled
