Bulk RG59 Power Siamese Cable
US $90.00 - US $110.00
Production Lead Time:
20 day(s)
Shipping Method:
by sea
Description
Contact Supplier
Description

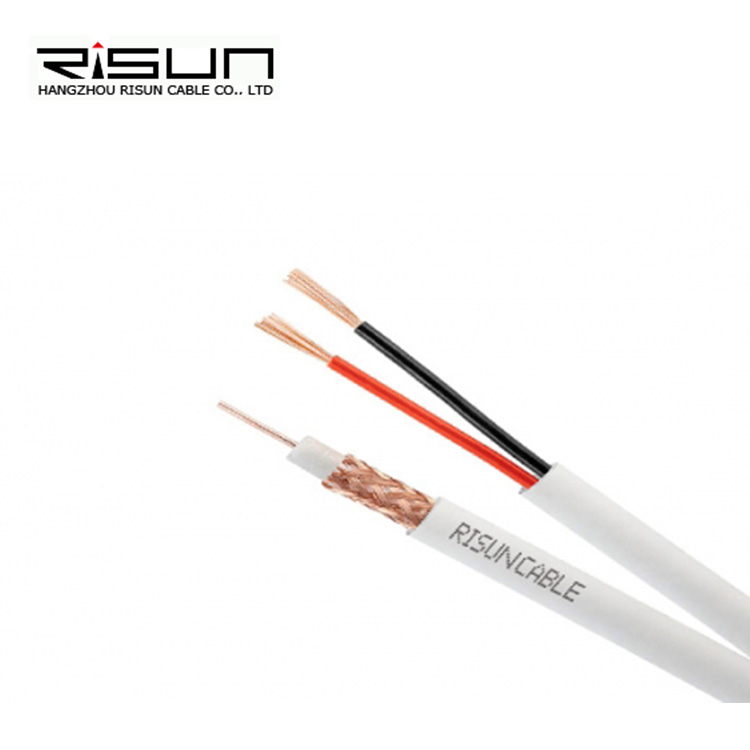

Bulk RG59 Power Siamese Cable
Bulk RG59 Power Siamese Cable | ||||||||||
| DESCRIPTION | ||||||||||
| Outdoor CCTV Camera Installation Cable | ||||||||||
| CABLE CONSTRUCTION | ||||||||||
| RG59 Coaxial cable | ||||||||||
| Conductor | Copper Clad Steel | 0.58+/-0,005 mm | ||||||||
| Insulation | Solid PE | 3.70+/-0,10 mm | ||||||||
| Shield | Copper braid 16 x 8x 0,12m | 95% | ||||||||
| Sheath | PVC | 6.15+/-0,20 mm | ||||||||
| Color | White | |||||||||
| 18AWG x 2C cable | ||||||||||
| Conductor | Stranded bare copper | 32x0,20+/-0,005 mm | ||||||||
| Insulation | PVC ( black/red) | 2.0+/-0,05 mm | ||||||||
| Bending radius | ≥ 8 x Diameter (mm) Installation | |||||||||
Storage temperature | -15℃ + 70℃ | |||||||||
| ELECTRICAL SPECIFICATIONS | ||
| Nominal Impedance | 75+/-3 | Ohm |
| Capacitance approx | 52+/-3 | pF/m |
| Velocity ratio | 85 | % |
| Attenuation at 20°C MHz | dB/100 m | |||
| 50 | 8.1 | |||
| 100 | 11.5 | |||
| 200 | 16.8 | |||
| 400 | 23.5 | |||
| 600 | 30.3 | |||
| 800 | 35.8 | |||
| 860 | 36 | |||
| 1000 | 39.2 | |||
PACKING
305 m / wooden drum
305 m / plastic reel
500 m / wooden drum
All sizes and values without tolerances are reference values. We reserves the right to amend this specification without prior notice.
