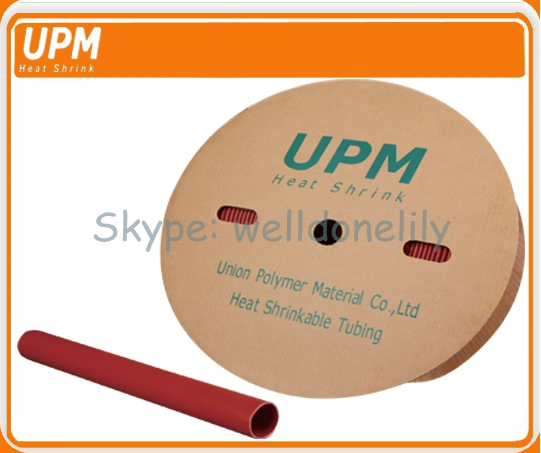

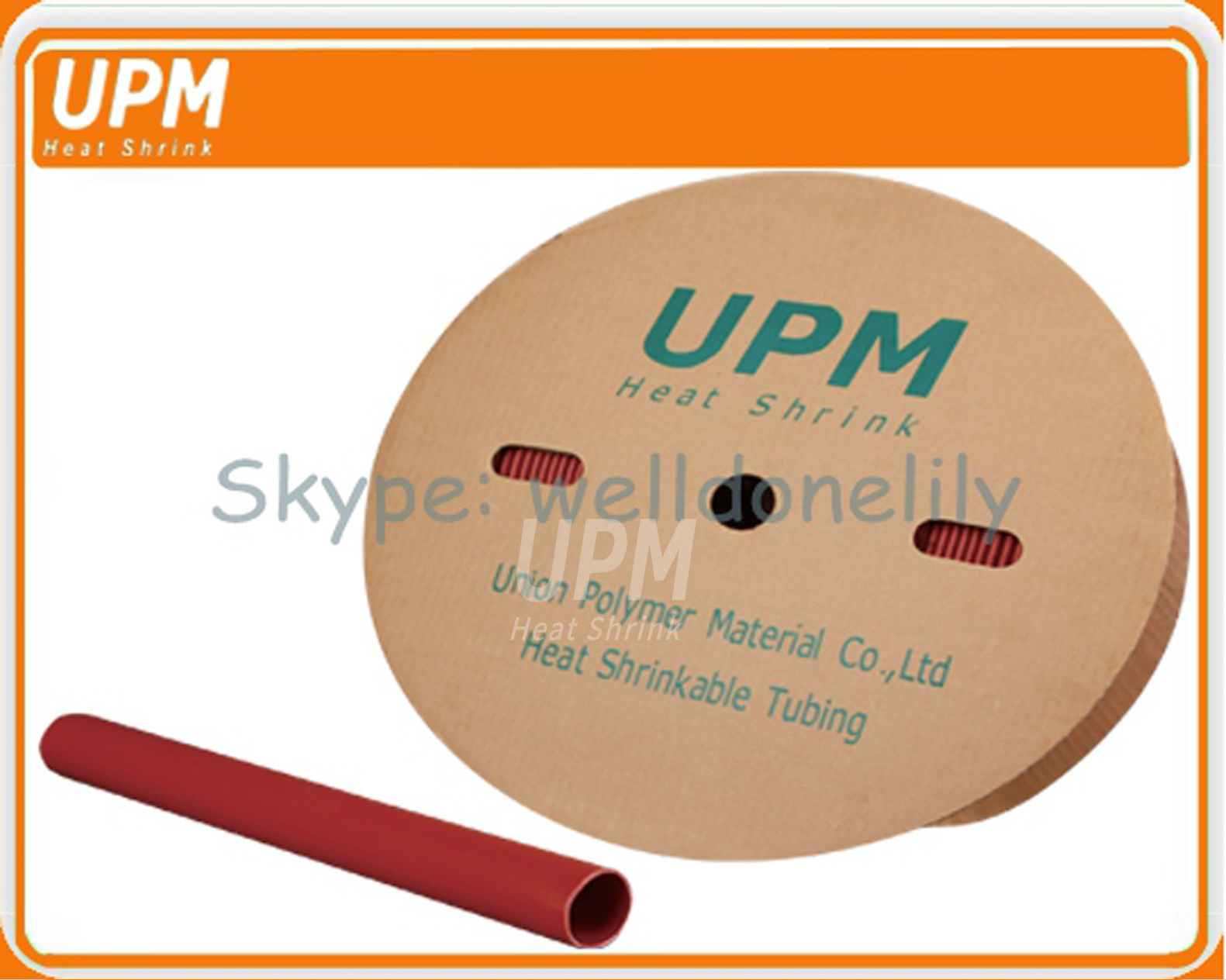

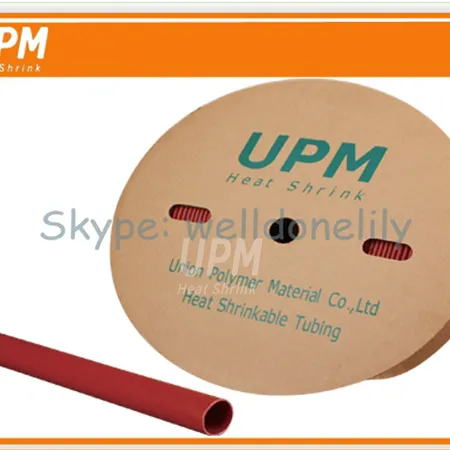

C101 Non-tracking Heat Shrink Tube
Production Lead Time:
28 day(s)
Shipping Method:
by sea
Application:
Suitable for insulation protection of indoor and outdoor power cable terminations or joints.
Brand:
UPM Heat Shrink
Model No.:
C101
Size:
19/6 30/10 38/12 40/16 45/18 55/21 65/28 75/36 85/40 100/40 130/50
Description
Contact Supplier
Description
| C101 Non-tracking Heat Shrink Tube | |||||
| Introduction | |||||
| Cross-linked polyolefin,with or without adhesive liner.Excellent resistance to electrical tracking and creeping corrosion.Suitable for insulation protection of indoor and outdoor power cable terminations or joints. | |||||
| Features | |||||
| Operating temperature: -55 to 105°C | |||||
| Minimum fully recovery temperature: 125°C | |||||
| Voltage class: 6kV ~ 36kV | |||||
| Halogen-free, RoHS compliant, Flame-retardant | |||||
| Single or Dual wall optional | |||||
| Shrink ratio: 2:1 & 3:1 | |||||
| Standard Color: Red, Other colors optional | |||||
| Technical Data | |||||
| Property | Test Method | Requirement | |||
| Tensile Strength | ASTM D2671 | ≥8 MPa | |||
| Ultimate Elongation | ASTM D2671 | ≥200% | |||
| Secant modulus 2% | ASTM D2671 | ≤170 MPa | |||
| Heat Aging (150°C/168h) Tensile Strength Ultimate Elongation | ASTM D2671 | ≥8 MPa ≥100% | |||
| Water absorption (23°C/24h) | ASTM D2671 | ≤0.5% | |||
| Low-temperature flexibility (-40°C/4h) | ASTM D2671 | No cracking | |||
| Heat shock (200°C/4h) | ASTM D2671 | No cracking, dripping or flowing | |||
| Dielectric strength | ASTM D2671 | ≥15 kV/mm | |||
| Volume resistivity | ASTM D2671 | ≥1.0×1012 Ω.cm | |||
| Tracking and erosion resistance | ASTM D2303 | After 1hr at 2.5kV, and 1hr at 2.75kV, and 1hr at 3.00kV, and 20mins at 3.25kV. No burn penetration, no sustained burning | |||
| Flammability | ASTM 2863 | OI ≥25 | |||
| Color fastness to light | IEC 60684-3 | The color does not change between exposed and unpxposed parts | |||
| Dimension | |||||
| Size | As supplied(mm) | After recovered (mm) | Standard length (m/pcs) | ||
| C101 | Inner diameter D (min.) | Inner diameter d (max.) | Wall thickness t (nom.) | ||
| 19/6 | 19 | 6 | 2.5 | 1.22/15 | |
| 30/10 | 30 | 10 | 3.0 | 1.22/15 | |
| 38/12 | 38 | 12 | 3.0 | 1.22/15 | |
| 40/16 | 40 | 16 | 3.0 | 1.22/15 | |
| 45/18 | 45 | 18 | 3.0 | 1.22/15 | |
| 55/21 | 55 | 21 | 3.0 | 1.22/15 | |
| 65/28 | 65 | 28 | 3.0 | 1.22/15 | |
| 75/36 | 75 | 36 | 3.0 | 1.22 | |
| 85/40 | 85 | 40 | 3.2 | 1.22 | |
| 100/40 | 100 | 40 | 3.6 | 1.22 | |
| 130/50 | 130 | 50 | 3.7 | 1.22 | |
