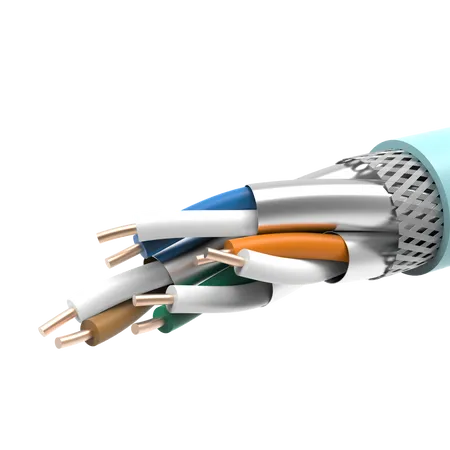

CAT 8 LAN Cable
Brand:
ZHAOLONG
Reference Standards:
IEC 61156-9, ISO/IEC 11801-1, TIA-568.2-D
Conductor:
Solid Bare Copper/ 23 AWG
Insulation Materials:
Skin-foam-skin Polythene
Insulation Diameter:
1.5 mm
Jacket Material:
Low Smoke Zero Halogen(LSZH)
Operating Temperature:
- 30 ℃ ～ 60 ℃
Shielded:
PIMF: Aluminum Foiled
Overall Shield:
Tinned copper
Jacket Diameter:
8.1mm
Transmission Delay Skew:
≤ 25 ns/100 m
NVP:
78 %
Capacitive Unbalance to Earth:
≤ 160 pF/100 m
DC Resistance:
≤ 6.92 Ω/100 m
Unbalance of DC Resistance:
≤ 2 %
Description
Contact Supplier
Description
Advanced shielding technology, National patents (CN105390207A, CN105355317A, CN105390212A).
Designed for 25Gb/s and 40Gb/s Ethernet transmission with a highest frequency of 2000 MHz.
Adopting high-quality copper material to ensure excellent properties of tensile and resistance.
Optimizing the pitch technology of high-speed cable and production technology of skin-foam-skin insulation greatly improves the margin of transmission performance indicators such as crosstalk and return loss, so that obtaining a higher transmission bandwidth.
Products are also comply with the environmental requirements of REACH and RoHS.
