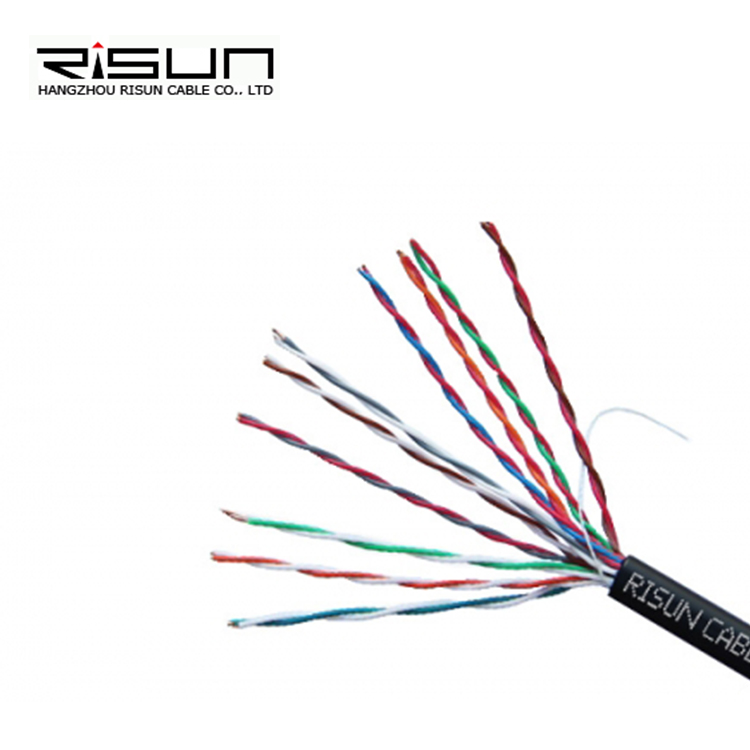

CAT3 10 Pairs 24AWG PVC
US $90.00 - US $110.00
Shipping Method:
by sea
Description
Contact Supplier
Description
DESCRIPTION
Manufactured according to ISO / IEC 11801-2, TIA-568-C.2.
TECHNICAL SPECIFICATIONS
| Conductor | Solid bare copper : 0,50±0.01 mm | ||||||||||
| Insulation | HDPE : 0.87±0.05 mm | ||||||||||
| Identification of pairs White/Blue White/Orange White/Green White/Brown White/Grey Red/Blue Red/Orange Red/Green Red/Brown Red/Grey
| |||||||||||
ELECTRICAL CHARACTERISTICS
nº Pairs.x Ф 100x2x24AWG
Conductor Resistance max.95 Ω/km
Resistance Unbalance max.5%
Cap. between cond. pair 6.6 nF / 100m
Velocity of Propagation 65%
Impendance 100±15 Ω
| Frequency (MHz) | Return Loss ≧dB | ATT ≦dB/100m | Next ≧dB | DELAY ≦ns100m | PS NEXT ≧dB | EL FEXT ≦dB/100m | PS EL FEXT ≧dB/100m |
| 1 | 12.0 | 2.6 | 41.3 | 570.00 | 41.3 | 39.0 | 39.0 |
| 4 | 12.0 | 5.6 | 32.3 | 552.00 | 32.3 | 26.9 | 26.9 |
| 8 | 12.0 | 8.5 | 27.8 | 546.73 | 27.8 | 20.9 | 20.9 |
| 10 | 12.0 | 9.7 | 26.3 | 545.38 | 26.3 | 19.0 | 19.0 |
| 16 | 9.95 | 13.1 | 23.3 | 543.00 | 23.3 | 14.9 | 14.7 |
APPLIANCE
Cable for telephone Voice Wiring.
PACKING
500 m / wooden dum
750 m / wooden drum
1000 m / wooden drum
