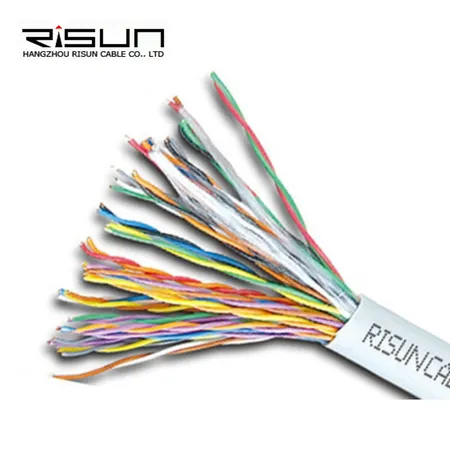

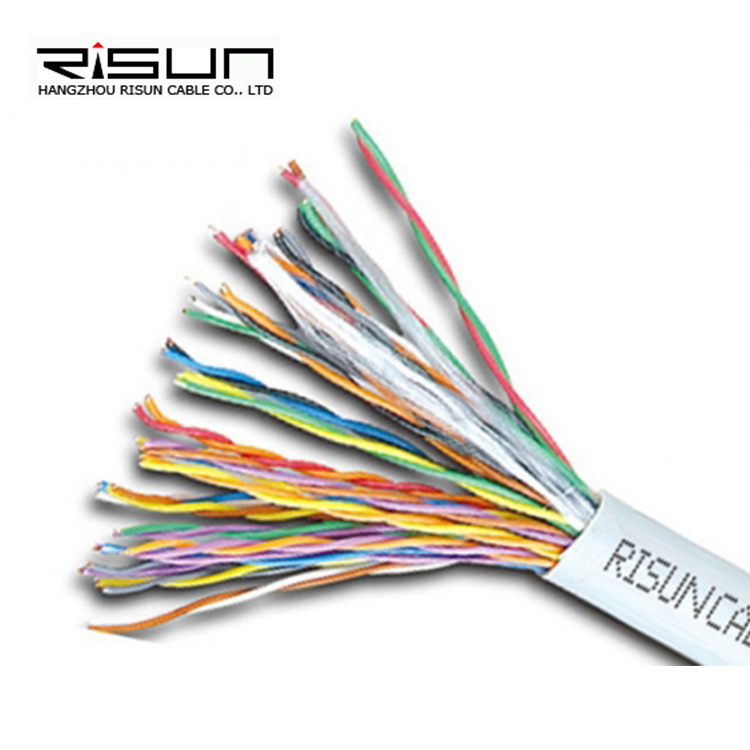

CAT3 50 Pairs 24AWG Cables PVC

US $14.00 - US $19.00

Production Lead Time:

30 day(s)

Shipping Method:

by sea

Description

Contact Supplier

DESCRIPTION

Manufactured according to ISO / IEC 11801-2, TIA-568-C.2.

TECHNICAL SPECIFICATIONS

500 m / wooden drum

750 m / wooden drum

1000 m / wooden drum

ELECTRICAL CHARACTERISTICS

nº Pairs.x Ф 50x2x24AWG

Conductor Resistance max.95 Ω/km

Resistance Unbalance max.5%

Cap. between cond. pair 6.6 nF / 100m

Velocity of Propagation 65%

Impendence 100±15 Ω

Frequency (MHz)	Return Loss ≧dB	ATT ≦dB/100m	Next ≧dB	DELAY ≦ns100m	PS NEXT ≧dB	EL FEXT ≦dB/100m	PS EL FEXT ≧dB/100m
1	12.0	2.6	41.3	570.00	41.3	39.0	39.0
4	12.0	5.6	32.3	552.00	32.3	26.9	26.9
8	12.0	8.5	27.8	546.73	27.8	20.9	20.9
10	12.0	9.7	26.3	545.38	26.3	19.0	19.0
16	9.95	13.1	23.3	543.00	23.3	14.9	14.7

APPLIANCE

Cable for telephone Voice Wiring.

PACKING

500 m / wooden drum

750 m / wooden drum

1000 m / wooden drum

FAQ:

Q:How do you ensure cables quality?
A:Each cable undergoes physical testing in accordance with ISO/IEC 11801 and TIA-568-C.2 standards. Our team monitors every stage of production, with QC inspecting each step to ensure quality.

Q:Are you a manufacturer or trading company?
A:We are a factory.

Q:What is your delivery time?
A:Typically 5-10 days if in stock; 20-30 days for custom orders, depending on quantity.

Q:Do you have an MOQ?
A:Yes, normally 10 km per item.

Q:Do you provide samples? Are they free?
A:Yes, samples are free, but freight charges apply.

Q:How do I place an order for cables?
A:Share your requirements or application.→We provide a quote.→Confirm the sample and place a deposit.→We start production.

Q:Can I print my logo on the cables?
A:Yes, inform us before production.

Q:What are your payment terms?
A:Orders ≤ 60 km: 100% upfront.
Orders ≥ 60 km: 30% deposit, balance before shipment.
