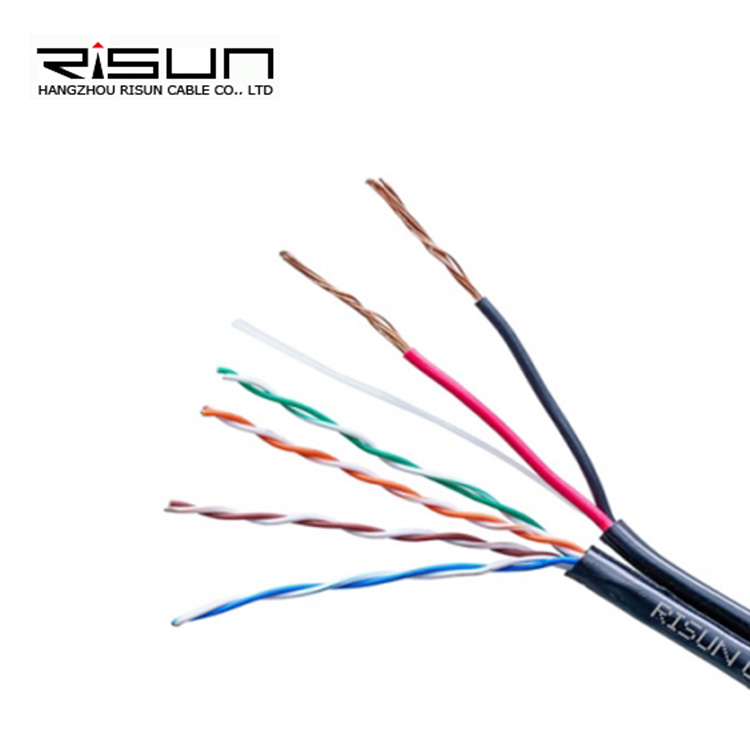

CAT5E + 2 x 18AWG PE
US $130.00 - US $150.00
Production Lead Time:
20 day(s)
Shipping Method:
BY SEA
Description
Contact Supplier
Description
DESCRIPTION
Manufactured according to ISO / IEC 11801-2, TIA-568-C.2, EN-50173.
TECHNICAL SPECIFICATIONS
| U/UTP CAT5E | ||
| Conductor | Solid bare copper : 0,50±0.01 mm | |
| Insulation | HDPE : 0.90±0.05 mm | |
| Identification of pairs | ||
| 1 pair | Blue - White / Blue | |
| 2 pair | Orange - White / Orange | |
| 3 pair | Green - White / Green | |
| 4 pair | Brown - White / Brown | |
| Ripcord | Yes | |
| Sheath | PE | |
| Color | Black | |
| 18AWG 2C | ||
| Conductor | Stranded Bare copper : 18AWG | |
| Insulation | PVC (Black / Red) | |
| Bending radius | ≥ 8 x Diameter (mm) Installation | |
| Operating temperature | -15℃—+70℃ | |
ELECTRICAL CHARACTERISTICS
nº Pairs.x Ф 4x2x24AWG
Conductor Resistance max.95 Ω/km
Resistance Unbalance max.4%
Cap. between cond. pair 5nF / 100m
Velocity of Propagation 69%
Impendance 100±15 Ω
| Frequency (MHz) | Return Loss ≧dB | ATT ≦dB/100m | Next ≧dB | DELAY ≦ns100m | PS NEXT ≧dB | EL FEXT ≦dB/100m | PS EL FEXT ≧dB/100m |
| 1 | 20.0 | 2.4 | 65.3 | 570.00 | 62.3 | 63.8 | 60.8 |
| 4 | 23.0 | 4.1 | 56.3 | 552.00 | 53.3 | 51.8 | 48.0 |
| 8 | 24.5 | 5.8 | 51.8 | 546.73 | 48.8 | 45.7 | 42.7 |
| 10 | 25.0 | 6.5 | 50.3 | 545.38 | 47.3 | 43.8 | 40.8 |
| 16 | 25.0 | 8.2 | 47.2 | 543.00 | 44.2 | 39.7 | 36.7 |
| 20 | 25.0 | 9.3 | 45.8 | 542.05 | 42.8 | 37.8 | 34.8 |
| 25 | 24.3 | 10.4 | 44.3 | 541.20 | 41.3 | 35.8 | 32.8 |
| 31.25 | 23.6 | 11.7 | 42.9 | 540.44 | 39.9 | 33.9 | 30.9 |
| 62.5 | 21.5 | 17.0 | 38.4 | 538.55 | 35.4 | 27.9 | 24.9 |
| 100 | 20.1 | 22.0 | 35.3 | 537.60 | 32.3 | 23.8 | 20.8 |
APPLIANCE
HDTV
• Multimedia
• DBS
• Voice
• CATV
• Data
• CCTV
• High Speed Internet
• Distributed Video
• Networking Computing
• Distributed Audio
• Security Monitoring
• Energy Monitorin
PACKING
100 m / reel
305 m / wooden drum
500 m / wooden drum
1000 m / wooden drum
