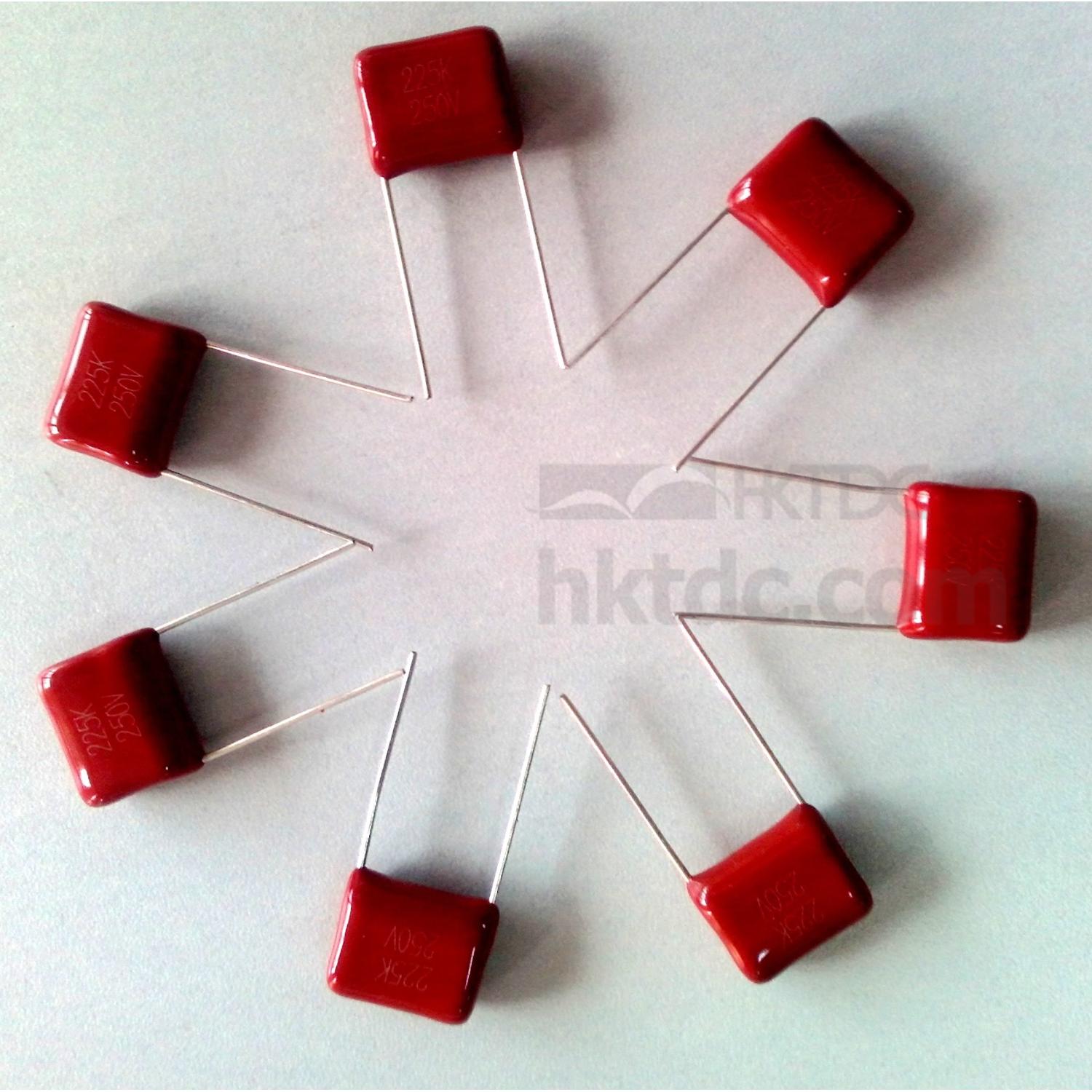

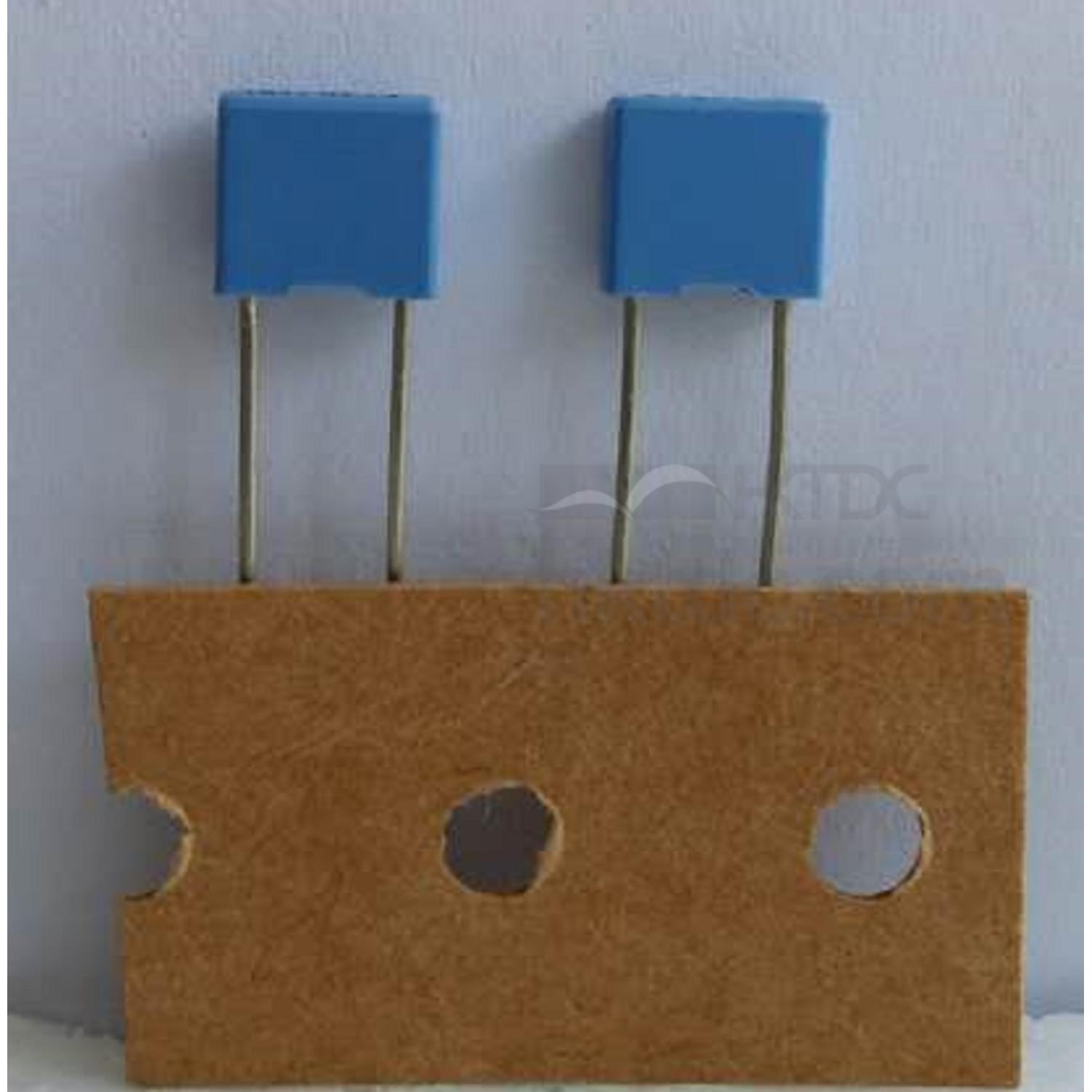

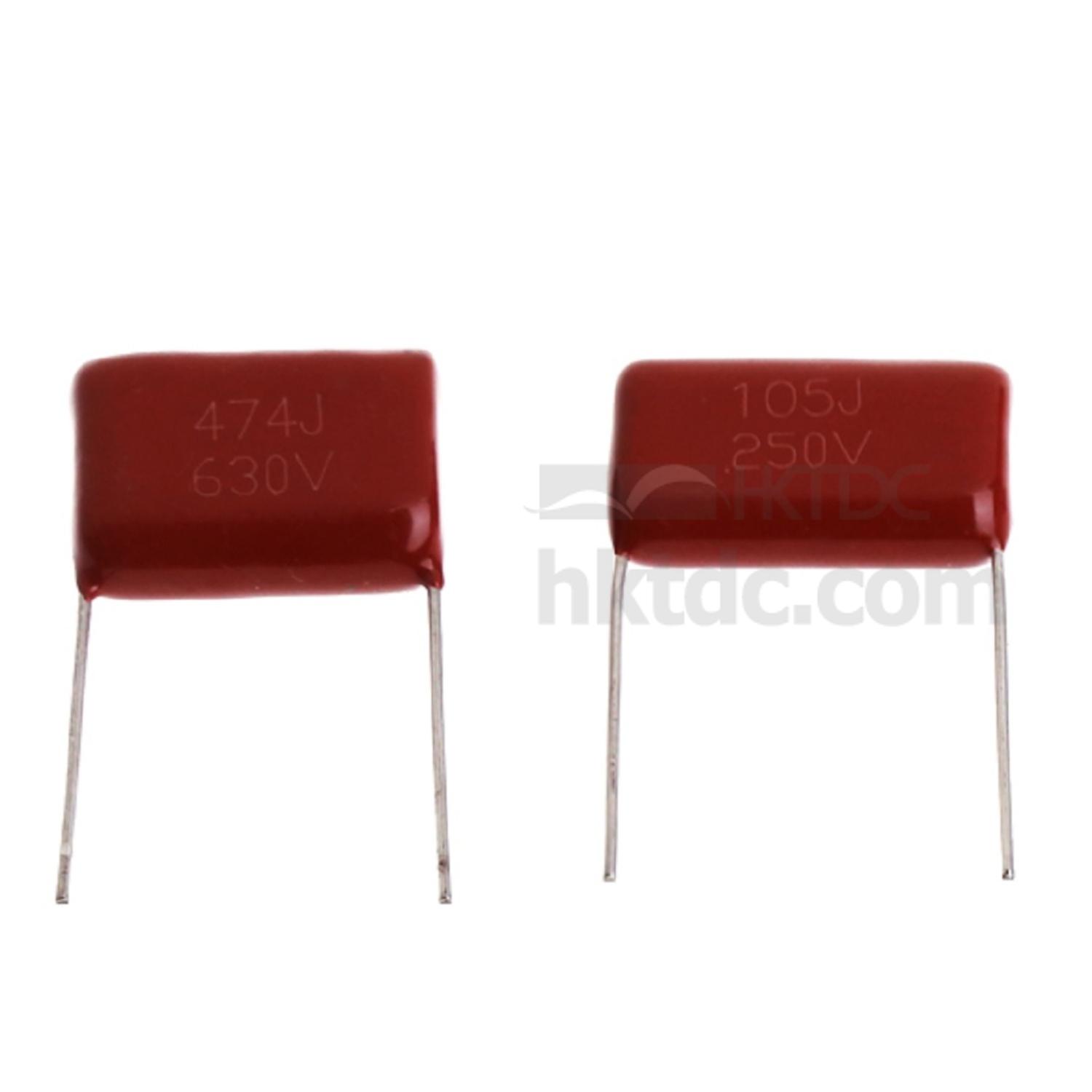

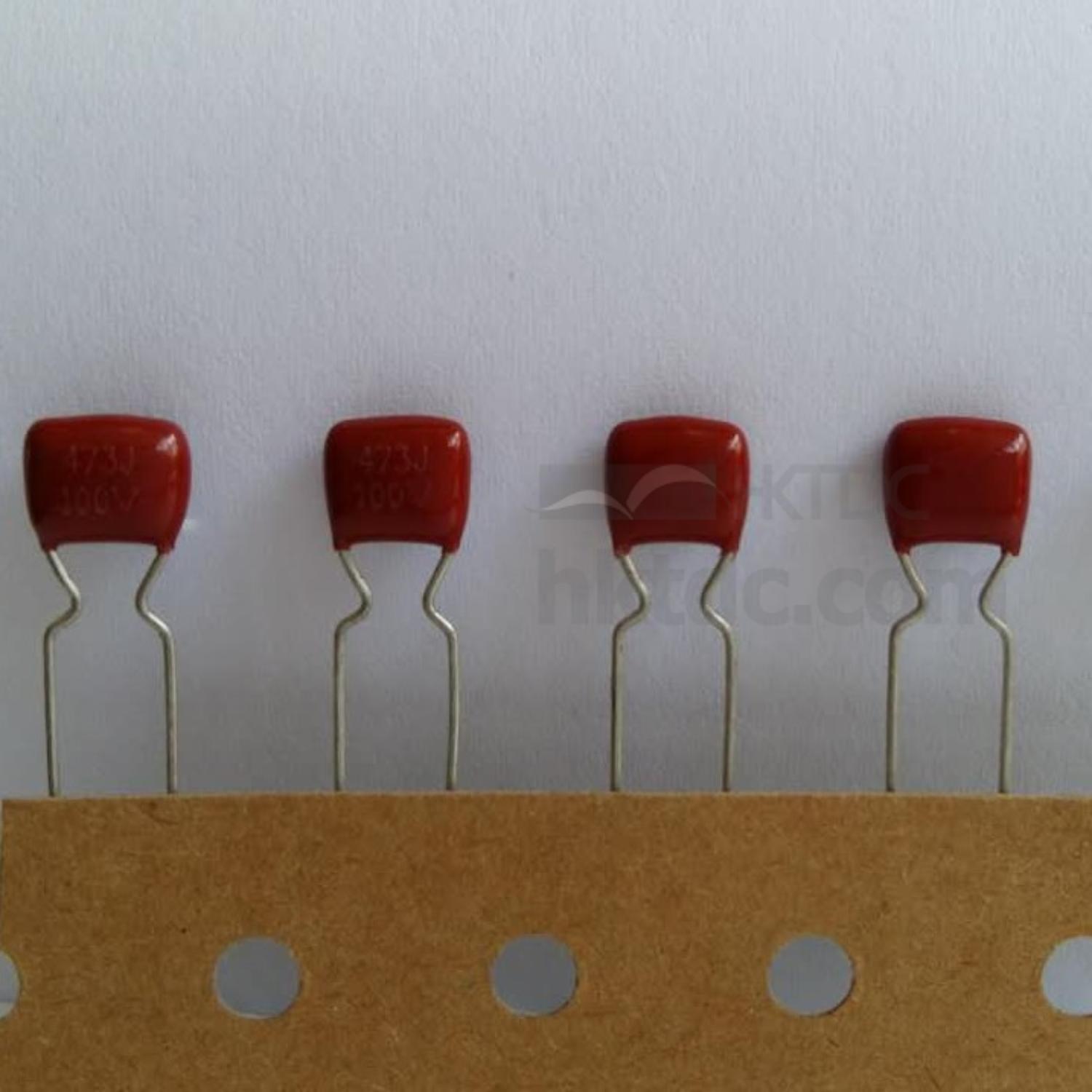

CBB21 Capacitor
Production Lead Time:
7 day(s)
Model No.:
CBB 333J 630V
Port:
Hong Kong
Minimum Order Quantity:
1,000
Description
Contact Supplier
Description
Metallized Polypropylene Film capacitor
- High-pressure tolerance, high insulation resistance and low-profile, is suitable for the direct current, impulse and low-power circuits with high tmerperature.
- SpecificationReference standard : IEC 60384-16, GB 10190
- Climate category : 40/105/21
- Rated temperature : 85Celsius
- Operation temperature range : -40 ~ 105Celsius
- Rated voltage : 100Vdc ~ 2000Vdc
- Capacitance range : 0.00047uF ~ 6.8uF
- Capacitance tolerance : +-5%(J), +-10%(K), +-20%(M) (20Celsius, 1kHz)
- Voltage proof between terminations : U=1.6UR, 5s (20celsius)
- Insultation resistance : 100Vdc <=UR<500Vdc
- CR<=0.33uF, IR>=60000MΩ, CR>0.33uF,t>=20000MΩ.uF
- (20celsius, 100Vdc, 1min)
- UR>=500Vdc
- CR<=0.33uF , IR>=60000MΩ, CR>0.33uF , t>=20000MΩ.uF
- (20celsius, 500Vdc, 1min)
- Dissipation factor:1kHz : <=0.0010
- 10kHz : <=0.0020
- (CR<=1uF) (20celsius)
