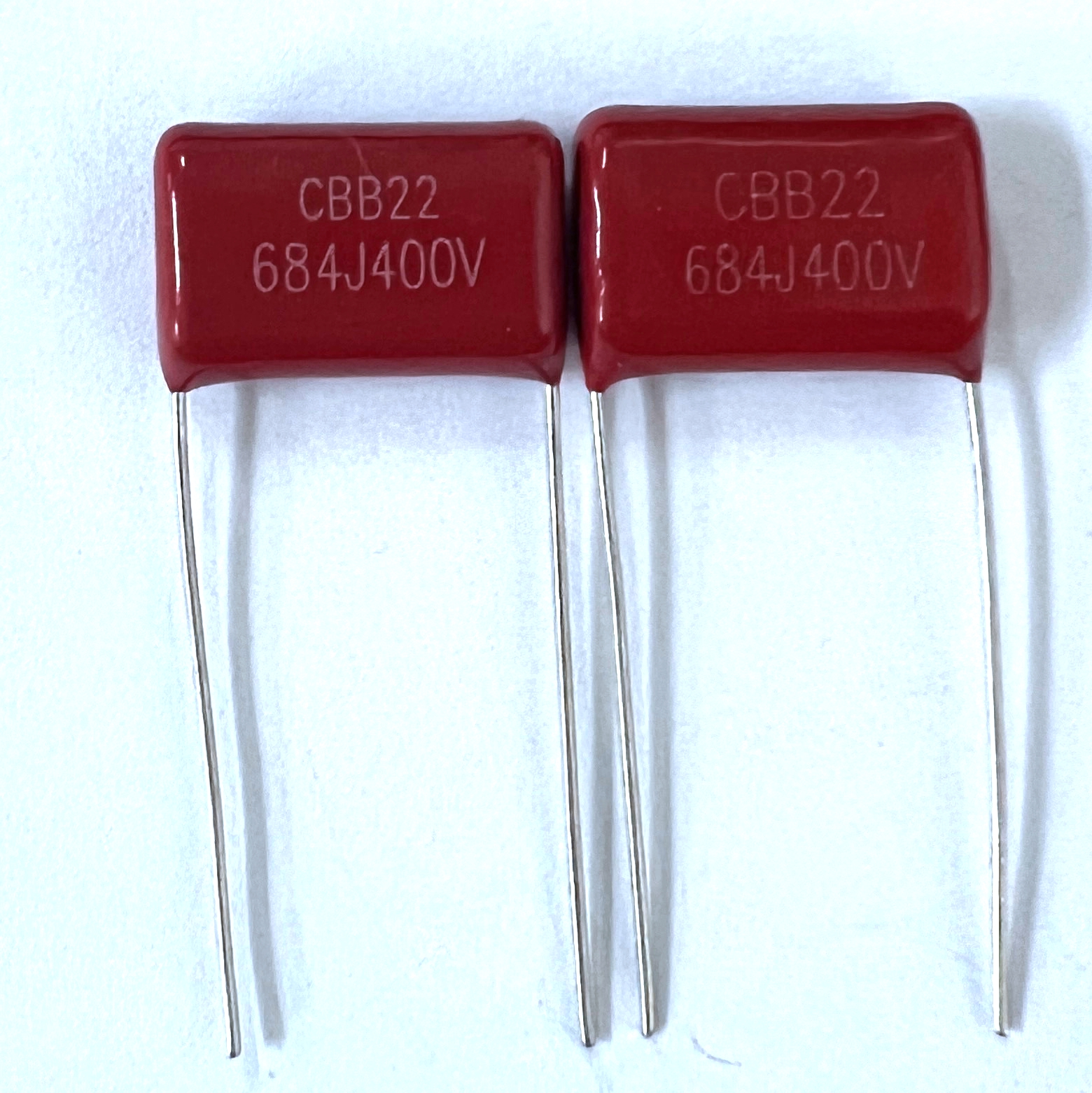

This CBB22 metallized polypropylene film capacitor has high-pressure tolerance, high insulation resistance and a low-profile. It comes in a compact size and two leads for soldering. The CBB22 capacitor is suitable for direct current, impulse and low-power circuits with high temperature.

• Reference standard: IEC 60384-16, GB 10190.
• Climate category: 40/105/21.
• Rated temperature: 85Celsius.
• Operation temperature range: -40 ~ 105Celsius.
• Rated voltage: 100Vdc ~ 2000Vdc.
• Capacitance range: 0.00047uF ~ 6.8uF.
• Capacitance tolerance: +-5%(J), +-10%(K), +-20%(M) (20Celsius, 1kHz).
• Voltage proof between terminations: U=1.6UR, 5s (20celsius).
• Insultation resistance: 100Vdc <=UR<500Vdc .
• CR<=0.33uF, IR>=60000MΩ, CR>0.33uF, t>=20000MΩ.uF.
• (20celsius, 100Vdc, 1min).
• UR>=500Vdc.
• CR<=0.33uF, IR>=60000MΩ, CR>0.33uF, t>=20000MΩ.uF.
• (20celsius, 500Vdc, 1min).
• Dissipation factor: 1kHz: <=0.0010.
• 10kHz: <=0.0020 .
• (CR<=1uF) (20celsius).
• high-pressure tolerance
• high insulation resistance
• Low-profile.
• Compact size.
• With two leads for soldering.
• Suitable for direct current, impulse and low-power circuits with high temperature.
