CCT Tunable Panel Series

US $30.00 - US $80.00

Production Lead Time:

30 day(s)

Shipping Method:

by sea

Model No.:

DWPUGR606048CCT

Input Voltage:

AC200-240V, 50/60HZ

Power:

48W

LED Source:

SMD4014

Color Temp:

2700K-6500K

CRI:

Ra>80

Power Factor:

>0.9

IP Rate:

IP40

Optional:

Dali dimming, or RF Controller

MOQ:

300PCS

Certificate:

CE, RoHS, CB,SAA

Warranty Time:

5 Years

Payment Terms:

T/T

Supply Ability:

7000pcs per month

Description

Contact Supplier

CCT Tunable Panel Series

UGR<19 CCT Tunable panel series light provide a soft, bright luminance that is gentle on the eyes and ideal for both domestic and commercial environments. Thanks to the use of an edge-lighting design, the output is uniform across the panel without any dark or weak spots, and the super-low profile provides a nice clean ceiling line.

◈ FEATURES

2700-6500K CCT Tunable;

UGR<19 optional;

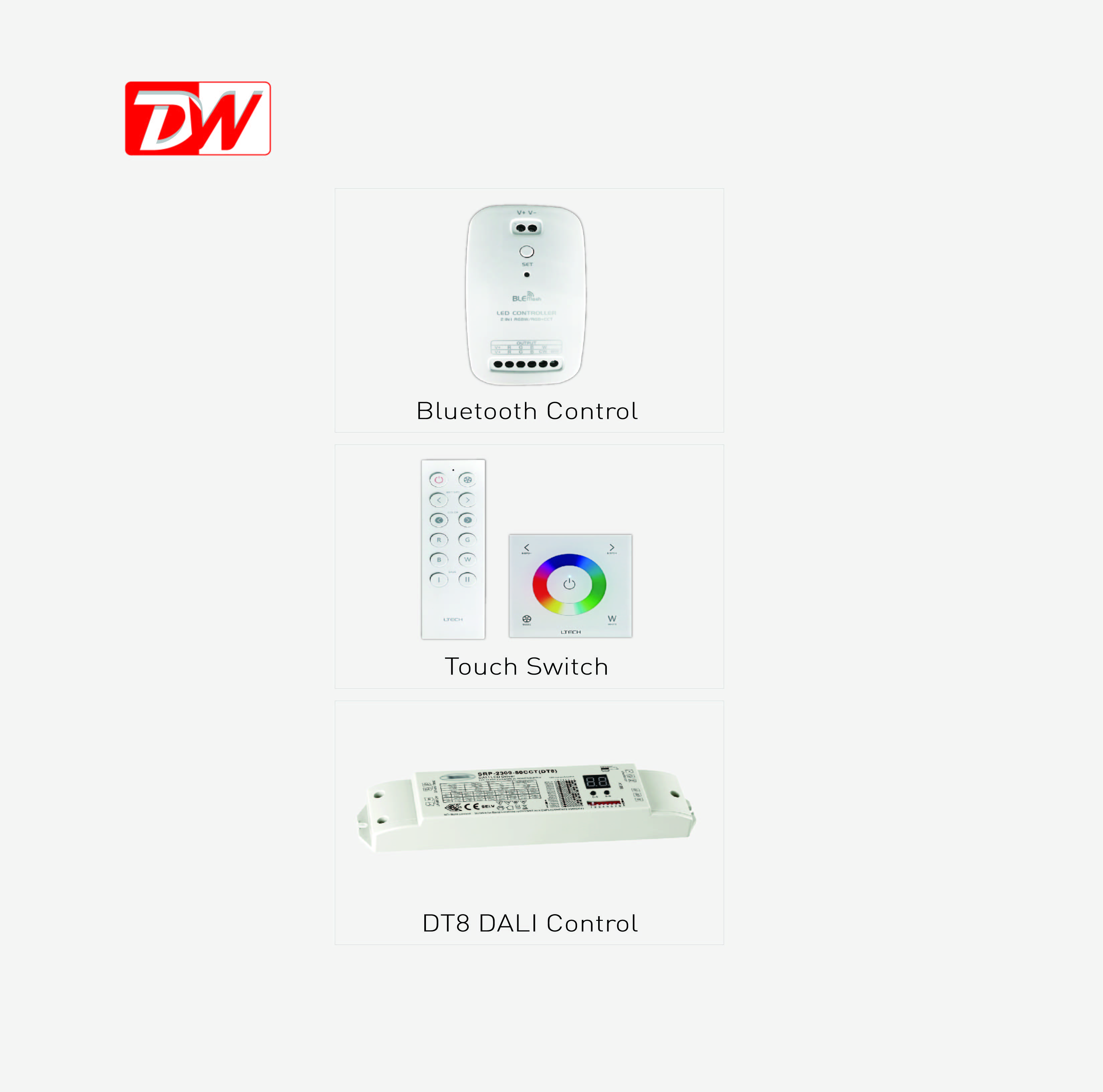

Controlled by DALI or RF controller;

Pure 4mm PMMA LGP, anti yellowing

Standard version/UGR<19 version is optional;

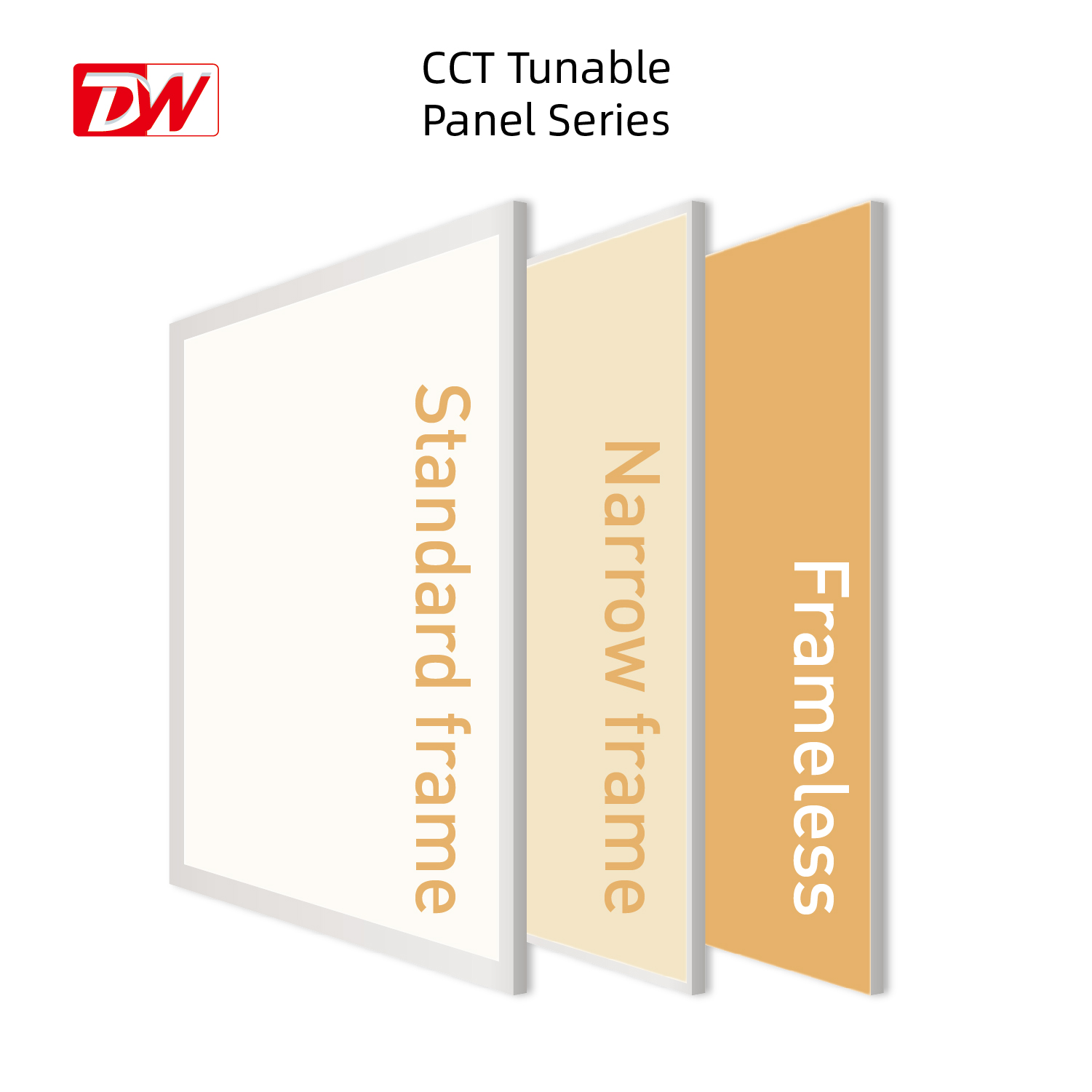

There are three frame: frameless, narrow frame and standard version;

◈ ADVANTAGE

TUV Listed CE, CB, and RoHS, SAA,ISO9001;

Imported 4mm PMMA LGP;

Pure aluminum frame with white spray treatment, good heat dissipation & elegant appearance;

Even light distribution, soft & smooth light, no glare;

There are three frame: frameless, narrow frame and standard version.

◈ SPECIFICATION

Tunable CCT Panel
Photometric Parameters
NO.	Item	parameter
1	LED	SMD4014 Epistar
2	Luminous Efﬁciency	>80 Lm/W
3	CCT	2700K-6500K
4	CRI	≥80
5	Beam Angle	120°
6	LED Lifespan	≥50000 Hours
Electrical Parameters
7	Dirver Input Voltage	AC220-240V /50～60Hz
8	OutputVoltage	DC33-39V
9	Power Supply Efﬁciency	≥88%
10	Power Factor	≥0.95
11	Protection Class	Class II
General Parameters
12	Rating IP	IP40
13	Material	Aluminum + PMMA
14	Frame Finishing	White

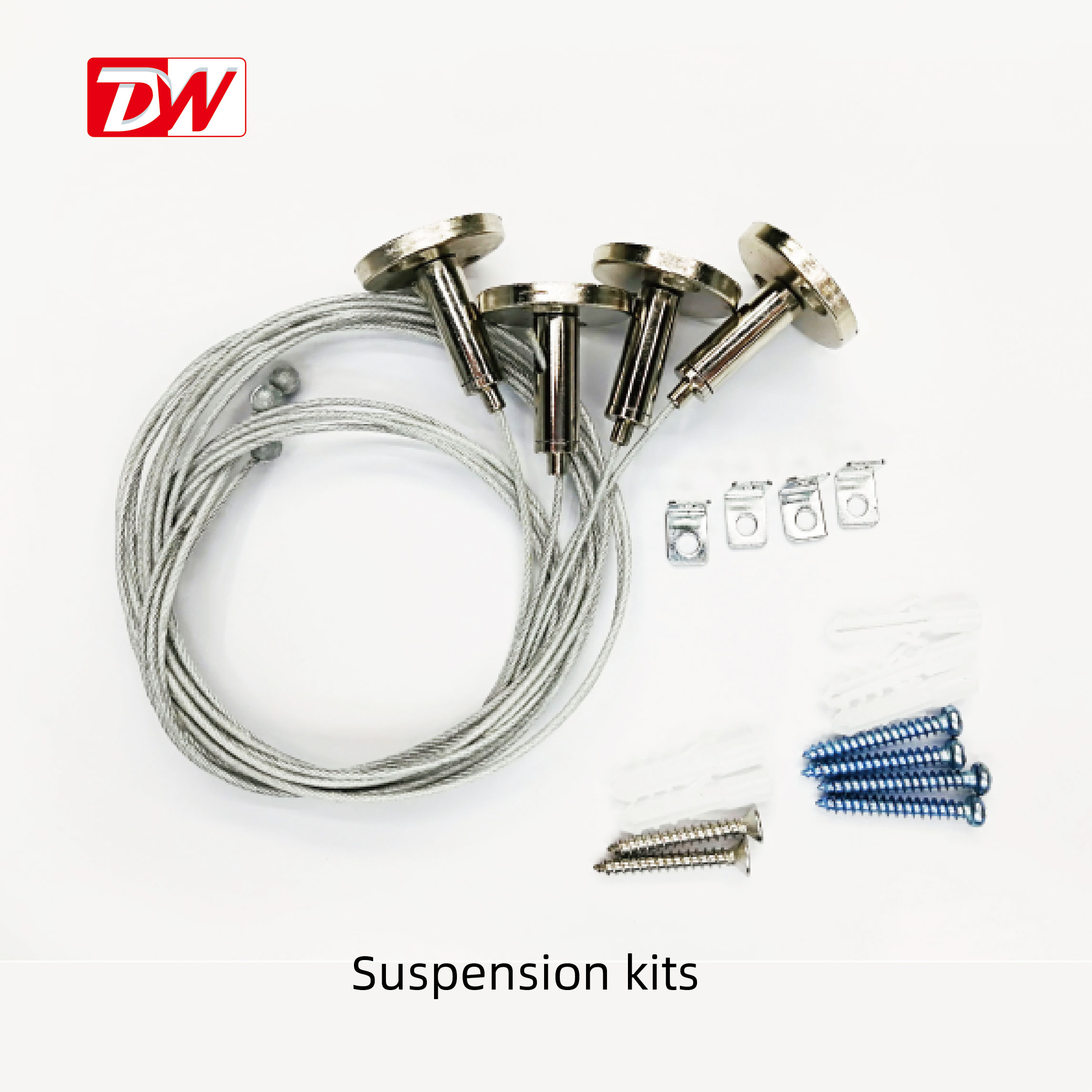

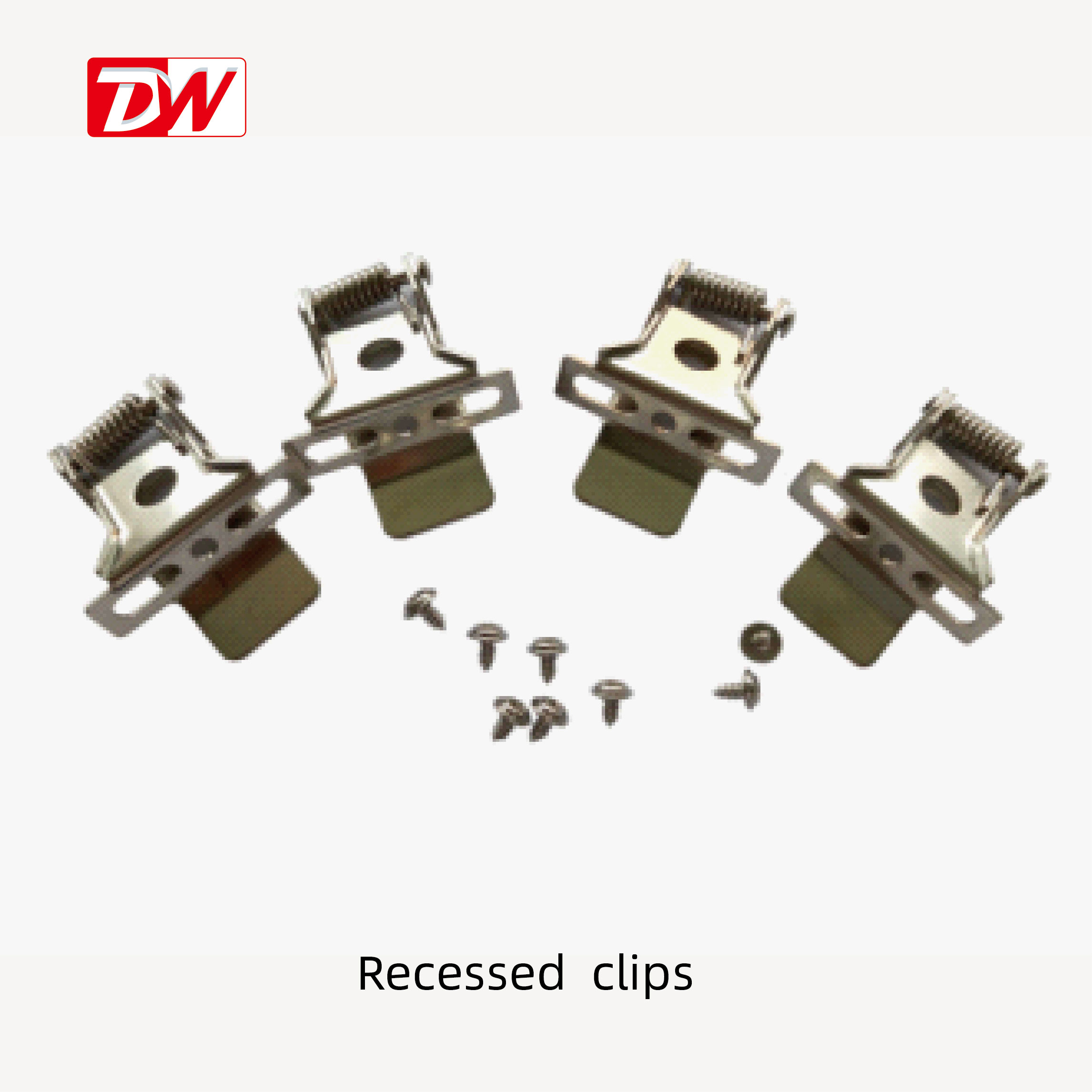

15	Installation	Recessed/Pendant
16	Working Temperature	-20～+45℃
17	Storing Temperature	-40～+60℃
18	Working Humidity	15%~90%RH

◈ SIZE

CCT Tunable Frameless Panel Series	Model No.	Wattage	Luminous flux	CRI	LED	Dimension
	DWM303018CCT	18W	1260lm	80Ra	SMD4014	295x295x16.7mm
	DWM606036CCT	36W	2800lm	80Ra	SMD4014	595x595x16.7mm
	DWM626236CCT	36W	2800lm	80Ra	SMD4014	620x620x16.7mm
	DWM3012036CCT	36W	2800lm	80Ra	SMD4014	295x1195x16.7mm
CCT Tunable Panel Series	DWN303018CCT	18W	1440lm	80Ra	SMD4014	295x295x14mm
	DWN606036CCT	36W	3000lm	80Ra	SMD4014	595x595x14mm
	DWN626236CCT	36W	3000lm	80Ra	SMD4014	620x620x14mm
	DWN3012036CCT	36W	3000lm	80Ra	SMD4014	295x1195x14mm
CCT Tunable Narrow Panel Series	DWP181808CCT	8W	640lm	80Ra	SMD5050	18018010mm
	DWP303016CCT	16W	1280lm	80Ra	SMD5050	29529510mm
	DWP606036CCT	36W	3600lm	80Ra	SMD4014	595x595x10mm
	DWP626236CCT	36W	3600lm	80Ra	SMD4014	620x620x10mm
	DWP3012036CCT	36W	3600lm	80Ra	SMD4014	295x1195x10
