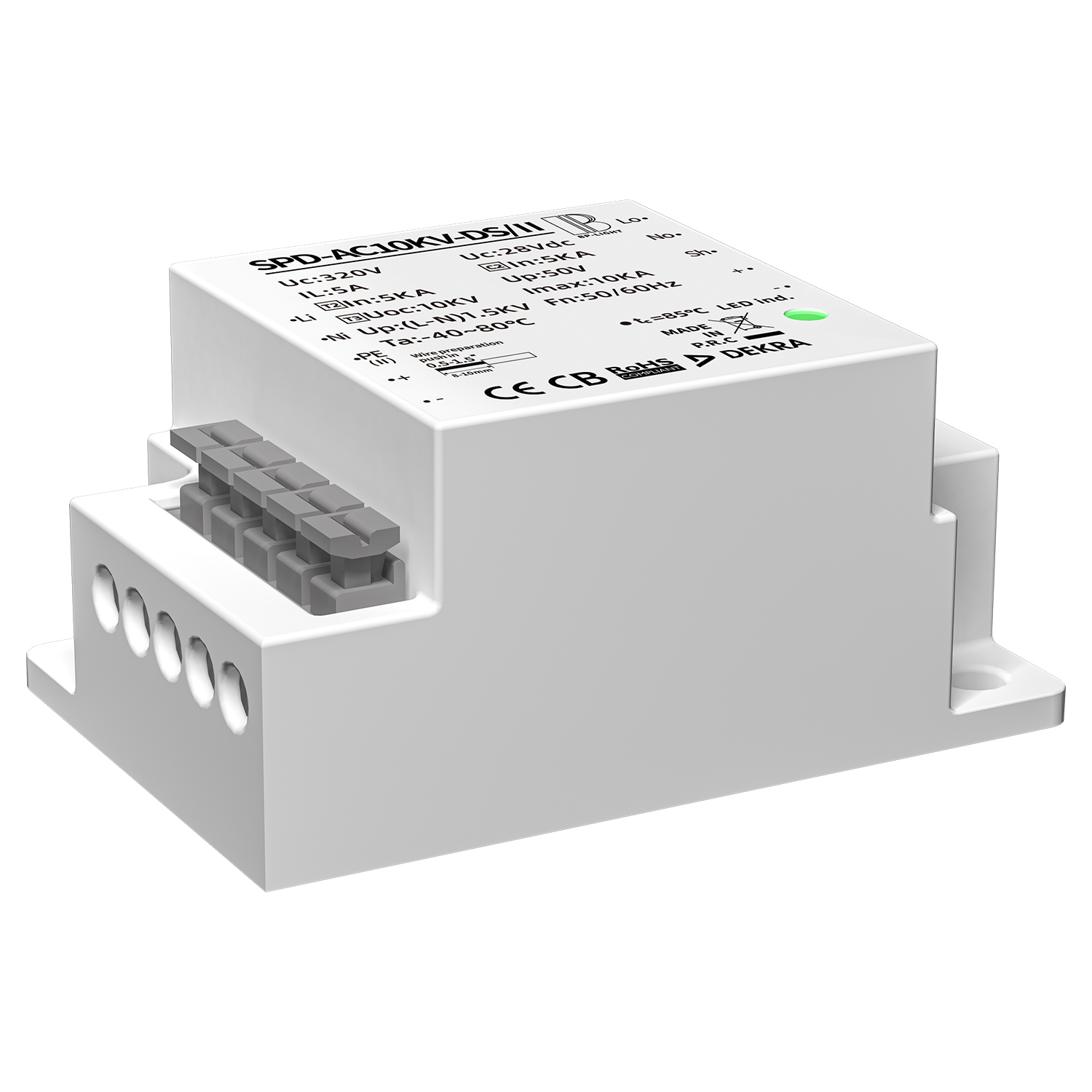

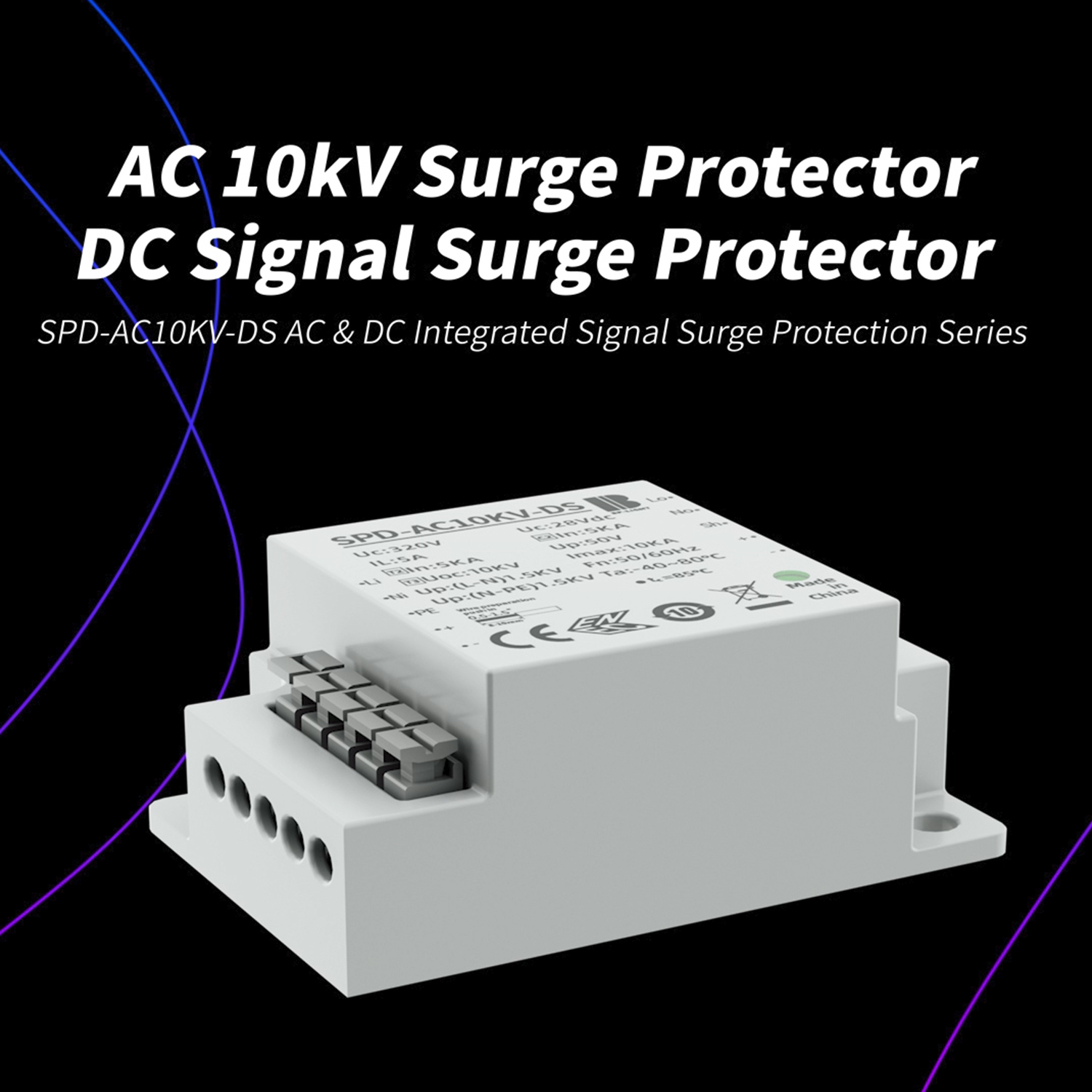

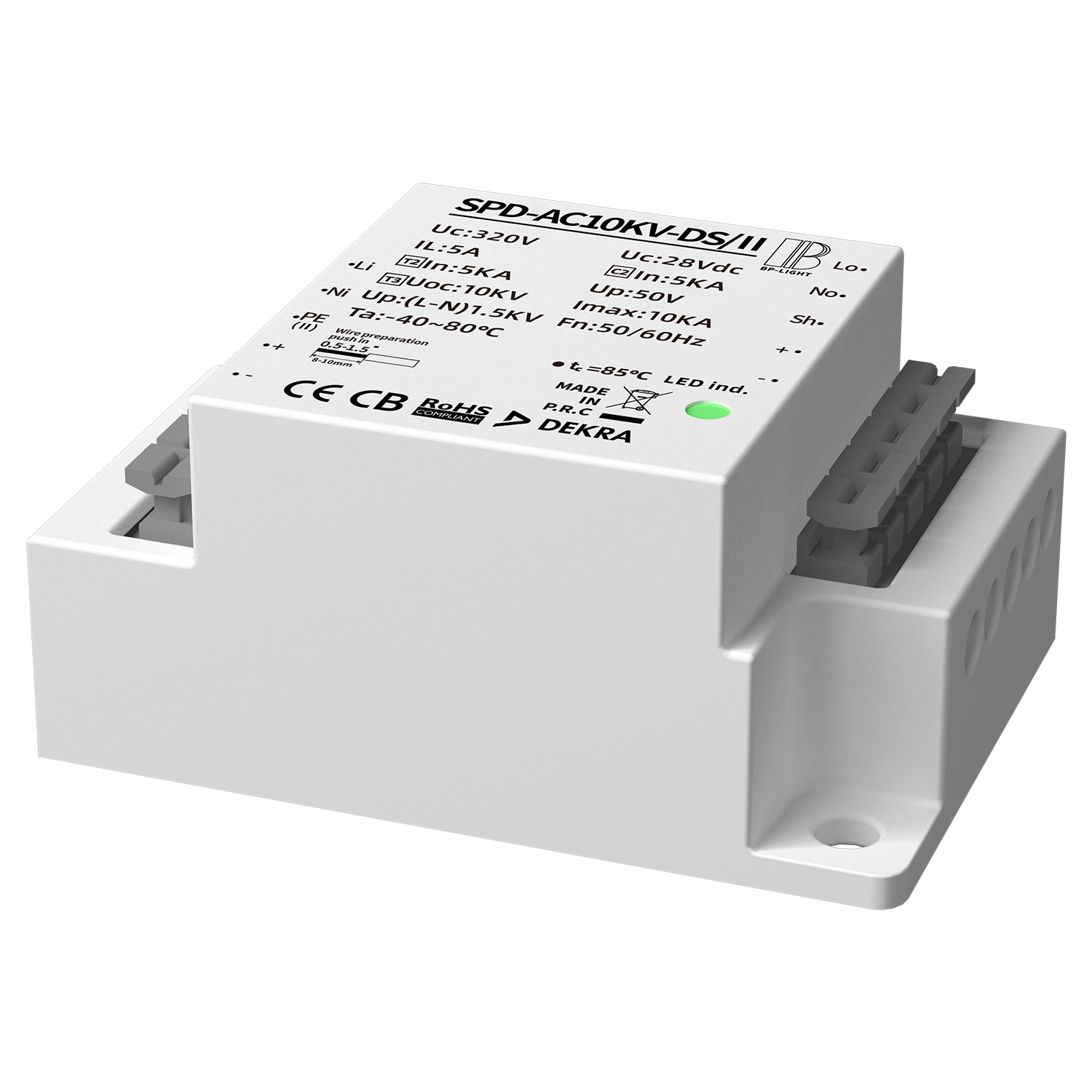

CE CB RoHS Certified Series Connected SPD for LED Lighting with DALI DMX RS485 Data Line Surge Protection
Brand:
BP
Model:
SPD-AC10KV-DS/II
Applicable luminaires:
Class Il luminaire
Certifications:
CB, CE, RoHS
Connection:
Series
IP Rating:
IP20
Max input voltage (Un):
220-240V
SPD Category:
SPD
Max Discharge Current:
10KA
Nominal Discharge Current:
5KA
DALI:
DaLi2.0,D4i,1-10V.DMX,RS485
Description
Contact Supplier
Description
This series-connected SPD for LED lighting is a Type 2+3 combined AC and dataline surge protector for Class II outdoor luminaires, meeting product standards IEC 61643-11, EN 61643-11, IEC 61643-21, EN 61643-21, adopting screwless quick wiring and supporting DALI2.0, D4i, 1-10V, DMX, RS485 control signals with CE, CB and RoHS certifications.
- DaLi2.0,D4i,1-10V,DMX,RS485 data lines compliance
- Combined AC/Dataline surge protection
- Max Discharge Current:10KA
KEY FEATURES
✓Network:230V single-phase
✓AC system:TN
✓Max. Data operating voltage:Uc 28Vdc
✓Max. AC operating voltage:Uc 320 Vac
✓Max. load current @25°C:L 5A
✓Temporary Over Voltage (TOV) Characteristics - 5 sec Without disconnection:UT 337Vac
✓Temporary Over Voltage (TOV) Characteristics - 120 mnWithout disconnection or with safety disconnection:UT 442Vac
✓Nominal discharge curent,15x 8/20 us impulses:InL-N/N-PE 5kA
✓Max.discharge current max. withstand @8/20 us by pole:maxL-N/N-PE 10kA
✓Nominal discharge curent,C2 Category:In 5kA
✓Withstand on Combination waveform IEC 61643-11Class IIl test: 1.2/50s-8/20s:Uoc 10kV
✓Protection mode(s):Common/Differential Mode
✓Protection level @ In (8/20 us)]:UpL 50V
✓Protection level L/N@ In (8/20us):UpL/N 1.5kV
✓Admissible short-circuit current:Isccr 300A
APPLICATIONS
✓Outdoor Road Lighting
✓Tunnel & Underground Traffic Lighting
✓Landscape Lighting & Outdoor Signage
✓Outdoor Lighting for Industrial Plants
✓Public Lighting for Transportation Hubs
TECHNICAL SPECIFICATIONS
