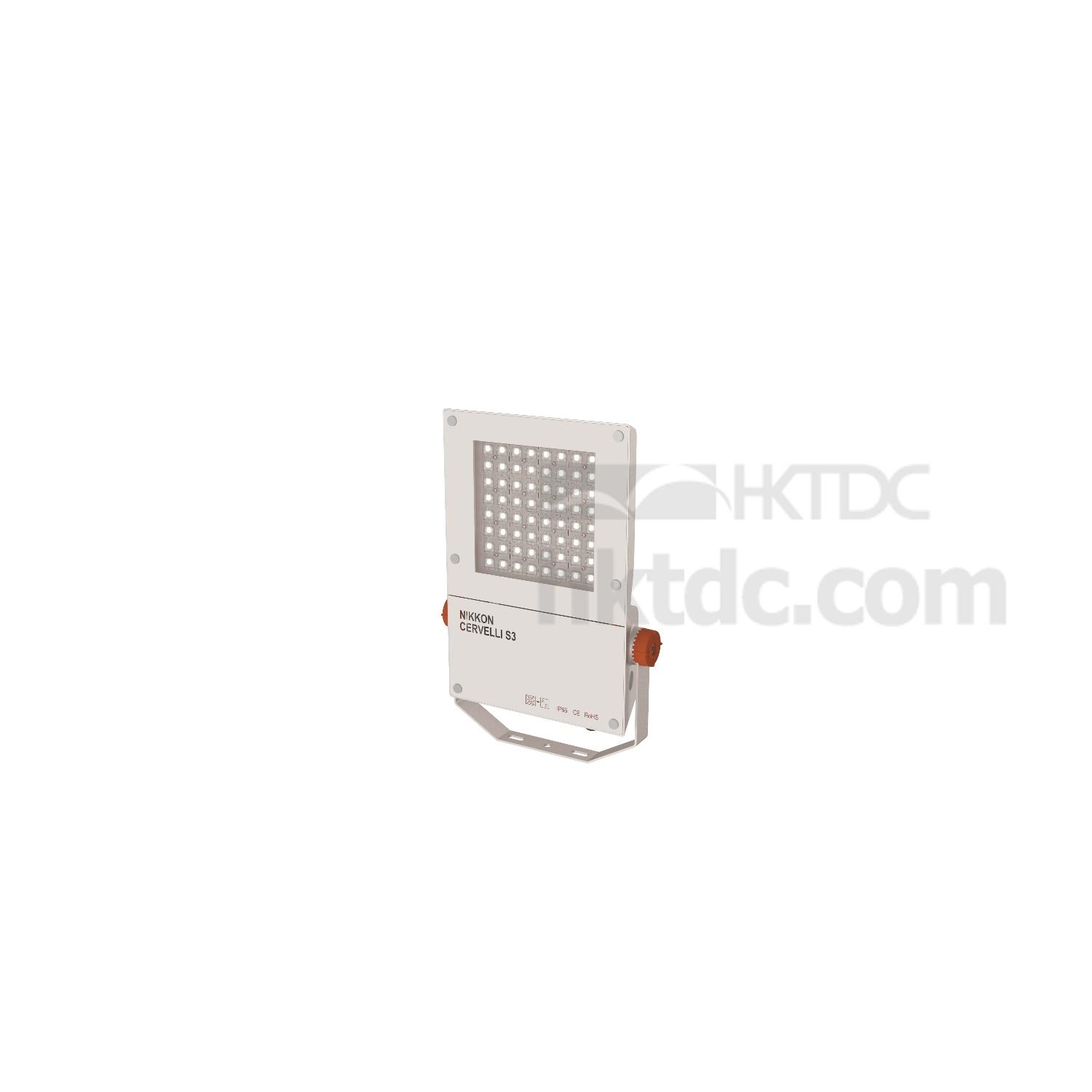

CERVELLI
Model No.:
CERVELLI S3 & S5
Brand:
NIKKON
Type of Payment:
T/T in advanced, irrevocable L/C at sight
Minimum Order Quantity:
No MOQ
Protection Level:
IP66
Customized:
Yes
Voltage(V):
220-240
Light Source:
LED Bulb
Body Material:
Marine Grade High Corrosive Resistant Aluminium
Style:
Modern
Including Bulbs:
Yes
Applicable:
Industrial
Description
Contact Supplier
Description
- Luminaire Technical Specifications
- System Power:
- S3 - 100W
- S3 - 150W S3 - 200W
- S5 - 250W S5 - 300W
- S5 - 350W
- Fitting Material: Marine Grade High Corrosive Resistant Die-Cast Aluminium
- Fitting Color: White Aluminium, Akzo Nobel RAL 9006
- Optical Cover: High Transparency Tempered Glass
- Ingress Protection: IP66
- Impact Protection: IK08
- Voltage: 220 ~ 240 Vac 50 / 60Hz
- Electrical Safety Class: Class I
- Operating Temperature: -30 ~ +450C
- Surge Protections: 10KV, 20KA
- Installation: Bracket Mount
- Net Weight:
- S3 - 10 kg
- S5 - 16 kg
- System Power:
- LED Module Specifications
- LEDs: 5050
- Color Temperature:
- 3000K Warm White
- 4000K Neutral White
- 5000K Cool White
- 6500K Daylight
- L70: 50,000 Hrs @ 250C
- PCB Material: Metal Core (Aluminium)
- Lens Type: Narrow, Medium, Wide, Asymmetrica
- Compliance Standard
- LED: LM80, UL, RoHS
- Driver: CE, EN62493, EN61347, EN50581, EN55015, EN61000, EN61547, EN62384
- SPD IEC 61643-11, UL 1449
- Luminaire: EN60598-1, EN60598-2-5, EN62493, EN55015, EN61547, EN61000, EN62471
- Optional Features
- LED Driver:
- 1-10V Dimming, Full Programmable, Constant Current Output
- Optics:
- Narrow, Medium, Wide, Asymmetrical
- LED Driver:
- Application
- Parking Areas, Facades Lightings, Stadiums / Sport Lightings, Jetties, Ports & Highmasts
