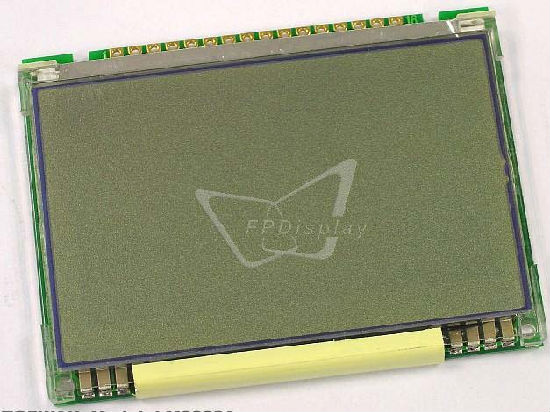

COB LCD Module
Share this page
Model No.:
MTB240X128
Size:
144.0 (W) x 104.0 (H) x 9.8/13.8 (T) mm
Description
Contact Supplier
Description
  • Number of dots: 240 x 128 dots.
  • Module dimension: 144.0 (W) x 104.0 (H) x 9.8/13.8 (T) mm.
  • Viewing area: 114.0 (W) x 64.0 (H) mm.
  • Dot size: 0.40 (W) x 0.40 (H) mm.
  • Dot pitch: 0.45 (W) x 0.45 (H) mm.
  • LCD type: STN.
  • Driver method: 1/128 duty, 1/12 bias.
  • Viewing direction: 6 o'clock.
  • Controller IC: T6963C.
