COB LED Module
Model No.:
AS30-10
Brand:
JMK
Colour:
Warm White, Cool White
Size:
30mm x 30mm
Port:
Keelung, Taiwan
Type of Payment:
T/T in advance
Minimum Order Quantity:
1,000 piece(s)
Description
Contact Supplier
Description

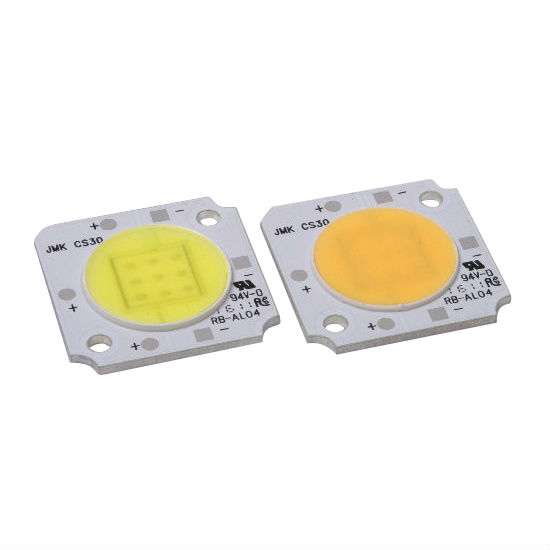

- High brightness multi-chip chip-on-board LED module.
- Matching lens.
- Material: aluminum MCPCB.
- Net weight: 12.1g.
- Power consumption: 11W.
- DC forward current, IF: 350mA.
- DC forward voltage, VF: 31.5V.
- Operating temperature: -40~+70°C.
- Storage temperature: -40~+70°C.
- Viewing angle: 130 degree.
- Color temperature (cool white): 5700-6300K.
- Color temperature (warm white): 2800-3200K.
- Luminous flux (cool white): 800-900Lm.
- Luminous flux (warm white): 650-750Lm.
- Color rending index: >70.
- Environmental temperature: 25°C.
- Long lifetime.
- Simple implementation.
- Easy and safe to maintain.
- Comfortable light source.
- Applications: smaller beam angle rotational down light, par light, etc.
