COB, SPOTLIGHT, TRACKLIGHT, DOWNLIGHT, GU10, MR16, GRILLE LIGHT, DOB module, LED PCB, PCBA, IC, linear solution | Parts, Components & Raw Materials

Smar LED Lighting Guangzhou Co., Ltd

COB, SPOTLIGHT, TRACKLIGHT, DOWNLIGHT, GU10, MR16, GRILLE LIGHT, DOB module, LED PCB, PCBA, IC, linear solution

US $0.30 - US $3.00

Production Lead Time:

15 day(s)

Shipping Method:

Plane, Ship, Train, DHL

Application:

Indoor & Outdoor Lighting

Customised :

Yes

Feature :

CE Standard, ERP Technical

Material :

Aluminum PCB

Is Dimmable:

Yes

Light Source:

LED

Lighting Style:

Modern

Description

Contact Supplier

1) High PF value leads to low power consumption.

2) Integrated circuit, compact size, flexible and innovative design.

3) Over temperature protection, over voltage protection, surge protection.

4) Low THD. Easier to pass EMC test and other certificate tests.

5) High light efficiency and low thermal resistance.

6) Multiple color temperatures and CRI for your choice.

7) Rich variety of designs and shapes.

8) Can be used for indoors and outdoors

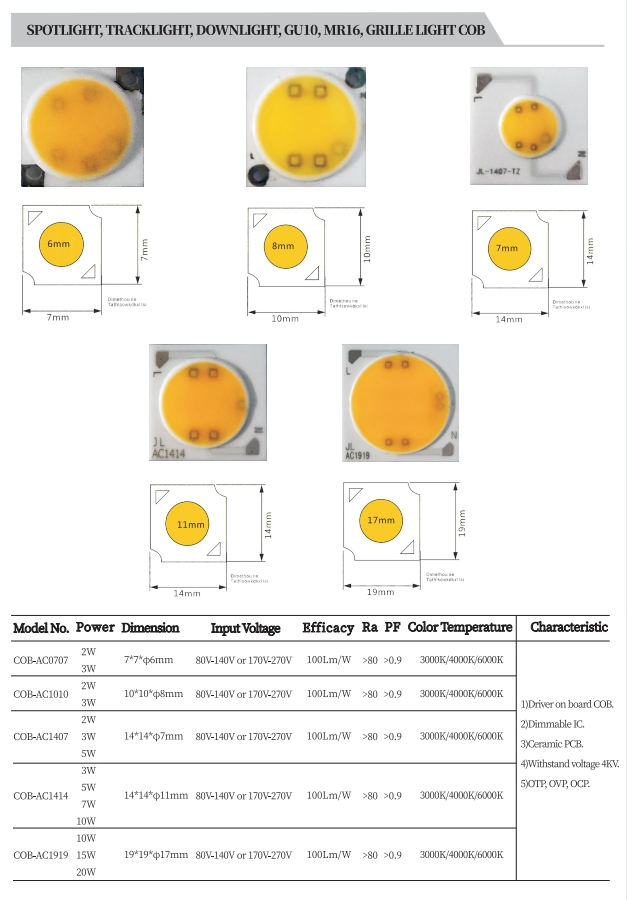

SPOTLIGHT, TRACKLIGHT, DOWNLIGHT, GU10, MR16, GRILLE LIGHT COB
Model No.	Power	Dimension	Input Voltage	Efficacy	Ra	PF	Color Temperature	Characteristic
COB-AC0707	2W	77φ6mm	80V-140V or 170V-270V	100Lm/W	>80	>0.9	3000K/4000K/6000K	1)Driver on board COB. 2)Dimmable IC. 3)Ceramic PCB. 4)Withstand voltage 4KV. 5)OTP, OVP, OCP.
	3W
COB-AC1010	2W	1010φ8mm	80V-140V or 170V-270V	100Lm/W	>80	>0.9	3000K/4000K/6000K
	3W
COB-AC1407	2W	1414φ7mm	80V-140V or 170V-270V	100Lm/W	>80	>0.9	3000K/4000K/6000K
	3W
	5W
COB-AC1414	3W	1414φ11mm	80V-140V or 170V-270V	100Lm/W	>80	>0.9	3000K/4000K/6000K
	5W
	7W
	10W
COB-AC1919	10W	1919φ17mm	80V-140V or 170V-270V	100Lm/W	>80	>0.9	3000K/4000K/6000K
	15W
	20W
