COMICA VM40 2.4G Super Cardioid Dual-Channel Wireless Shotgun Microphone,Wired and Wireless dual modes,for Camera/Smartphone/PC | Home Audio, Video & Entertainment Systems

Shenzhen Commlite Technology Co., Ltd.

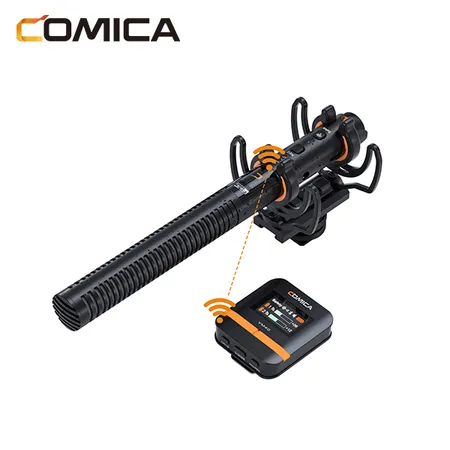

COMICA VM40 2.4G Super Cardioid Dual-Channel Wireless Shotgun Microphone,Wired and Wireless dual modes,for Camera/Smartphone/PC

US $120.00 - US $125.00

Production Lead Time:

30-40 day(s)

Brand:

COMICA

Model No.:

VM40

Size:

Transmitter: 22mm x L224mm ; Receiver: 54 x 48 x 22mm

Weight:

Net Weight Transmitter: 94g ; Receiver: 29.5g

Description

Contact Supplier

Notice

Please use it face-to-face, and don’t turn your back to the receiver. Otherwise, it is easy to generate breakpoints

Don't block the antenna positions of the TX and RX during use to avoid affecting the wireless distance

Wireless Type	2.4GHz
Transmitting Power	+10dBm
Receiving Sensitivity	-96dBm
Antenna	Ceramic Antenna
Sound Delay	<20ms
Polar Pattern	Super Cardioid
Frequency Response	20Hz ~ 20kHz
Low-cut	-3dB@ 100Hz
High-frequencyBoost	+3dB @10kHz
Output Impedance	600Ω
Sensitivity	-38dB ~ -18dB re 1V/Pa(12mv ~ 125mv @ 94dB SPL) ±2dB @ 1kHz
S/N	75dB SPL(A-weighted,as per IEC651)
Equivalent Noise	19dB SPL(A-weighted,as per IEC651)
Maximum SPL	130dB SPL(@ 1% THD)
Dynamic Range	111dB SPL(A-weighted,as per IEC651)
Analog Output	3.5mm TRRS/TRS
Digital Output	USB-C 48kHz/24bit
Battery	Transmitter:Li-polymer 3.7V 350mAh Receiver:Li-polymer 3.7V 330mAh
Battery Life	Transmitter: Wired Mode 32 Hours; Wireless Mode 10 Hours; On-board Recording Mode 5 Hours Receiver: 8 Hours
Dimensions	Transmitter: Φ22mm x L224mm Receiver: 54 x 48 x 22mm
Net Weight	Transmitter: 94g Receiver: 29.5g
Operating Temperature	0℃ ~ 50℃
Storage Temperature	-20℃ ~ 60℃

Packing List

Main Parts:

1. Shotgun Microphone(Transmitter) *1

2. Receiver*1

Accessories:

3. 2 in 1 Charging&Output Cable*1

4. 3.5mm TRS-TRS Audio Output Cable*1

5. 3.5mm TRRS-TRRS Audio Output Cable*1

6. Shock Mount*1

7. 3/8 Male to 5/8 Female Stand Adapter*1

8. 5/8 Male to 3/8 Female Screw*1

9. 3/8 Male to 1/4 Female Screw*1

10. Windscreen*1

11. Wind-muff*1

12. Pin*1

13. Carry Case*1

14. User Manual*1

15. Warranty Card*1

Specifications

Hign-concerned Chemical
None
Built-in Battery
Yes
Diaphragm
S-Mall,LARGE
Polar Patterns
Hypercardioid
Package
Yes
Communication
WireLess
Set Type
Multi-Microphone Kits
Transducer
Condenser Microphone
Use
Pro Studio
Style
Hanging Microphones
Brand Name
COMICA
COMICA Model
VM40
Origin
Mainland China
Certification
CE,FCC,RoHS
Wireless Type
2.4GHz
Antenna
Ceramic Antenna
Sound Delay
<20ms
Transmitting Power
+10dBm
Receiving Sensitivity
-96dBm
Frequency Response
20Hz ~ 20kHz
Low-cut
-3dB @ 100Hz
High-frequency Boost
+3dB @ 10kHz
S/N
75dB SPL(A-weighted,as per IEC651)
Transmitter Battery
Li-polymer 3.7V 350mAh
Receiver Battery
Li-polymer 3.7V 330mAh
Analog Output
3.5mm TRRS/TRS
Digital Output
USB-C 48kHz/24bit
