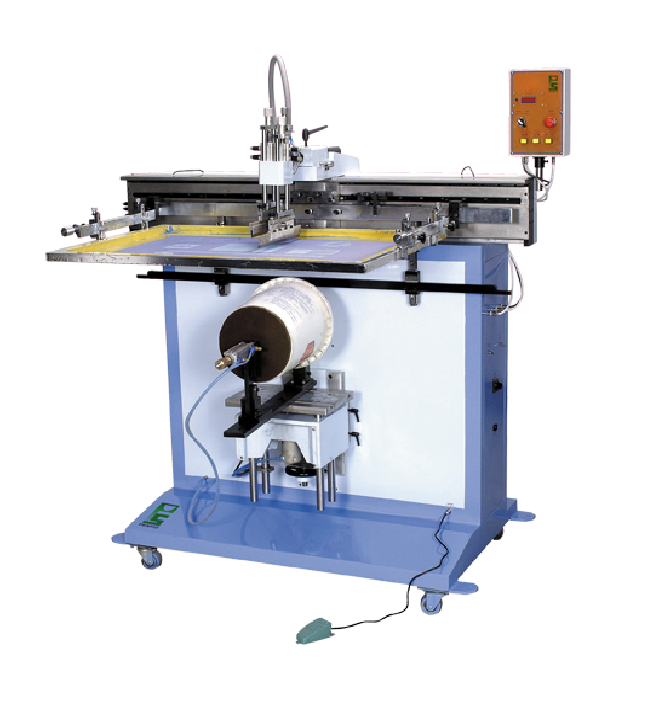

CYLINDRICAL SCREEN PRINTER FOR 20L PAIL, LARGE CONTAINER
US $5500.00 - US $6200.00
Production Lead Time:
21 day(s)
Shipping Method:
BY SEA
Brand:
PRINTSO
Model No.:
PS-1200S
Customised:
Yes
Size:
PRINTING AREA : Ø400mm x 550mm(H)
Weight:
400KG
Description
Contact Supplier
Description
Features:
Strong & stable screen arm design
Advanced computerized control system
Multi program keys printing programs
User friendly control panel with built-in LED digital counter
Stable and heavy duty ascent / descent working stable
Applied Linear Tracking Rail guarding the screen arm left / right movement
Link with cylinder controlled jig
Enable using large screen frame
Balanced gear bar for easy setup and positioning
Guarded foot paddle
Applied German FESTO cylinders
Anodized aluminum parts
Strong diecast body structure
SPECIFCATIONS | ||
Model no | : | PS-1200S |
No. of color | : | 1 color |
Max. printing stroke | : | 1230mm |
Max. printing area | : | Ø400mm x 550mm(H) |
Max. speed | : | 6 cycles per min. |
Power voltage | : | 100-240V, 50/60Hz |
Power consumption | : | 55W |
Air pressure | : | 0.5-0.65 Mpa/cm² |
Air consumption | : | 9 L/min. |
Machine dimension | : | 1800mm x 1180mm x 1750mm |
Net weight | : | 400KG |
