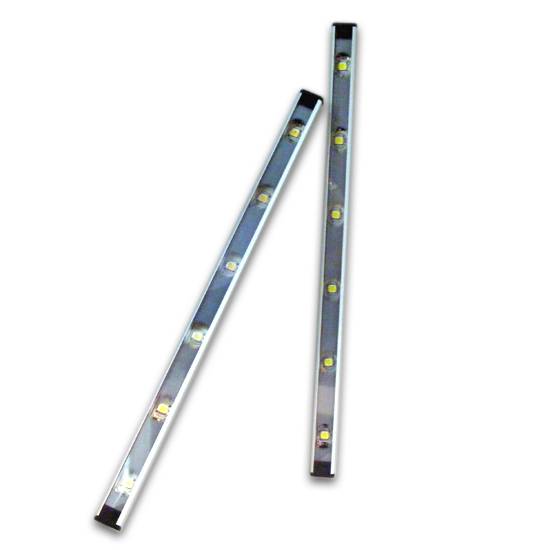

The cabinet linear lights as shown are lightened by LEDs. Installation procedure is simple and easy. The lamps include a modular design for chain up.

• Super high brightness output(80Lm/W)
• Lower energy consumption
• LED: high power LED 1W(Nichia)*6pcs
• Size: L306mm X W16.6mm X H16.8mm
• Color option: White(NW, 5200K+/-400K); Warm White(WW, 3000K+/-300K)
• Input Voltage: 24Volts(DC)
• Total power dissipation: about 7W
• Light output(Lm): White(238lm), Warm White(167lm)
• Lux@50cm: NW(451lux), WW(316lux)
• CRI: NW(70), WW(75)
• Rated life: >20,000 hours
• Operating temperature: -10 degree celsius~40 degree celsius
• Beam angle: 110 degree X 80 degree
• Housing material: Aluminum
