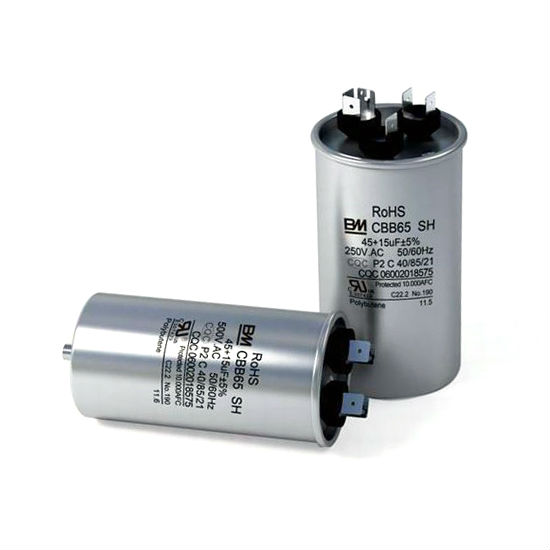

Capacitor Series
Model No.:
CBB65
Brand:
BM
Description
Contact Supplier
Description
- Made of electrical class metalized polypropylene film.
- Thickened metalized electrode.
- Shiny metal housing coming in silvery.
- Vacuum oiling.
- 250# quick-connect terminal leading.
- P2 class pressure-type and explosion-proof structure.
- Fast heat dissipation.
- High resistance to decay.
- Can meet high safety requirements.
- Mainly applied to starting and running of AC motors, energy storage, sieve wave, etc.
- Reference standard: GB/T3667, UL810, EN 60252.
- Climatic category: 25/70/21, 25/85/21, 40/70/21, 40/85/21.
- Rated voltage: 150V-600V AC (50/60Hz).
- Capacitance range: 3μF-100μF.
- Capacitance tolerance: ±5% (J), ±10% (K), ±105% (U).
- Testing voltage between terminals: 2 x UN (V AC)/60s.
- Between terminals and case: 2 x UN + 1000 (V AC)/60s (≥2000V AC).
- Insulation resistance (20℃) between terminals: ≥2000MΩ.μF (500V DC, 60s).
- Tangent of loss angle (20℃): ≤0.002 (100Hz).
- Class of safety protection: P2.
- Fault current: 10,000AFC (UL810).
