Car Amplifier
Model No.:
YA-1500D
Description
Contact Supplier
Description

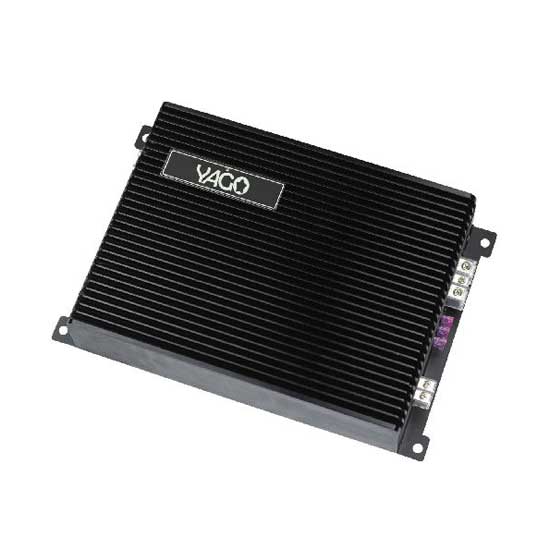

This is a car amplifier with a class-D type. It features a durable housing with good heat dissipation. This amplifier is professionally engineered to promise stable and reliable performance.
- RMS power output @1Ohm: 1,500W.
- RMS power output @2Ohm: 1,000W.
- RMS power output @4Ohm: 600W.
- Input sensitivity: 0.2V~8.0V.
- Frequency response: 20~150Hz(0,-3dB).
- Speaker impedance: 4, 2, or 1Ohm.
- Signal to noise: 80dB ＜RMS.
- THD (RMS): ＜0.5%.
- Damping factor: ＜100.
- Subsonic filter: 10Hz~40Hz variable.
- Low pass filter: 50Hz~250Hz variable.
- Bass boost (variable at 45Hz): 0~12dB.
- Current protection: over-current, over-voltage and thermal.
- Protection: DC-draff, DC-reverses, speaker short.
- System indicator: top mounted blue LED power indicator.
- Power requirements: 14.4V DC (11V to 16V).
- Heat sink weight: 7.6g/mm.
