Car Antenna
Model No.:
WM90
Port:
Taiwan
Minimum Order Quantity:
100 piece(s)
Description
Contact Supplier
Description

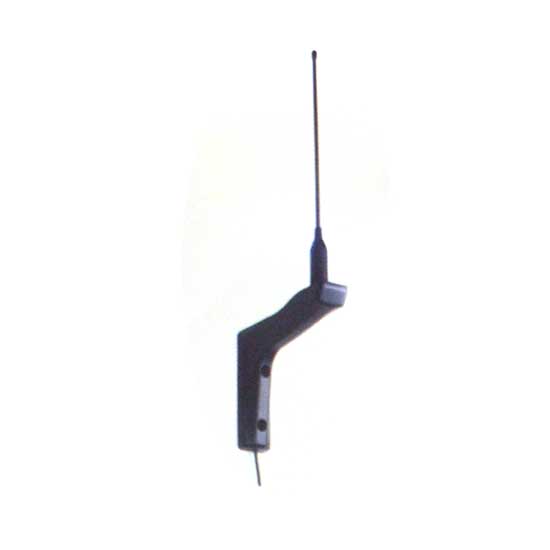

Featured is a high gain penta-band wall-mounted car antenna made with high-quality raw materials. It is designed with an integrated L bracket for easy installation. Other types of car antennas are also available for you to choose from.
- Working frequency: 850/900/1,800/1,900/2,100MHz.
- Gain: 2.8-4.0dBi.
- Radiation pattern: omni-directional.
- Polarization: linear.
- Impedance: 50Ω.
- Return loss: <=-20dB average.
- Efficiency: 59-69%.
- Dimensions: 368mm high bracket.
- Operating temperature: -40°C-+85°C.
- Cable: CFD-200.
- Connector: SMA(M).
- Mounting: wall mount L bracket.
- IP rating: IP67.
