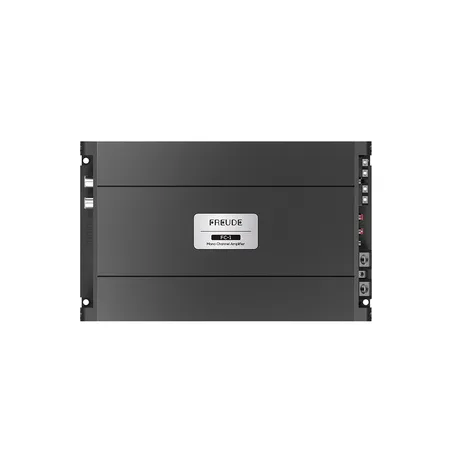

FC-1

Class D Mono Channel Amplifier

■ Closed-loop voltage stabilizer circuit design, stableand reliable
■ Class-D amplifier topology for high-efficiency operation
■ Ultra-high power, with a peak power of up to 600W
■ Supports high-level input, which can be directlyconnected to the car horn's output signal
■ Supports ACC control device activation, enjoy smoothmusic with one touch
■ Aluminum casing, plug and play, easy to install
■ Comprehensive protection features for safety and stability

Model:	FC-1
Type:	Class D Mono Channels Amplifier
Max Power @ 4Ω:	600 W
Nom Power @ 4Ω:	300 W
Freq. Resp. Range (-3db):	25 Hz - 250 Hz
Low-pass Adjustment Range:	50 Hz - 250 Hz
Signal Noise Ratio:	108 dB
Input Impedance:	22K Ω
Input Sensitivity:	0.6 V - 2 V
Degree Of Loss Of Truth:	≤0.02%
Power Supply Voltage Range:	11 - 15 VDC
Weight:	1.25 kg
Dimensions (LxWxH;mm):	206 x 126 x 49.5
