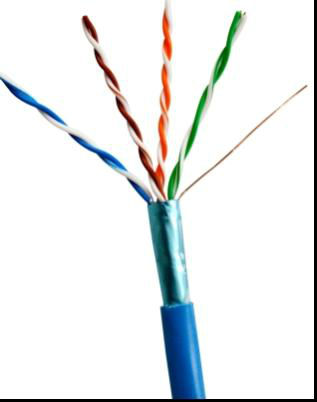

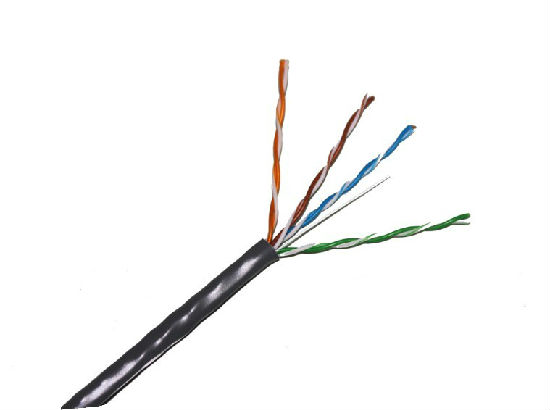

Cat 5E SFTP LAN Cable
Share this page
Model No.:
ID-CA5EF-PVC/LSZH
Brand:
IDEX
Colour:
Black, Orange, White, Grey
Size:
42 x 42 x 30
Port:
Shenzhen, China
Type of Payment:
T/T in advance
Minimum Order Quantity:
200 box(es)
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description

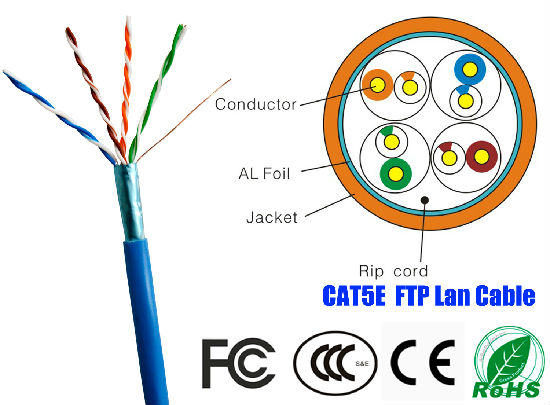

  • Conductor :Solid bare copper/CCS/CCA
  • AWG :23/24
  • Conductor Diameter (mm) :0.52
  • Insulation :F Foam PE/solid PE
  • Average thickness(±0.03 mm) :0.25
  • Min point thickness :0.22
  • Insulation Dia(±0.03 mm) :1.00
  • Twisting lay length(mm) :30 undemeath
  • Twisting lay length(mm) :200 undemeath
  • Jacket :PVC/LSZH
  • Average thickness :0.5
  • Min point thickness :0.46
  • Outer Dia(±1.00 mm) :5.1
  • Rip cord :Yes
  • Weight Nom(kg/km) : 43
  • Packing: Neutral packing/Logo packing
  • Packing ways: 305m/100m
  • Packing style: Wooden roller/Carton
  • Core color:
      Pair 1 :Blue-White/blue
      Pair 2 :Orange-White/orange
      Pair 3 :Green-White/orange
      Pair 4 :Brown- White/brown
