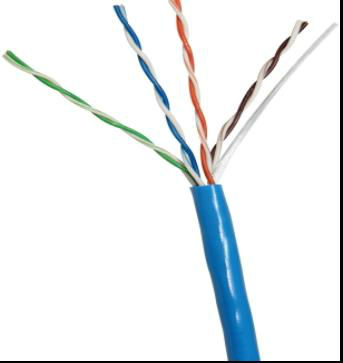

Cat 5E UTP LAN Cable
Model No.:
ID-CA5EU-PVC/LSZH-002-(Mar-4)-1
Brand:
IDEX
Colour:
Black, Orange, White, Grey
Size:
42 x 42 x 30
Port:
Shenzhen, China
Type of Payment:
T/T in advance, Western Union, L/C at sight
Minimum Order Quantity:
200 box(es)
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description

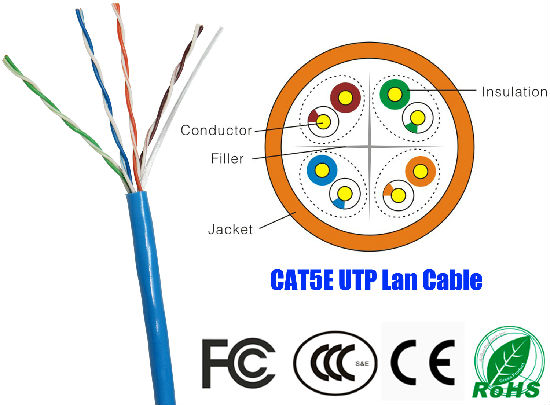

- Conductor :Solid bare Copper/CCS/CCA
- AWG :23/24
- Conductor Diameter (mm) :0.50
- Insulation :Foam PE/solid PE
- Average thickness(±0.03 mm) :0.20
- Min point thickness :0.17
- Insulation Dia(±0.03 mm) :0.91
- Twisting lay length(mm) :30 undemeath
- Twisting lay length(mm) :200 undemeath
- Jacket :PVC/LSZH
- Average thickness :0.5
- Min point thickness :0.43
- Outer Dia(±1.00 mm) :5.1
- Rip cord :Yes
- Weight Nom(kg/km) : 32
- Packing: Neutral packing/Logo packing
- Packing ways: 305m/100m
- Packing style: Wooden roller/Carton
- Core color:
Pair 2 :Orange-White/orange
Pair 3 :Green-White/orange
Pair 4 :Brown- White/brown
- Main Export Markets:Eastern Europe,North America,Mid East/Africa,,Central/South America,Asia,Western Europe,Australasia
