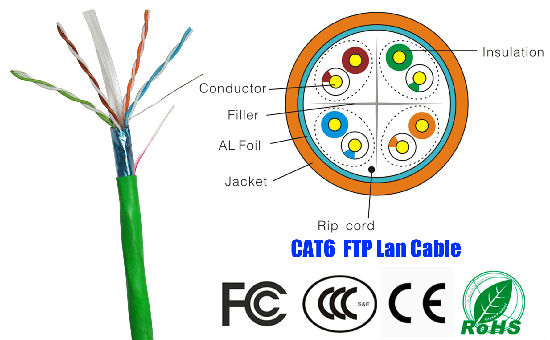

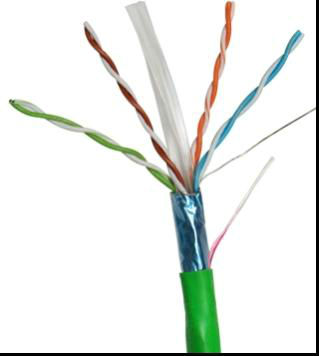

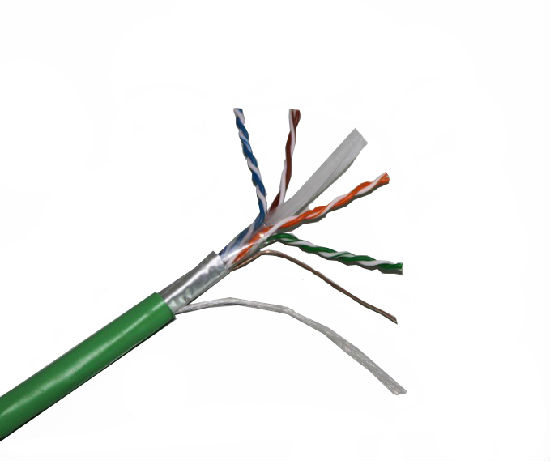

Cat 6 FTP LAN Cable
Model No.:
ID-CA6F-PVC/LSZH
Brand:
IDEX
Colour:
Black, Red, Yellow, Grey, Orange
Size:
42 x 42 x 30
Port:
Shenzhen, China
Type of Payment:
T/T in advance
Minimum Order Quantity:
200 box(es)
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description
- Conductor :Solid bare Copper/CCS/CCA
- AWG :23/24
- Conductor Diameter (mm) :0.57
- Insulation : Foam PE/solid PE
- Average thickness(±0.03 mm) :0.24
- Min point thickness :0.24
- Insulation Dia(±0.03 mm) :1.00
- Twisting lay length(mm) :30 undemeath
- Twisting lay length(mm) :200 undemeath
- Jacket :PVC/LSZH
- Average thickness :0.5
- Min point thickness :0.46
- Outer Dia(±1.00 mm) :6.6
- Rip cord :Yes
- Weight Nom(kg/km) : 60
- Packing: Neutral packing/Logo packing
- Packing ways: 305m/100m
- Packing style: Wooden roller/Carton
- Core color:
Pair 2 :Orange-White/orange
Pair 3 :Green-White/orange
Pair 4 :Brown- White/brown
